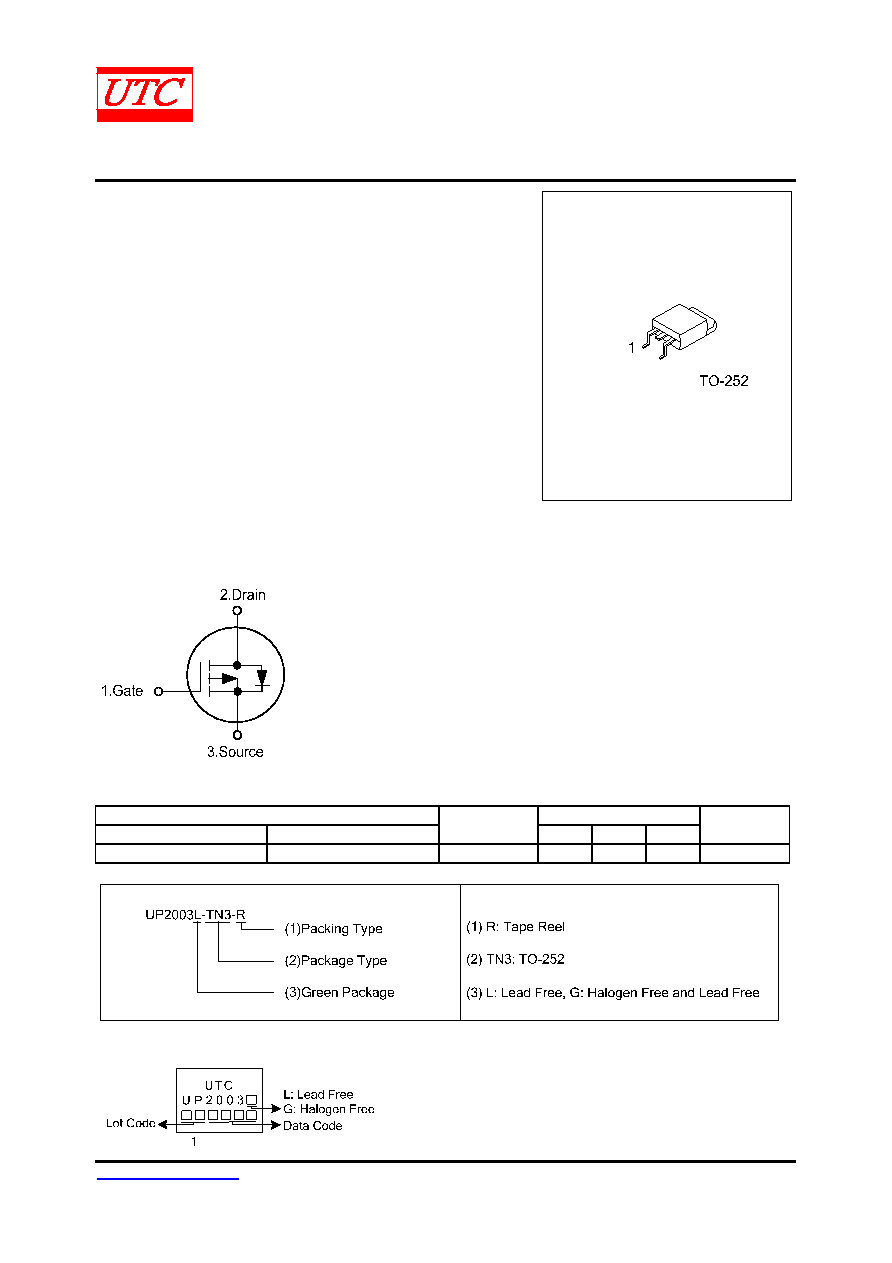

UNISONIC TECHNOLOGIES CO., LTD

UP2003

Power MOSFET

www.unisonic.com.tw

1 of 5

QW-R502-202.C

9A, 25V P-CHANNEL LOGIC

LEVEL ENHANCEMENT MODE

FIELD EFFECT TRANSISTOR



DESCRIPTION

The UP2003 uses advanced trench technology to provide

excellent RDS(ON), low gate charge and operation with low gate

voltages. This device is suitable for use as a load switch or in PWM

applications.



FEATURES

* RDS(ON)<35 mΩ @ VGS =-4.5 V, ID =-7 A

* RDS(ON)<20 mΩ @ VGS =-10 V, ID =-9 A



SYMBOL



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

UP2003L-TN3-R

UP2003G-TN3-R

TO-252

G

D

S

Tape Reel



MARKING
