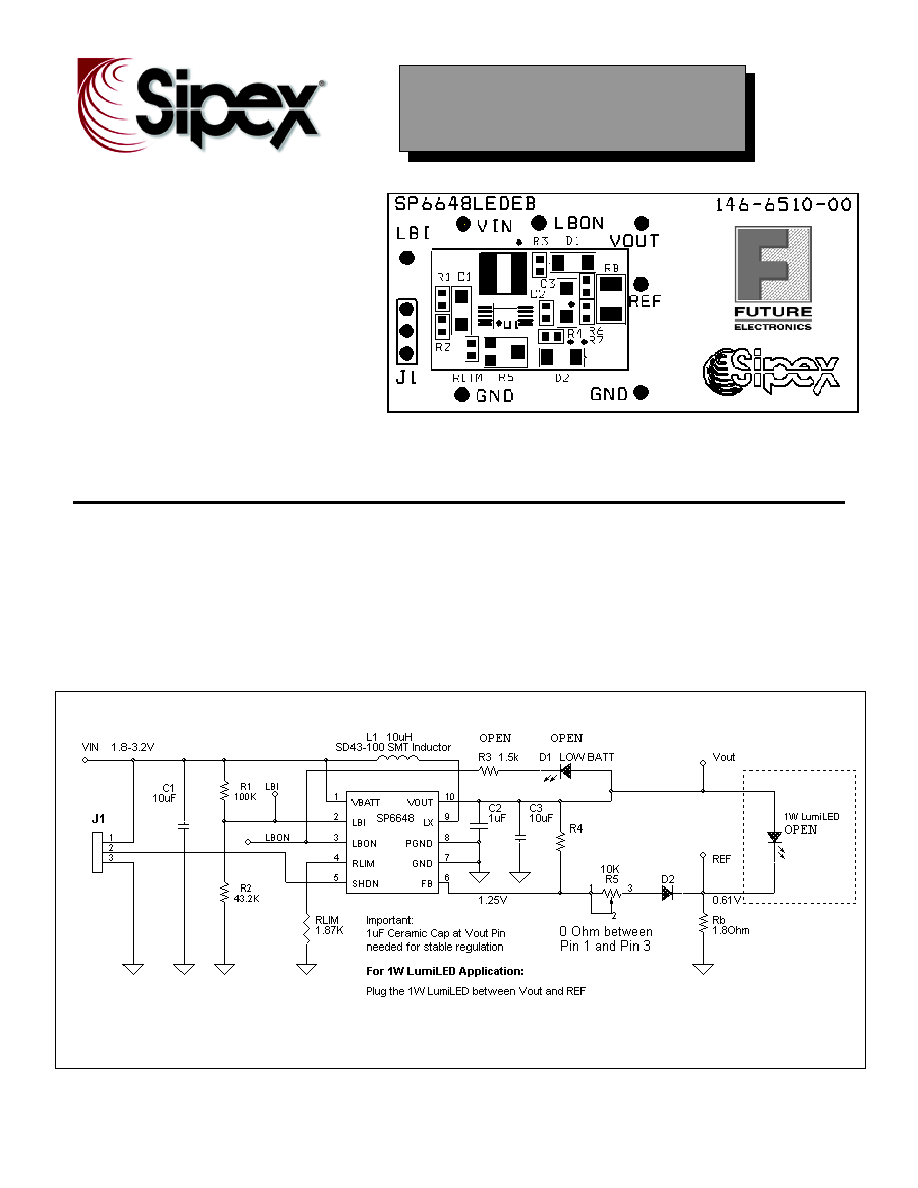

DESCRIPTION AND BOARD SCHEMATIC

The SP6648LED Evaluation Board is designed to help the user evaluate the performance of

the SP6648 for use as a dual cell input to drive a 1W LumiLED. The evaluation board is a

completely assembled and tested surface mount board which provides easy probe access

points to all SP6648 inputs and outputs so that the user can quickly connect and measure

electrical characteristics and waveforms.

Easy evaluation for SP6648

performance of driving 1W

LumiLED.

Plug & Light ON

Self Protection

Programmable Inductor Peak

Current

High Efficiency: up to 94%

µSOIC Package & SMT

components for small, low profile

Power Supply

SP6648LED

Evaluation Board Manual
