VLB7050 Type

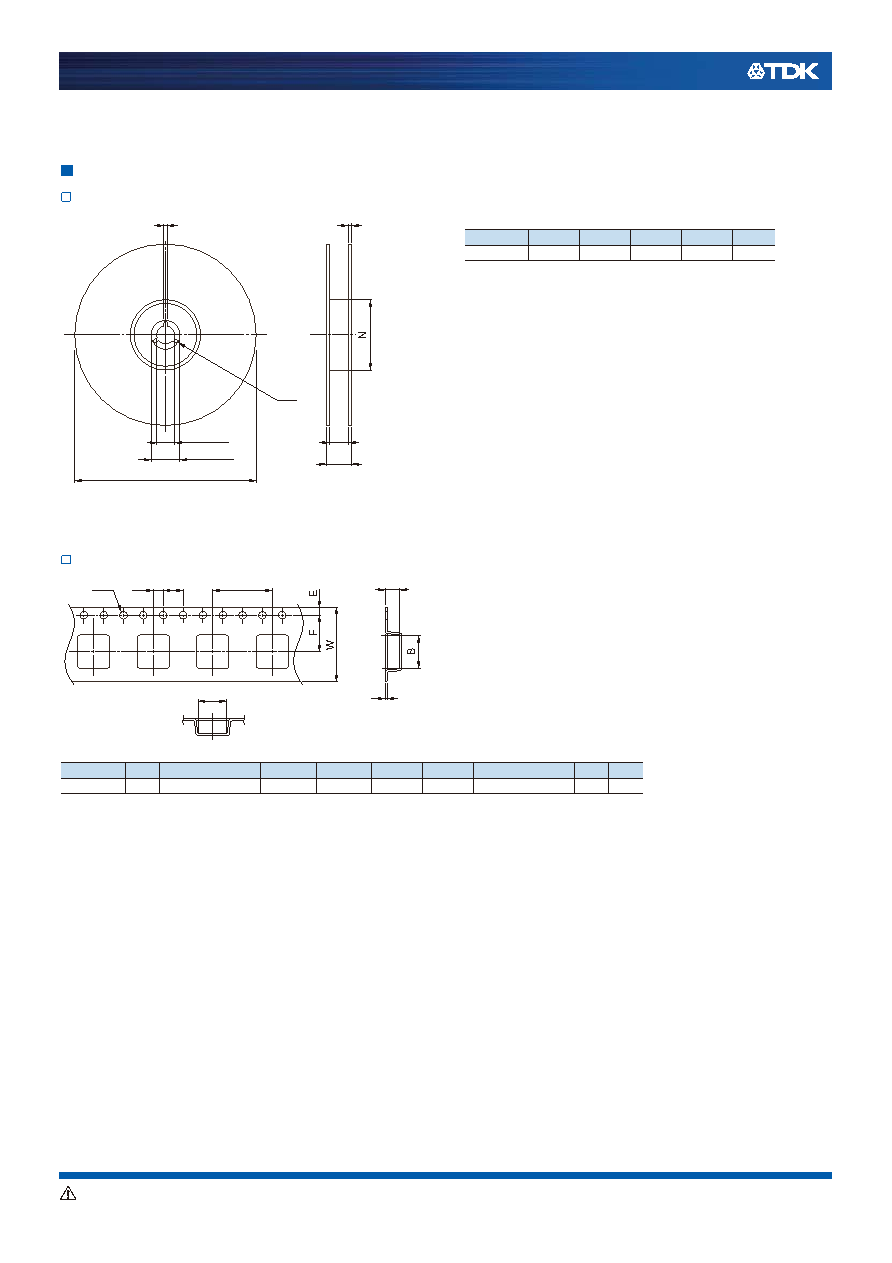

PACKAGING STYLE

REEL DIMENSIONS

* These values are typical values.

TAPE DIMENSIONS

Type

A

W1

W2

N

E

VLB7050

ø330

16.4

22.4

ø100

2

ø13.0

±0.5

ø21.0

±0.8

2.0

±0.5

A

(1.0)

Dimensions in mm

E

W2

W1

P0

P2

øD0

P1

A

t

K

Dimensions in mm

Type

A

B

øD0

E

F

P0

P1

P2

W

K

t

VLB7050

7.3

8.1

1.5+0.1/-1

1.75±0.1

7.5±0.1

4.0±0.1 12.0±0.1 2.0±0.1 16.0±0.3

5.5

0.4
