LightKey

SPEC NO: DS10121755

REV: A.4

CHECKED: Emily Zhou

APPROVED: M.H. Lin

PAGE: 1/3

HTTP://WWW.DISPLAY-LEDS.COM

TEL: 0086-574-86322282

DATE: Jul/20/2011

Datasheet of 4.00 inch Single Digit 7 Segment LED Display

LD40011C/D Series – 4.00 inch Single Digit 7 Segment LED Display

ATTENTION

OBSERVE PRECAUTIONS

FOR HANDLING

ELECTROSTATIC

DISCHARGE

SENSITIVE

DEVICES

Features

101.60 mm (4.00 inch) digit high

Excellent digit appearance

Wide viewing angle

Range of emitted colors

I.C. compatible

Low power consumption

White segment, black face

Available options

Alternative emitting luminosity:

Standard or high brightness version

Alternative emitted color

Alternative face and segment color

Alternative font

Both CA and CC versions are available

Cropped terminal pins

RoHS compliant

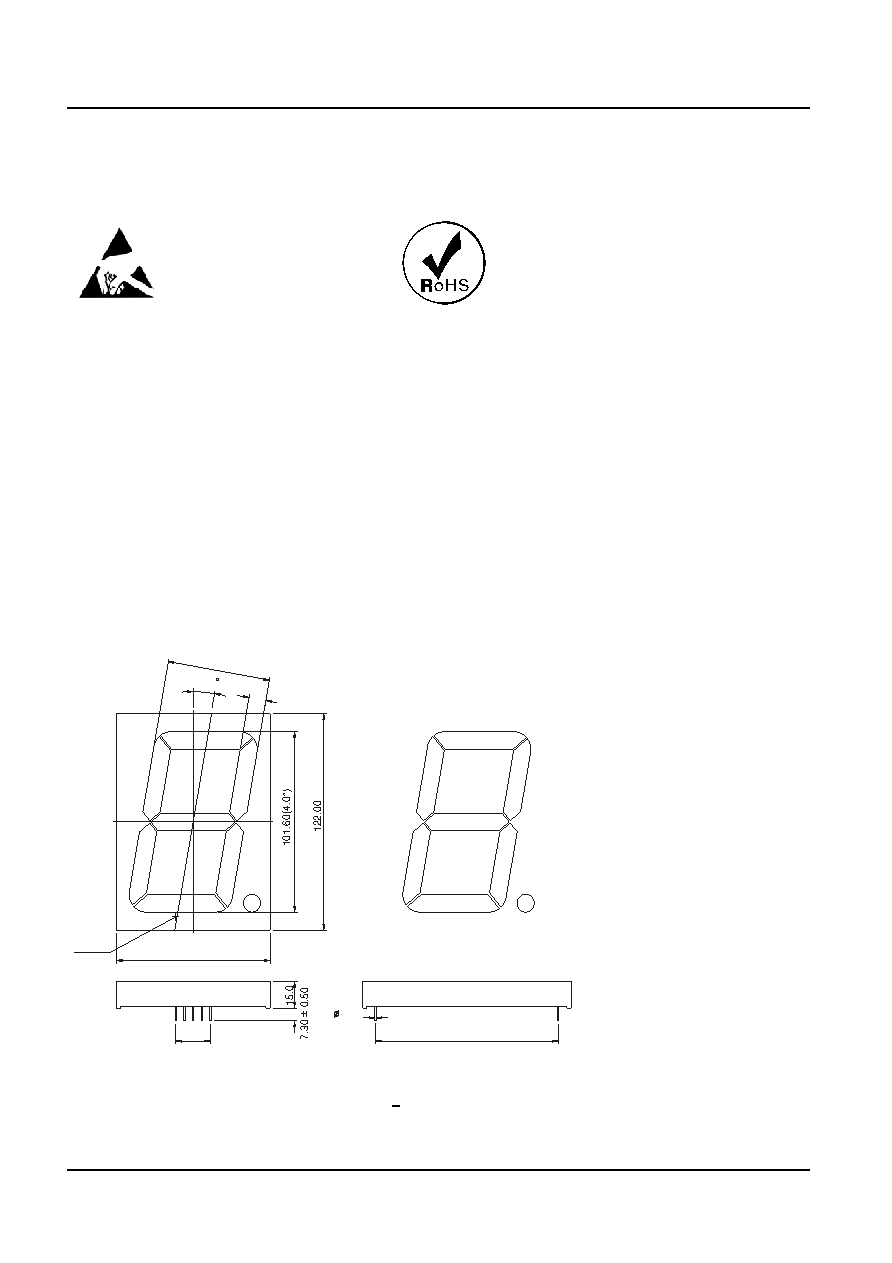

Package Dimensions

60.00

E

C

107.00

5.08*4=20.32

0.80

90.00

PIN 1

DP

D

10.00

G

B

F

A

10.0

Notes:

1. All dimensions are in millimeters (inches), Tolerance is + 0.25mm(0.01inch)unless other wise noted.

2. Specifications are subject to change without notice.

3. The gap between the reflector and PCB shall not exceed 0.25mm.
