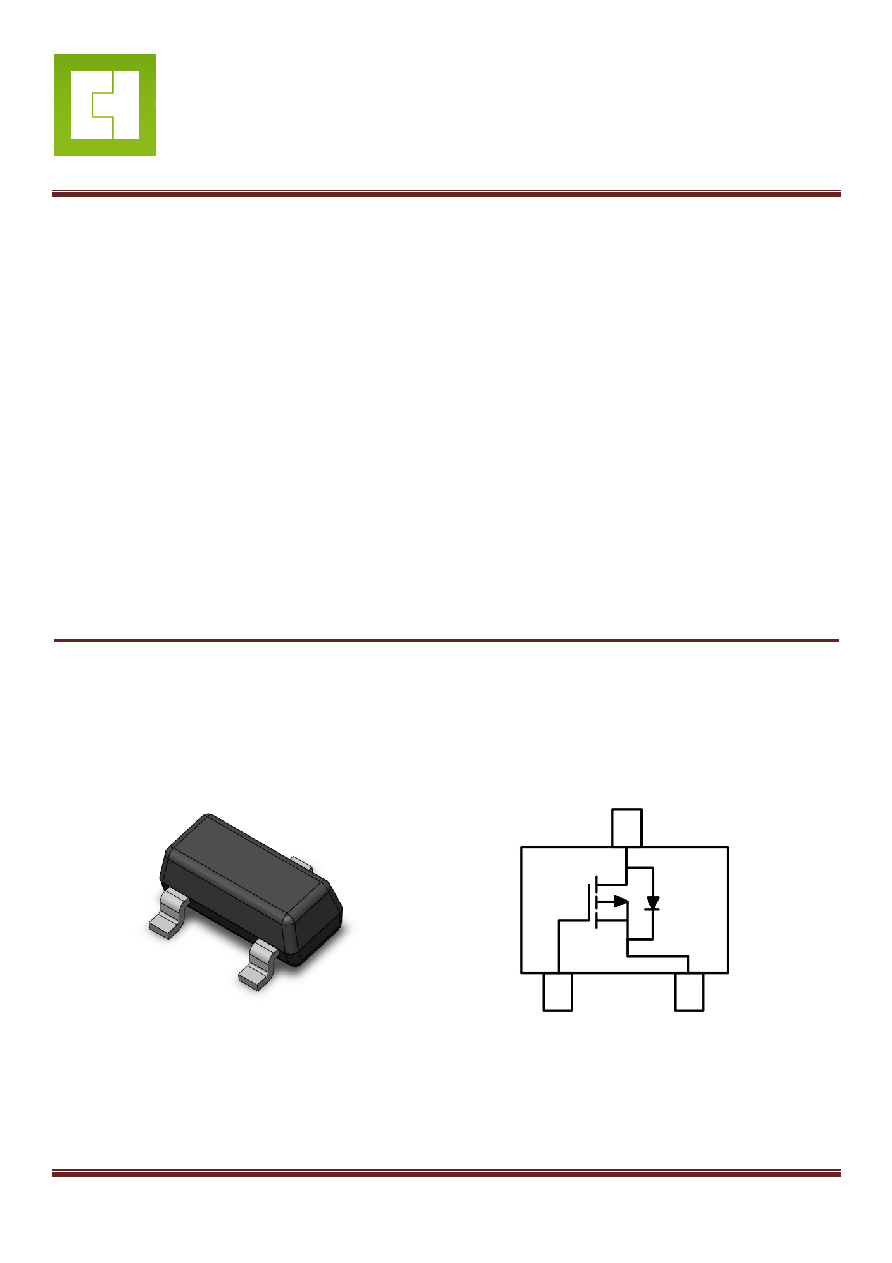

CT3401A-R3
P-Channel Enhancement MOSFET
Package Outline
Schematic
Features
• Drain-Source Breakdown Voltage VDSS - 30 V
• Drain-Source On-Resistance
RDS(ON) 33m
Ω, at VGS= - 10V, IDS= - 4.2A
RDS(ON) 38m
Ω, at VGS= - 4.5V, IDS= - 4.0A
RDS(ON) 51m
Ω, at VGS= - 2.5V, IDS= - 1.0A
• Continuous Drain Current at TA=25℃ ID = - 4.2A
• Advanced high cell density Trench Technology
• RoHS Compliance & Halogen Free
Applications
• Power Management
• LCD Display inverter
• Load Switch
Description
The CT3401A-R3 uses high performance Trench
Technology to provide excellent RDS(ON) and low gate
charge which is suitable for low voltage
application.
Gate
Source
Drain
Gate
Drain
Source
