FRN-R-75 datasheet(1/4 Pages) COOPER

部品番号	FRN-R-75

部品情報	Fusetron??FRN-R Class RK5 250Vac, 125/250Vdc 70-600A, dual element, time-delay fuses

PDF	4 Pages

Scroll/Zoom	100%

メーカー	COOPER [Cooper Bussmann, Inc.]

ホームページ	http://www.cooperbussmann.com

Logo

1 / 4 page

Technical Data1010

Effective February 2016

Supersedes July 2013

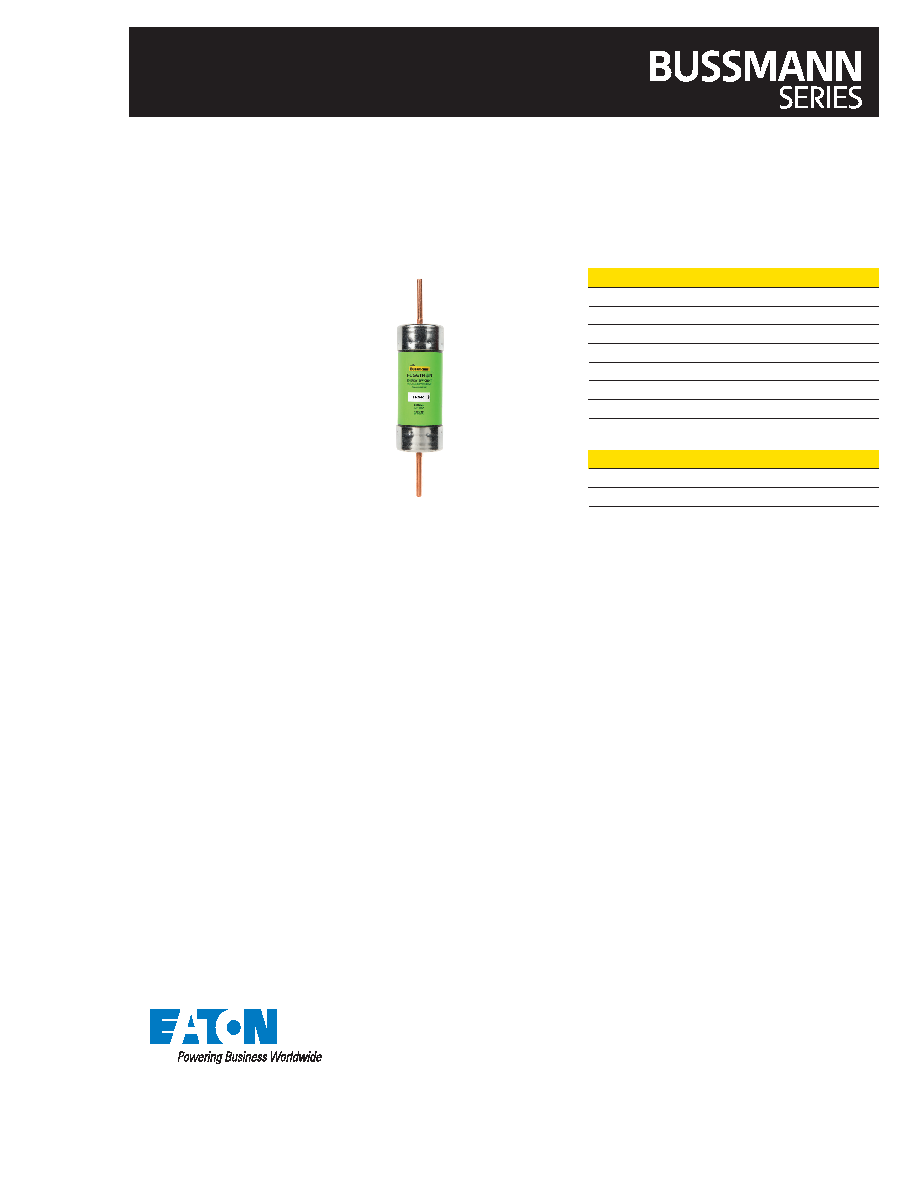

Fusetron™ FRN-R Class RK5 250Vac, 125/250Vdc

70-600A, dual element, time-delay fuses

Catalog symbols:

• FRN-R-_

Description:

Eaton Bussmann® series advanced protection,

energy efficient FRN-R Class RK5 dual element,

current-limiting, time-delay fuses. Time-delay – 10

seconds (minimum) at 500% of rated current.

Specifications:

Ratings

• Volts

• 250Vac

• 125Vdc (110-200A)

• 250Vdc (225-600A)

• Amps 70-600A

• Interrupting rating

• 200kA Vac RMS Sym.

• 20kA Vdc

Agency information

• UL Listed, Std. 248-12, Class RK5,

Guide JDDZ, File E4273

• CSA Certified, C22.2 No. 248.12,

Class 1422-02, File 53787

• CE

Catalog numbers (amps)

FRN-R-70

FRN-R-125

FRN-R-350

FRN-R-75

FRN-R-150

FRN-R-400

FRN-R-80

FRN-R-175

FRN-R-450

FRN-R-85

FRN-R-200

FRN-R-500

FRN-R-90

FRN-R-225

FRN-R-600

FRN-R-100

FRN-R-250

FRN-R-110

FRN-R-300

Carton Quantity:

Amp rating

Carton qty.

70 – 100

5

110 – 600

1

Features:

• Provides motor overload, ground fault and

short-circuit protection

• Helps protect motors against burnout from

overloads and single-phasing when sized

properly

• Simplifies and improves blackout prevention

(selective coordination)

• Dual-element fuses can be applied in circuits

subject to temporary motor overloads and surge

currents to provide both high performance

short-circuit and overload protection

• The overload element provides protection

against low level overcurrent of overloads and

will hold on inrush current which is five times

greater than the amp rating of the fuse for a

minimum of ten seconds
