2

Note1:Cable type connector measurements.

With SMA conversion adapters mated with W.FL plug

at each end of the 100cm long ultra-fine coaxial cable.

Note2:Board type connector measurements.

Mounted on a 50 ohms glass epoxy board.

Measurements were conducted with SMA conversion

adapters attached.

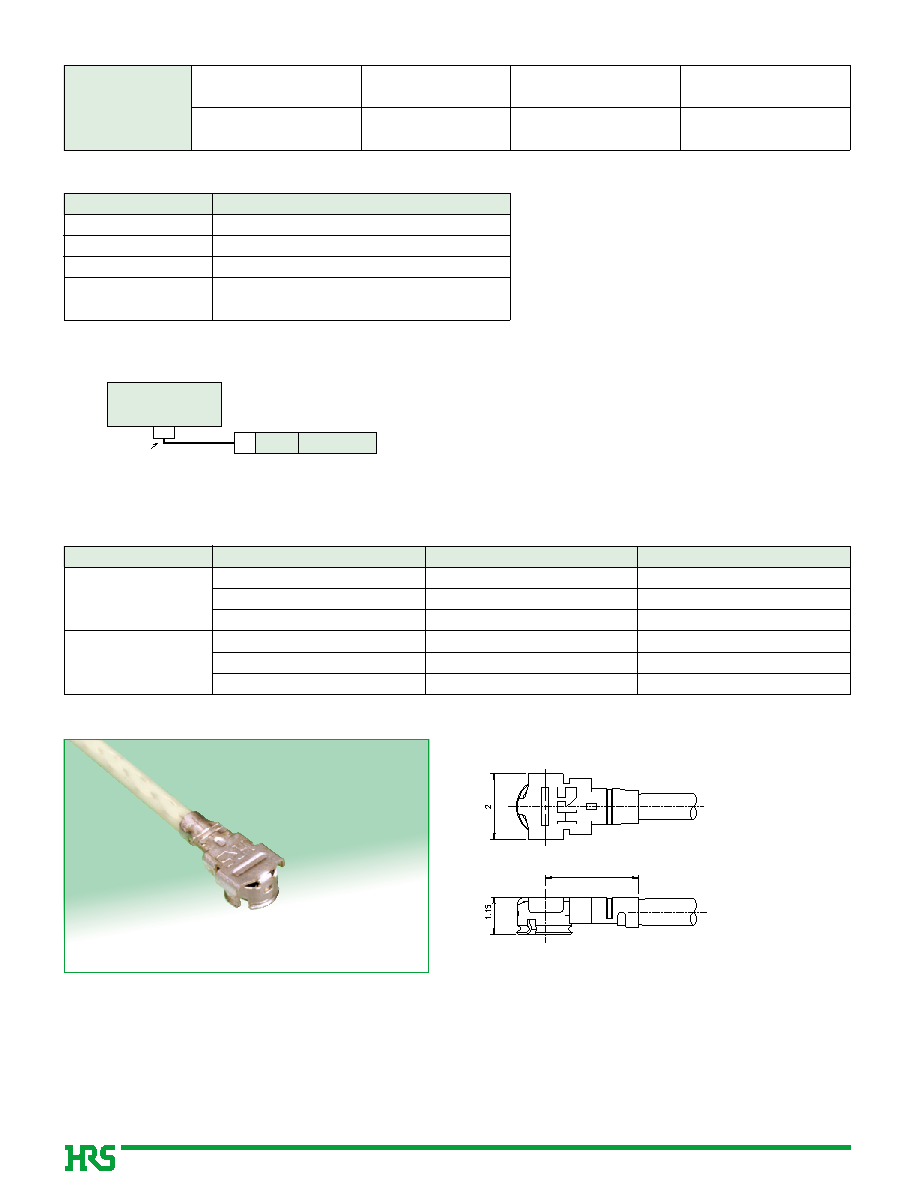

Note:V.S.W.R. Measurement System

sPlug

Plugs can be ordered only terminated to the cable.

2.85

Network Analyzer

Test Set

Test Port

Termination

D.U.T

Test Port Cable

Ratings

Nominal characteristic

impedance

Frequency range

50 ohms

DC to 6GHz

Operating temperature range

Operating humidity

-40ç to +90ç

(Relative humidity 90% max.)

-40ç to +70ç

(Relative humidity 90% max.)

sProduct Specifications

sMaterials and Finishes

1. Contact resistance

2. Insulation resistance

3. Withstanding voltage

4. V.S.W.R.(Note)

Center: 20m ohms max. Outside: 10m ohms max.

500M ohms min., 100V DC

200V AC / 1 minute

1.3 max. (Up to 3GHz)

1.35 max. (3 to 6GHz)

Item

Specification

sMaterial/Finishes

Plug

Receptacle

Shell

Insulator

Socket center contact

Shell

Insulator

Pin center contact

Phosphor bronze

PBT

Phosphor bronze

Phosphor bronze

LCP

Brass

Silver plated

Black, UL94V-0

Gold plated

Silver plated

Black, UL94V-0

Gold plated

Part

Component

Material

Finish/Remarks

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.
