UESD4CUSB30G-AF5-R datasheet(1/4 Pages) UTC

1 / 4 page

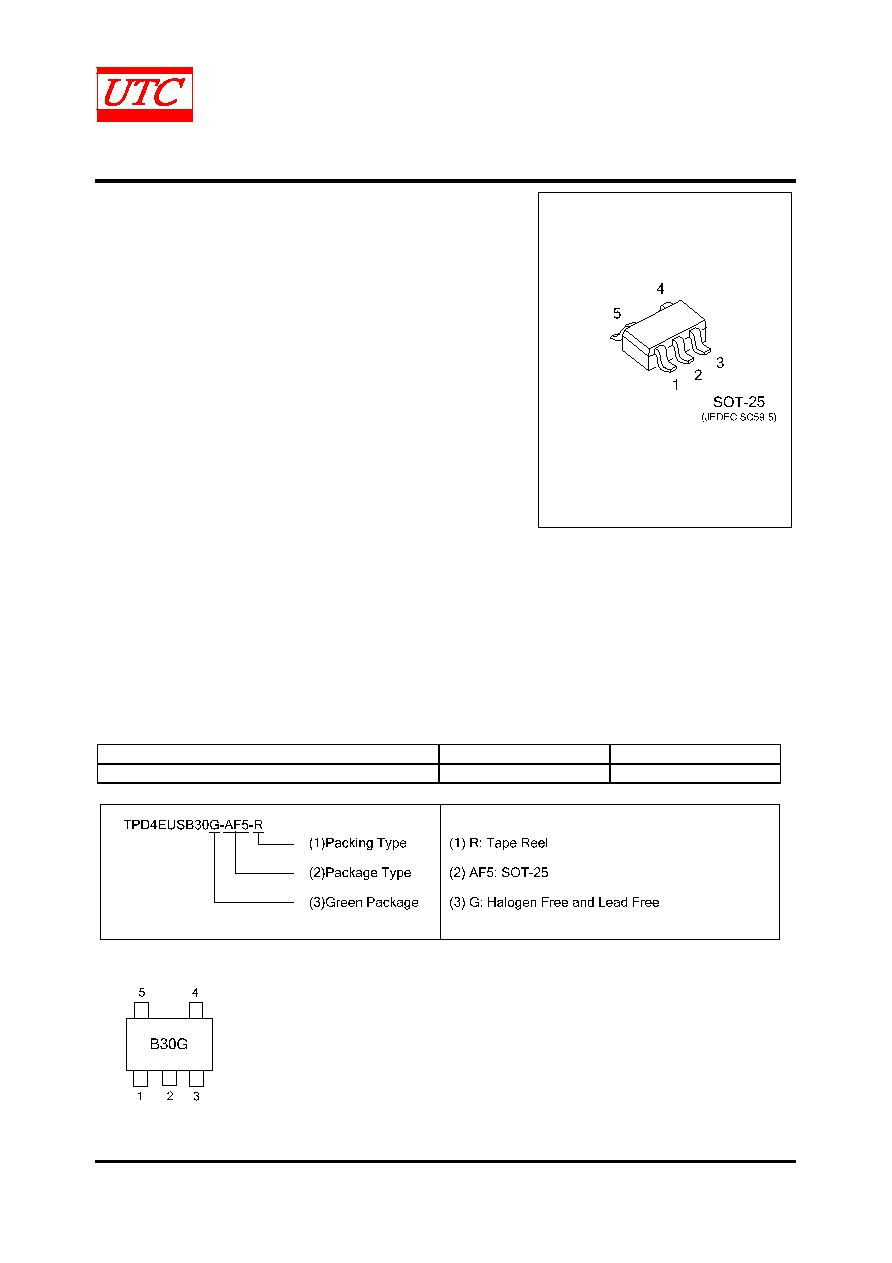

UNISONIC TECHNOLOGIES CO., LTD

UESD4CUSB30

Preliminary

TVS

www.unisonic.com.tw

1 of 4

QW-R223-027.a

4-CHANNEL ESD

PROTECTION FOR

SUPER-SPEED USB 3.0

INTERFACE



DESCRIPTION

The UTC UESD4CUSB30 is 4 channel Transient Voltage

Suppressor (TVS) based Electrostatic Discharge (ESD) protection

diode arrays. The UTC UESD4CUSB30 device is rated to

dissipate ESD strikes at the maximum level specified in the IEC

61000-4-2 international standard (Contact). These devices also

offer 5A (8/20μs) peak pulse current ratings per IEC 61000-4-5

(Surge) specification.



FEATURES

* Supports USB 3.0 Data Rates (5 Gbps)

* Low Capacitance

* IEC 61000-4-2 ESD Protection (Level 4 Contact)

* IEC 61000-4-5 Surge Protection -5A (8/20µs)

* Dynamic Resistance: 0.6Ω (Typ)

* Flow-Through Pin Mapping



ORDERING INFORMATION

Ordering Number

Package

Packing

UESD4CUSB30G-AF5-R

SOT-25

Tape Reel



MARKING
