P9242-R Datasheet
© 2016 Integrated Device Technology, Inc
25
December 16, 2016

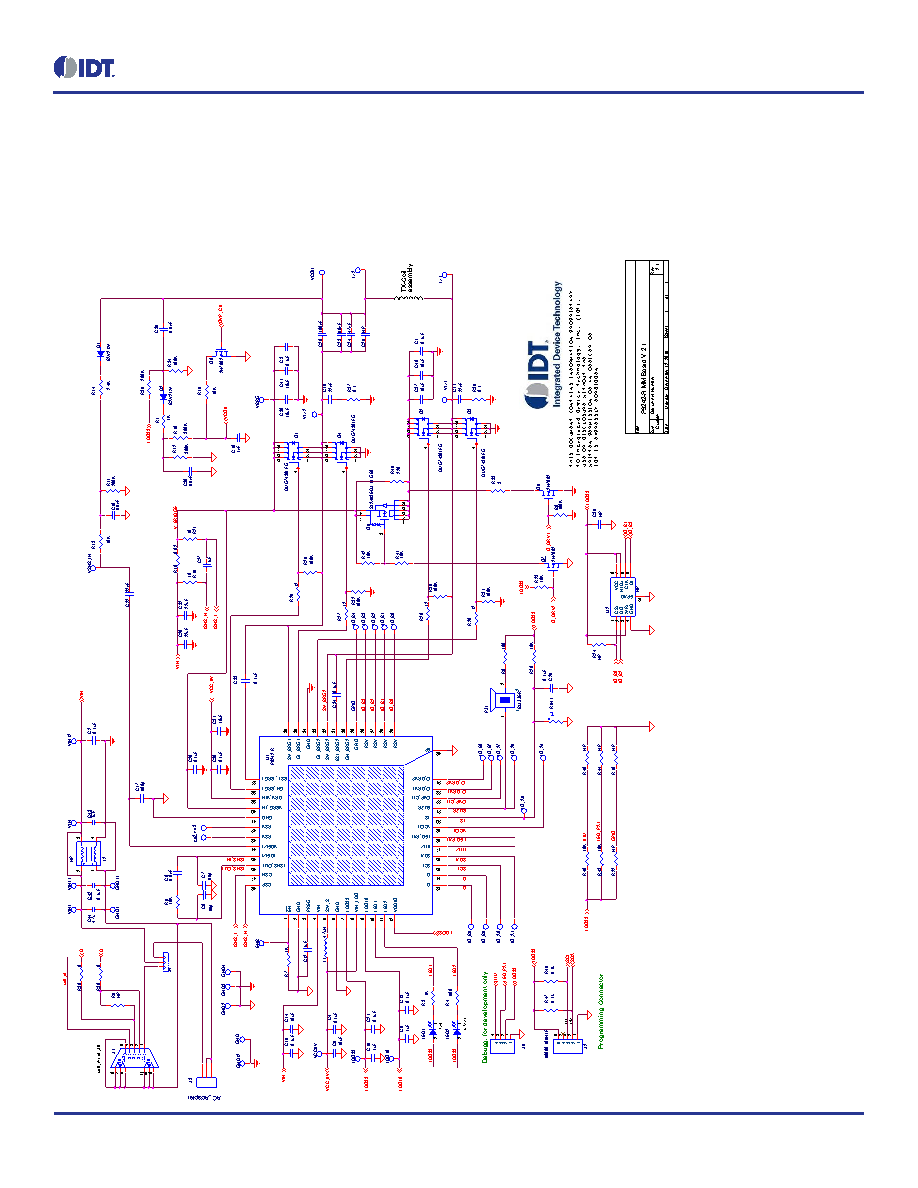

11.2 Typical Application Schematic
The typical application schematic provides a basic guideline to understanding and building a functional medium-power wireless power
transmitter type MP-A2 as described in the WPC specifications. Other components, not shown on the typical application schematic, might be
needed in order to comply with other requirements, such as EMC or thermal specifications.
Figure 24. P9242-R Typical Application Schematic
