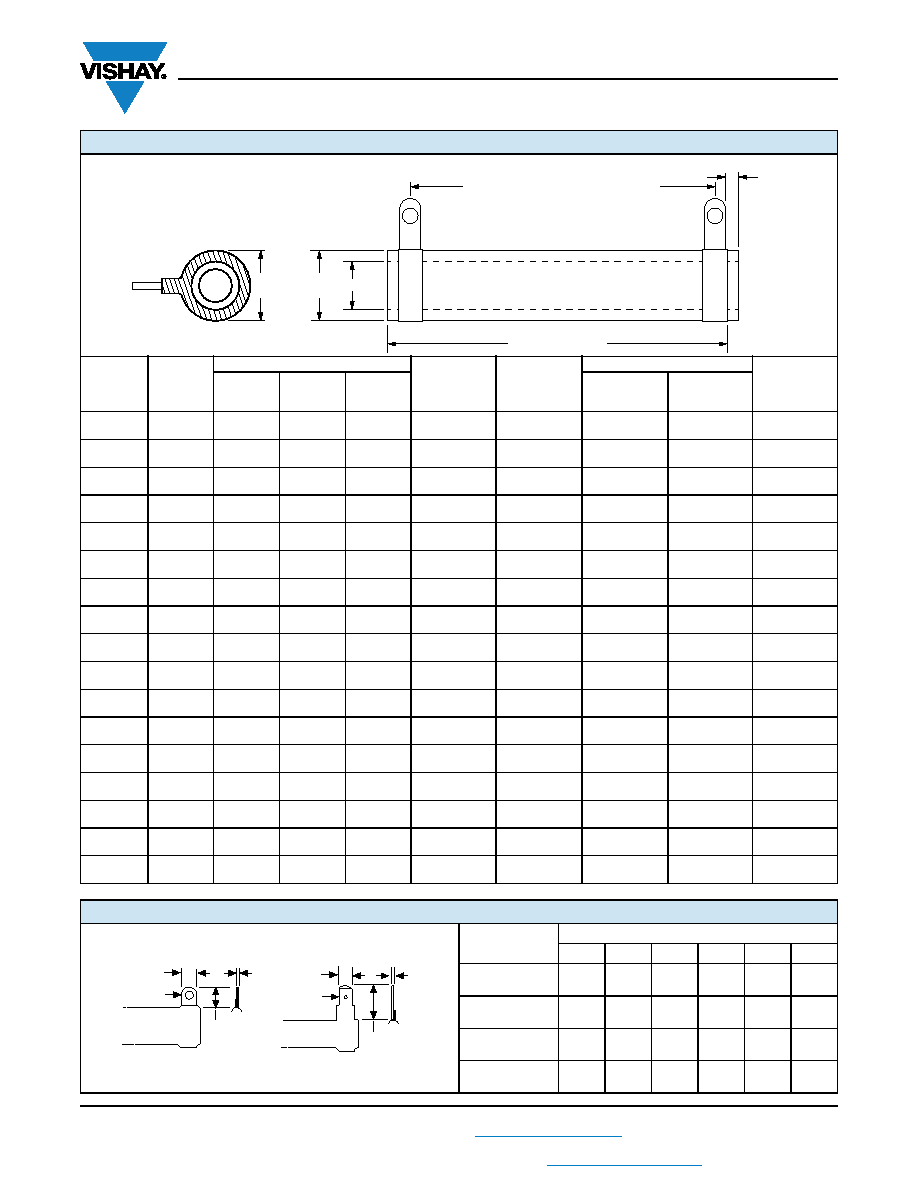

DIMENSIONS in inches (millimeters)

MODEL

A

(MAX.)

CORE DIMENSIONS

TERMINAL

SETBACK

± 0.031

(0.79)

DISTANCE

CENTER TO

CENTER

(REF.)

TERMINAL DESIGNATION

SLIDER

MODEL

NUMBER

LENGTH

O.D.

± 0.031

(0.79)

I.D.

± 0.031

(0.79)

STANDARD

OPTIONAL

(QUICK

CONNECT)

AVT010

0.406

(10.31)

1.750

(44.45)

0.313

(7.95)

0.188

(4.78)

0.094

(2.39)

1.375

(34.93)

05

14

70

AVT020

0.563

(14.30)

2.000

(50.8)

0.438

(11.13)

0.260

(6.60)

0.094

(2.39)

1.625

(41.28)

02

14

70

AVT20A

0.563

(14.30)

1.500

(38.10)

0.438

(11.11)

0.313

(7.94)

0.094

(2.38)

0.937

(23.80)

02

14

-

AVT025

0.668

(17.48)

2.000

(50.8)

0.563

(14.30)

0.313

(7.95)

0.094

(2.39)

1.562

(39.67)

06

15

71

AVT25A

0.906

(23.01)

2.000

(50.8)

0.750

(19.05)

0.500

(12.7)

0.094

(2.39)

1.562

(39.67)

06

15

72

AVT25B

0.770

(19.56)

2.000

(50.8)

0.625

(15.88)

0.453

(11.51)

0.094

(2.39)

1.562

(39.67)

06

15

71

AVT050

0.688

(17.48)

4.000

(101.6)

0.563

(14.30)

0.313

(7.95)

0.094

(2.39)

3.562

(90.47)

06

15

71

AVT50A

0.906

(23.01)

4.000

(101.6)

0.750

(19.05)

0.500

(12.70)

0.062

(1.57)

3.626

(92.10)

06

15

71

AVT50B

0.906

(23.01)

4.500

(114.3)

0.750

(19.05)

0.547

(13.89)

0.125

(3.18)

4.000

(101.60)

06

15

72

AVT075

0.688

(17.48)

6.000

(152.4)

0.563

(14.30)

0.313

(7.95)

0.094

(2.39)

5.562

(141.27)

06

15

71

AVT75A

0.906

(23.01)

6.000

(152.4)

0.750

(19.05)

0.500

(12.70)

0.094

(2.39)

5.562

(141.27)

06

15

72

AVT080

1.313

(33.34)

4.000

(101.6)

1.125

(28.58)

0.750

(19.05)

0.219

(5.56)

2.812

(71.42)

20

15

-

AVT100

0.906

(23.01)

6.500

(165.1)

0.750

(19.05)

0.500

(12.70)

0.125

(3.18)

6.000

(152.40)

06

15

72

AVT130

1.313

(33.35)

6.500

(165.1)

1.125

(28.58)

0.750

(19.05)

0.282

(7.16)

5.374

(136.50)

20

15

73

AVT160

1.313

(33.35)

8.500

(215.9)

1.125

(28.58)

0.750

(19.05)

0.267

(6.78)

7.404

(188.06)

20

15

73

AVT175

1.313

(33.34)

8.500

(215.9)

1.125

(28.58)

0.750

(19.05)

0.219

(5.56)

7.312

(185.72)

20

15

-

AVT200

AVT225

1.313

(33.35)

10.500

(266.7)

1.125

(28.58)

0.750

(19.05)

0.266

(6.76)

9.406

(238.91)

20

15

73

TERMINAL DIMENSIONS in inches (millimeters)

DIMENSIONS

TERMINAL STYLE

20

02

05

06

14

15

A

0.375

(9.53)

0.188

(4.76)

0.188

(4.76)

0.250

(6.35)

0.188

(4.76)

0.250

(6.35)

B

0.562

(14.27)

0.393

(9.98)

0.393

(9.98)

0.500

(12.70)

0.563

(14.29)

0.594

(15.08)

C (HOLE

DIAMETER)

0.204

(5.18)

0.133

(3.38)

0.133

(3.38)

0.172

(4.36)

0.050

(1.27)

0.065

(1.65)

D

0.020

(0.51)

0.020

(0.51)

0.020

(0.51)

0.020

(0.51)

0.020

(0.51)

0.031

(0.79)

A

O.D.

I.D.

LENGTH

TERMINAL SETBACK

DISTANCE CENTER TO CENTER

D

Styles 14 and 15

B

A

C

B

D

C

A

Style 05, 06,

and 20
