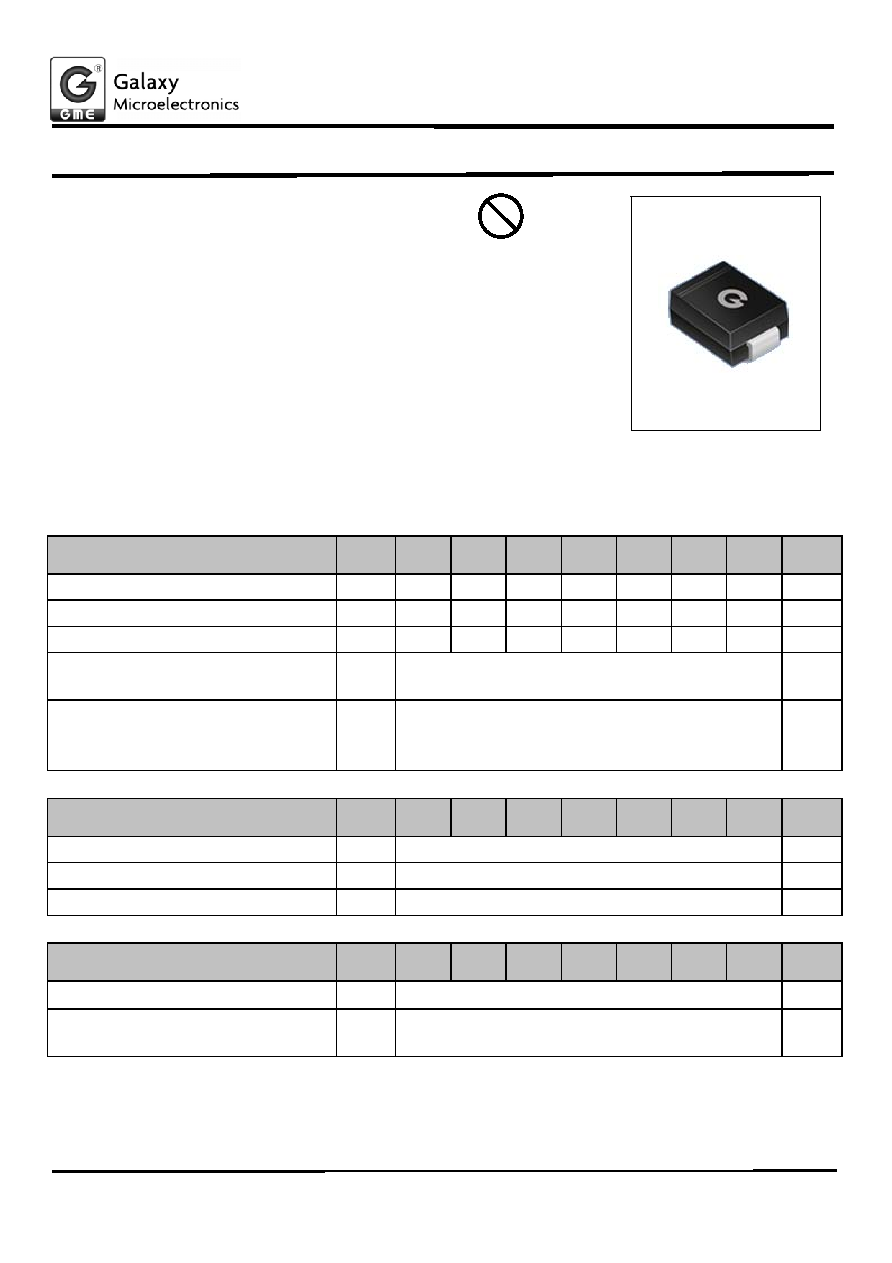

1 / 3 page

Production specification

SURFACEMOUNTRECTIFIERS

S3AB--S3MB

Document Number : SMB002AA

www.gmicroelec.com

1

FEATURES

Low profile package

For surface mounted applications

High current capability

Built-in strain relief, ideal for automated placement

Plastic package has Underwriters Laboratory Flammability Classification 94V-0

High temperature soldering: 250℃/10 seconds at terminals

MECHANICAL DATA

Case: JEDEC DO-214AA,molded plastic over passivated chip

Terminals: Solder Plated, solderable per MIL-STD- 750, Method 2026

Polarity: Color band denotes cathode end

Weight: 0.003 ounces, 0.093 gram

Maximum Ratings(@TA = 25°C unless otherwise specified)

Characteristic

Symbol

S3AB

S3BB

S3DB

S3GB

S3JB

S3KB

S3MB

UNITS

Maximum repetitive peak reverse voltage

VRRM

50

100

200

400

600

800

1000

V

Maximum RMS voltage

VRWS

35

70

140

280

420

560

700

V

Maximum DC blocking voltage

VDC

50

100

200

400

600

800

1000

V

Maximum average forward rectified current at

TL=90℃

IF(AV)

3.0

A

Peak forward surge current @ TL = 110°C

8.3mssingle half-sine-wave

superimposed on rated load(JEDEC Method)

IFSM

100

A

Thermal Characteristics

Characteristic

Symbol

S3AB

S3BB

S3DB

S3GB

S3JB

S3KB

S3MB

UNITS

Typical junction capacitance (NOTE 1)

CJ

35

p F

Typical thermal resistance (NOTE 2)

R θ JA

40

℃

/W

Operating junction and storage temperature range

TJ TSTG

-55--------+150

℃

Electrical Characteristics (@TA = 25°C unless otherwise specified)

Characteristic

Symbol

S3AB

S3BB

S3DB

S3GB

S3JB

S3KB

S3MB

UNITS

Maximum Instantaneous Forward Voltage at 3.0A

VF

1.15

V

Maximum DC reverse current TA=25℃

at rated DC blocking voltage TA=100℃

IR

10

100

μ A

NOTE: 1. Measured at 1.0MHz and applied reverse voltage of 4.0 Volts

2. Thermal resistance from junction to ambient and junction to lead P.C.B. mounted on 0.27''X0.27''(7.0X7.0mm2) copper pad areas

Pb

Lead-free
