ST7LITEUS2, ST7LITEUS5
Electrical characteristics
101/136

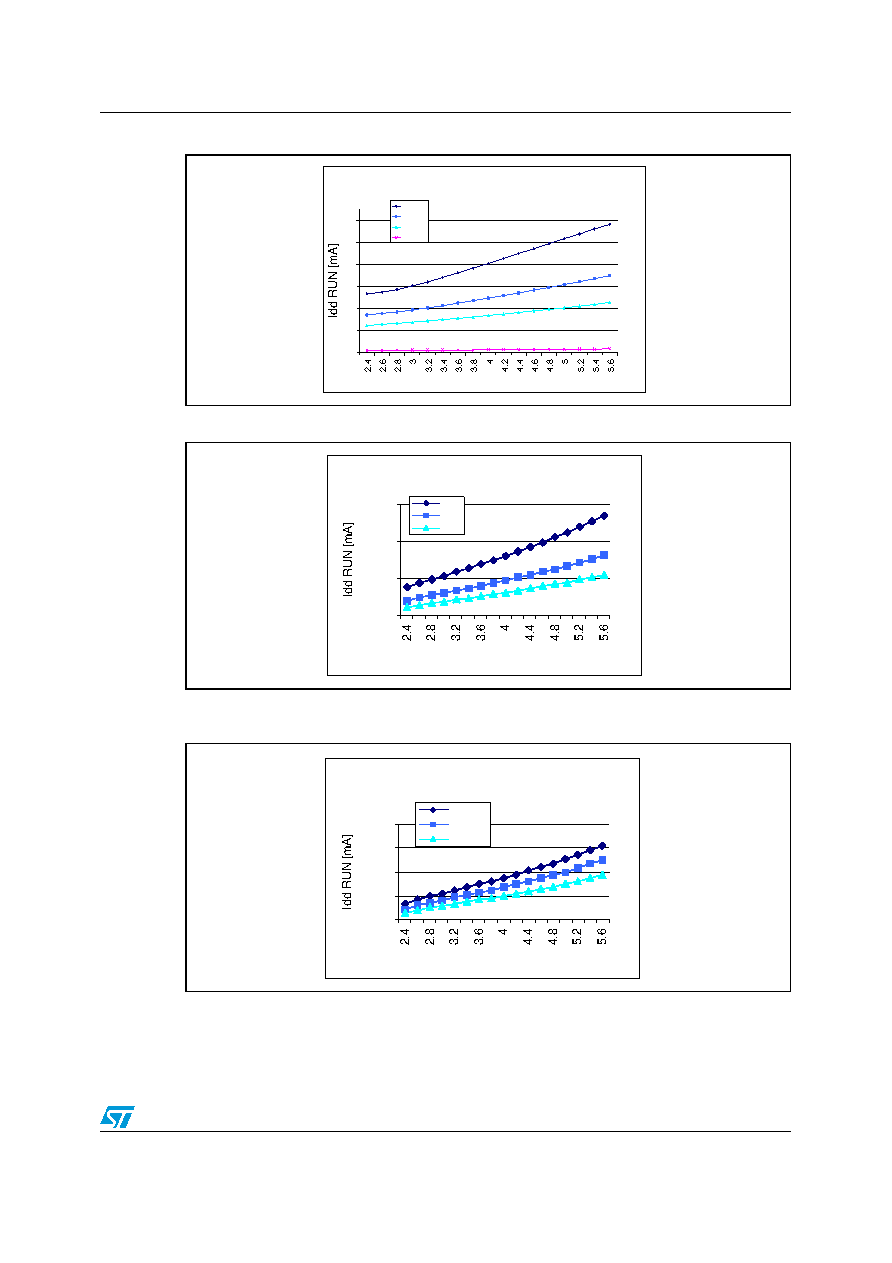

Figure 42.
Typical IDD in run mode vs. internal clock frequency and VDD
Figure 43.
Typical IDD in WFI mode vs. internal clock frequency and VDD
Figure 44.
Typical IDD in Slow, Slow-wait and Active-halt mode vs VDD & int
RC = 8 MHz
IddRUNmode@ambvs int clock freq
0.00
1.00
2.00
3.00
4.00
5.00
6.00
VDD[V]
RC8MHz
RC4MHz
RC2MHz
AWU
Idd WFI mode @amb vs int RC freq
0.700
1.200
1.700
2.200
VDD [V]
8 MHz
4 MHz
2 MHz
Idd slow, slowwait & acthalt mode,
int Rc 8Mhz@amb
0.700
0.900
1.100
1.300
1.500
VDD [V]
Slow
slowwait
acthlt
