13 / 18 page

DocID026040 Rev 1

13/18

CS30

Parameter definitions

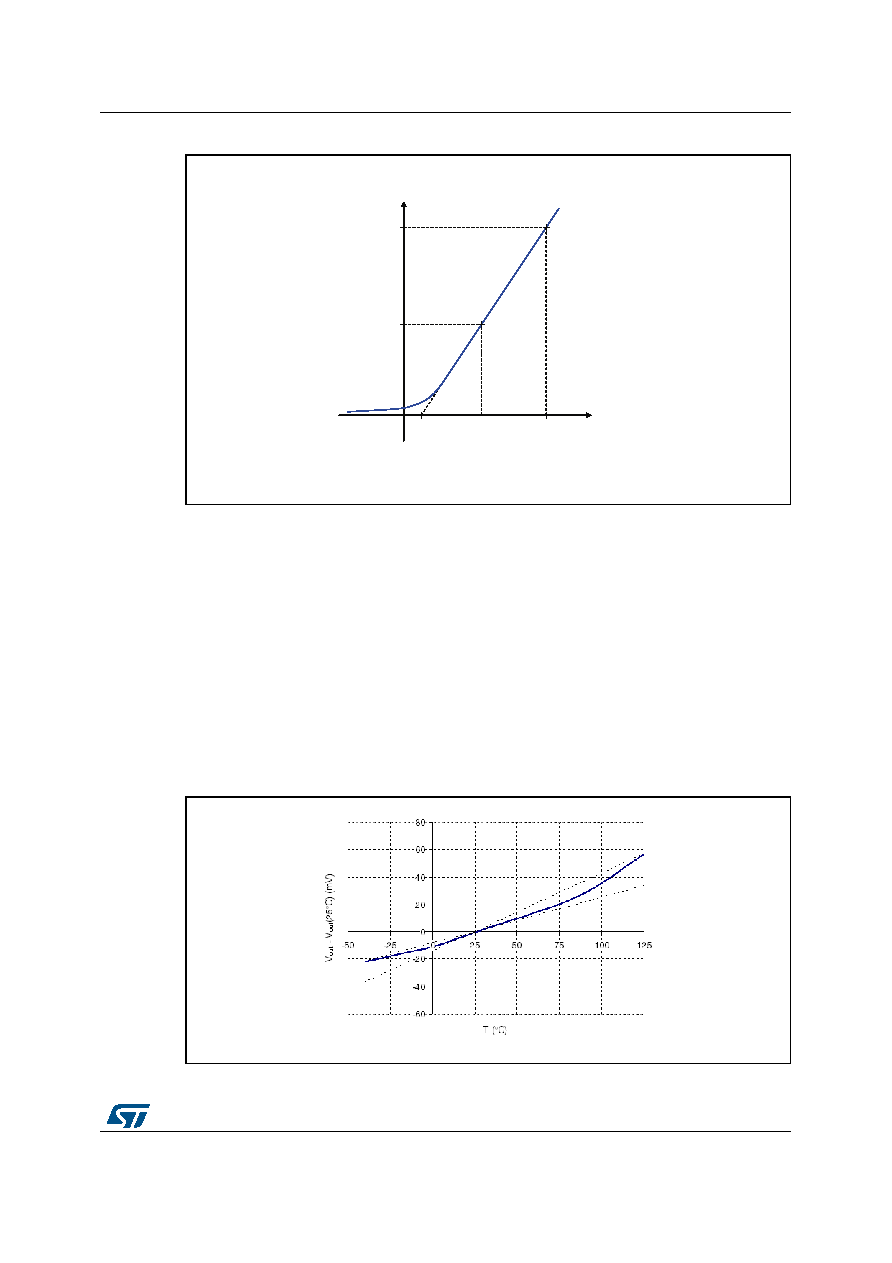

Figure 20. Vout versus Vsense characteristics: detail for low Vsense values

4.4

Output voltage drift versus temperature

The output voltage drift versus temperature is defined as the maximum variation of Vout with

respect to its value at 25°C, over the temperature range. It is calculated as follows:

with Tmin < Tamb < Tmax.

Figure 21 provides a graphical definition of output voltage drift versus temperature. On this

chart, Vout is always comprised in the area defined by dotted lines representing the

maximum and minimum variation of Vout versus T.

Figure 21. Output voltage drift versus temperature

ΔVout

ΔT

-----------------max

Vout Tamb

() Vout 25°C

()

–

Tamb 25°C

–

-------------------------------------------------------------------------
