CS70

Parameter definitions

5.4

Output voltage drift versus temperature

The output voltage drift versus temperature is defined as the maximum variation of Vout with

respect to its value at 25 °C over the temperature range. It is calculated as follows:

with Tmin < Tamb < Tmax.

Figure 18 provides a graphical definition of the output voltage drift versus temperature. On

this chart, Vout is always within the area defined by the maximum and minimum variation of

Vout versus T, and T = 25 °C is considered to be the reference.

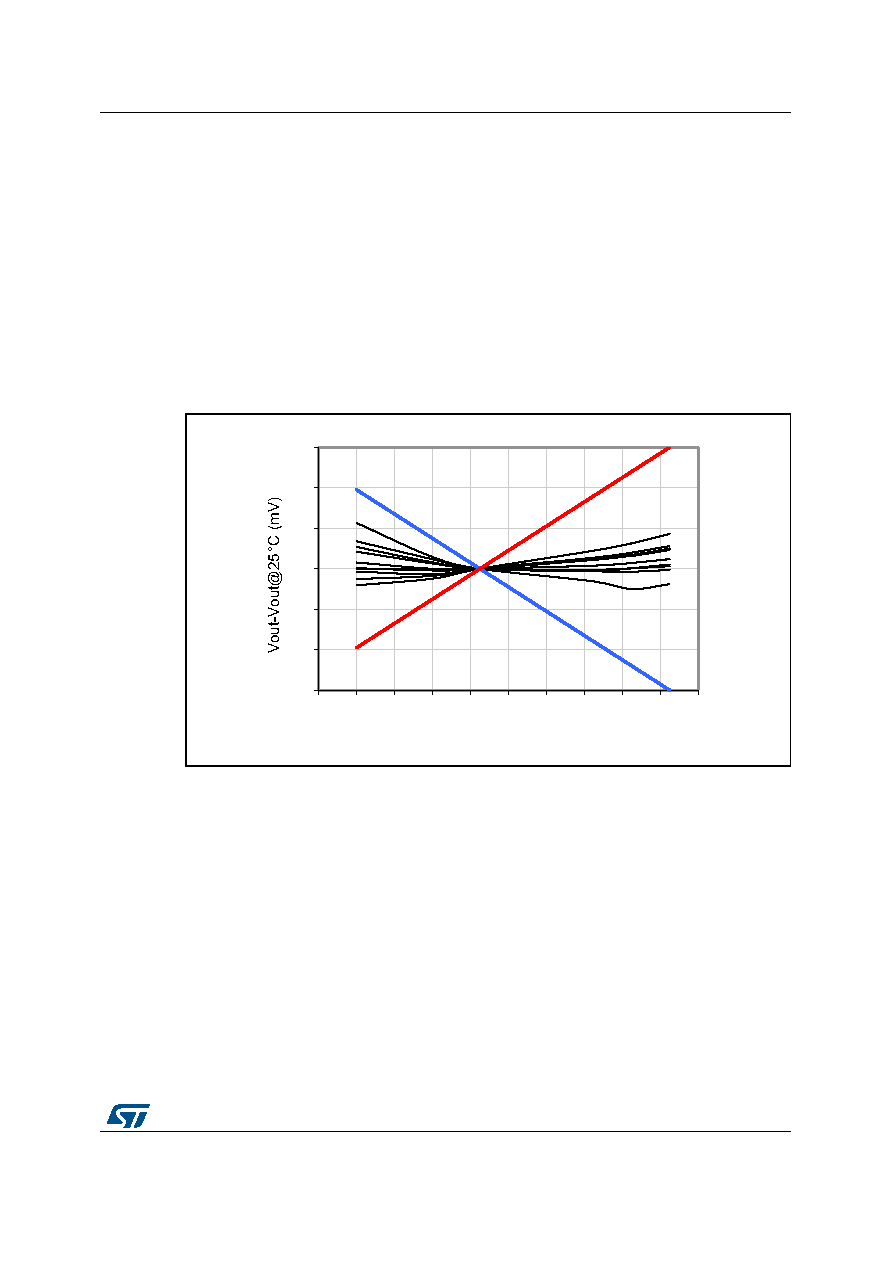

Figure 18. Output voltage drift versus temperature (Av = 50 V/V Vsense =50mV)

V

out

T

-----------------max

out

amb

 V

out

C



–

amb

C

–

-------------------------------------------------------------------------

-60

-40

-20

-60

-40

-20

100 120 140

T (°C)
