1 25/07/2016

ICPLW50L

ISOCOM

COMPONENTS

DC93196

DESCRIPTION

The ICPLW50L 1MBd digital optocoupler consists of a

high efficient AlGaAs Light Emitting Diode and a high

speed optical detector. The output of the optical

detector features an open collector Schottky clamped

transistor. The internal shield ensures high common

mode transient immunity.

The device is in Stretched SO6 package.

FEATURES

•

High speed – 1MBd typical

•

Stretched SO6 Package

•

Wide Operating Voltage Range

Vcc 2.7V to 24V

•

Low Drive Current 3mA

•

Package Clearance / Creepage 8mm

•

15kV/μs Minimum Common Mode Rejection

•

Guarantee Performance over

Temperature Range: -40°C to 105°C

•

TTL Compatible

•

Open collector output

•

Lead Free and RoHS Compliant

•

Safety Approvals Pending

APPLICATIONS

•

Digital Signal Isolation

•

Communications Interface

•

Micro-controller Interface

•

Digital Isolation for A/D, D/A Conversion

•

Switching Power Supplies

ORDER INFORMATION

•

Supplied in Tape and Reel

ABSOLUTE MAXIMUM RATINGS

Stresses exceeding the absolute maximum ratings can cause

permanent damage to the device.

Exposure to absolute maximum ratings for long periods of time

can adversely affect reliability.

Input

Output

Total Package

ISOCOM COMPONENTS 2004 LTD

Unit 25B, Park View Road West, Park View Industrial Estate

Hartlepool, Cleveland, TS25 1UD, United Kingdom

Tel: +44 (0)1429 863 609 Fax : +44 (0)1429 863 581

e-mail: sales@isocom.co.uk

http://www.isocom.com

ISOCOM COMPONENTS ASIA LTD

Hong Kong Office,

Block A, 8/F, Wah Hing Industrial mansion,

36 Tai Yau Street, San Po Kong, Kowloon, Hong Kong.

Tel: +852 2995 9217 Fax : +852 8161 6292

e-mail sales@isocom.com.hk

Forward Current

20mA

Forward Peak Current

(Pulse Width = 1ms, 50% Duty Cycle)

40mA

Forward Peak Transient Current

(Pulse Width = 1μs, 300pps)

1.0A

Reverse Voltage

5V

Power dissipation

36mW

Output Collector Current

8mA

Peak Output Current

16mA

Supply Voltage

-0.5 to 30V

Output Collector Voltage

-0.5 to 20V

Power Dissipation

100mW

Isolation Voltage

Operating Temperature

-40 to 105 °C

Storage Temperature

-55 to 125 °C

260°C

A 0.1μF bypass Capacitor must be connected between Pins 6 and 4.

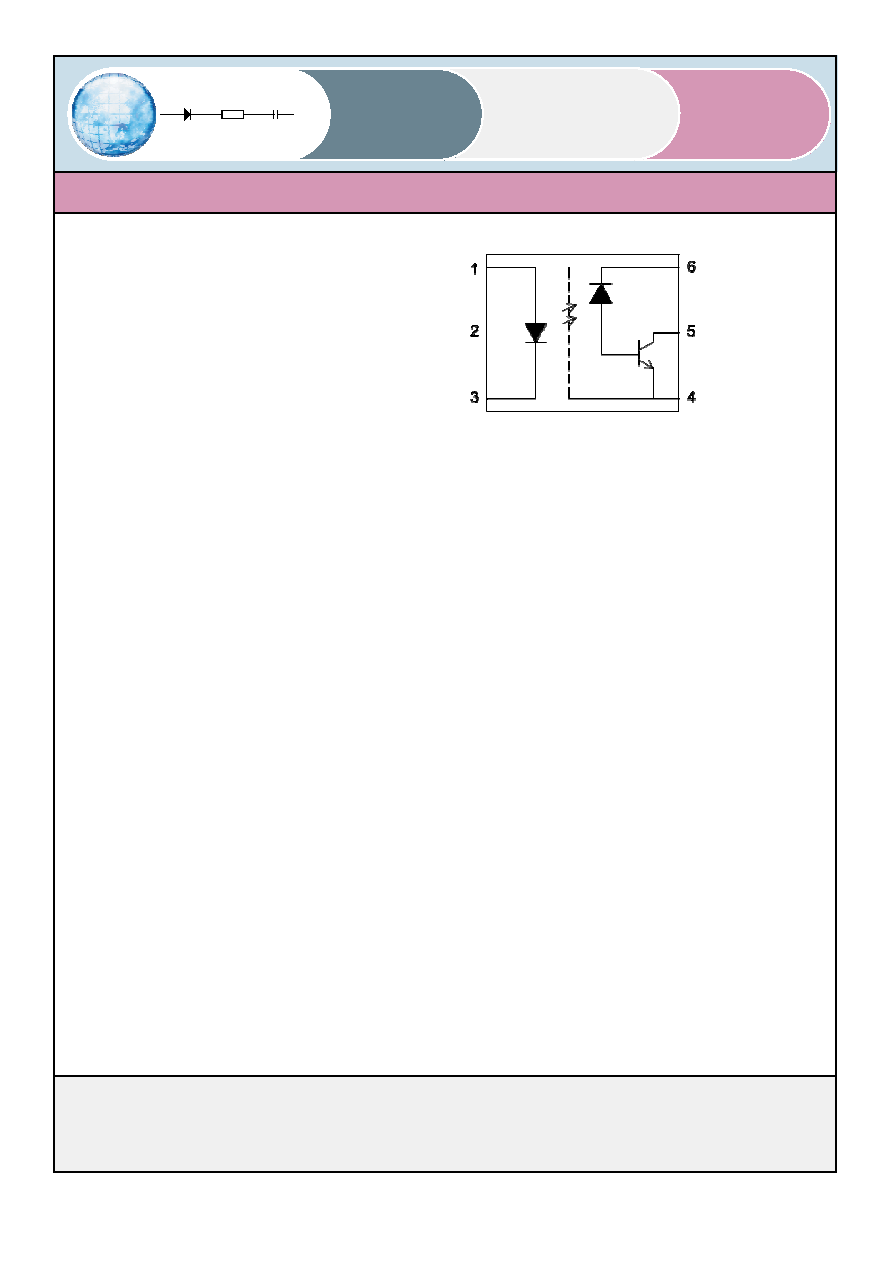

1 Anode

2 NC

3 Cathode

4 GND
