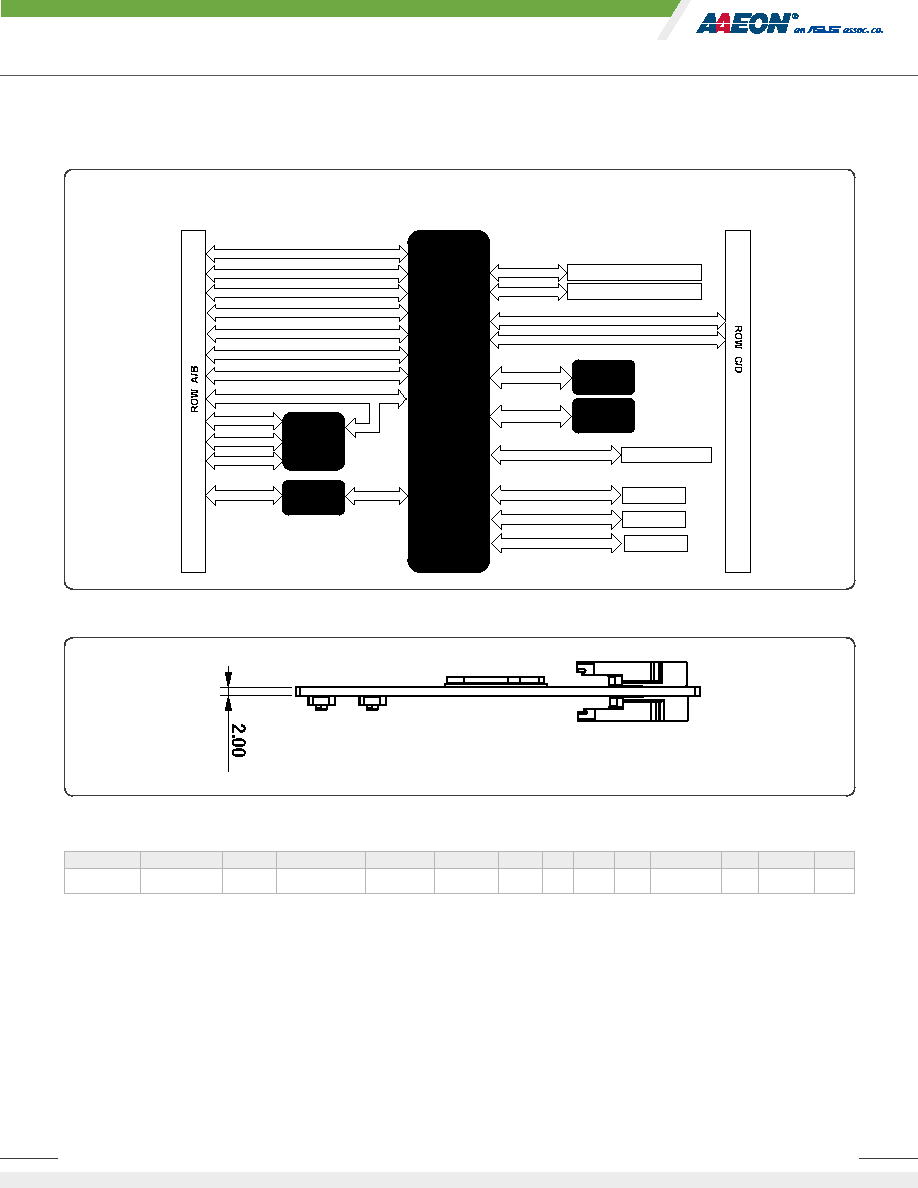

Block Diagram

Dimension

Unit: mm

COM-APLC6

Ordering Information

Part Number

COM Express Type

CPU

Memory

Display

LVDS

Storage

LAN

USB

UART

Expansion Slot

Power

Power Temp Others

COM-APLC6-A10-0001 6 (COM.0 Rev 2.1)

Intel® E3950

DDR3L-ECC SODIMM Socket

upto 8GB max.

CRT, LVDS/eDP

DDI x 1, MiPi-DSI

18/24b 2CH (LVDS

share with eDP)

SATA x 2

uSD

GbE x 1

USB3.0 x 2

USB2.0 x 8

2 (Tx/Rx)

PCI-E[x1] x 3 (devices)

MiPi-CSI x 2

12V

0

°C~60°C

—

PCIe [x 1] * 1

TYPE 6

ITE

IT8528

GPIO

SMBus

SPI

LPC

TX/RX * 2

Intel ®

GbE Ethernet

I210/i211

GBE

USB3.0 * 2

PCIe [x1] * 3 or PCIe [x2] *1

SATA * 2 (SATA2 default to onboard SSD)

I2C

BIOS

SPI

USB2.0 * 8

TPM

(option)

LPC

Intel®

Apollp Lake

DDR3L-ECC SO-DIMM

Channel B

DDR3L-ECC SO-DIMM

Channel A

LVDS (eDP to LVDS)

VGA (DDI to VGA)

DDI * 2 (DDI2 default to VGA)

MiPi CSI-4 lane

MiPi CSI-2 lane

MiPi DSI

SDIO

uSD (option)

CSI Conn.

CSI Conn.

DSI Conn.

06-1

06-2
