1.2 MHz DC-DC Step-Up Switching Converter

ADP1610

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable.

However, no responsibility is assumed by Analog Devices for its use, nor for any

infringements of patents or other rights of third parties that may result from its use.

Specifications subject to change without notice. No license is granted by implication

or otherwise under any patent or patent rights of Analog Devices. Trademarks and

registered trademarks are the property of their respective owners.

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.

Tel: 781.329.4700

www.analog.com

Fax: 781.326.8703

© 2004 Analog Devices, Inc. All rights reserved.

FEATURES

Fully integrated 1.2 A , 0.2 Ω, power switch

Pin-selectable 700 kHz or 1.2 MHz PWM frequency

92% efficiency

Adjustable output voltage up to 12 V

3% output regulation accuracy

Adjustable soft start

Input undervoltage lockout

MSOP 8-lead package

APPLICATIONS

TFT LC bias supplies

Portable applications

Industrial/instrumentation equipment

GENERAL DESCRIPTION

The ADP1610 is a dc-to-dc step-up switching converter with an

integrated 1.2 A, 0.2 Ω power switch capable of providing an

output voltage as high as 12 V. With a package height of less that

1.1 mm, the ADP1610 is optimal for space-constrained

applications such as portable devices or thin film transistor

(TFT) liquid crystal displays (LCDs).

The ADP1610 operates in pulse-width modulation (PWM)

current mode with up to 92% efficiency. Adjustable soft start

prevents inrush currents at startup. The pin-selectable switching

frequency and PWM current-mode architecture allow excellent

transient response, easy noise filtering, and the use of small,

cost-saving external inductors and capacitors.

The ADP1610 is offered in the Pb-free 8-lead MSOP and

operates over the temperature range of −40°C to +85°C.

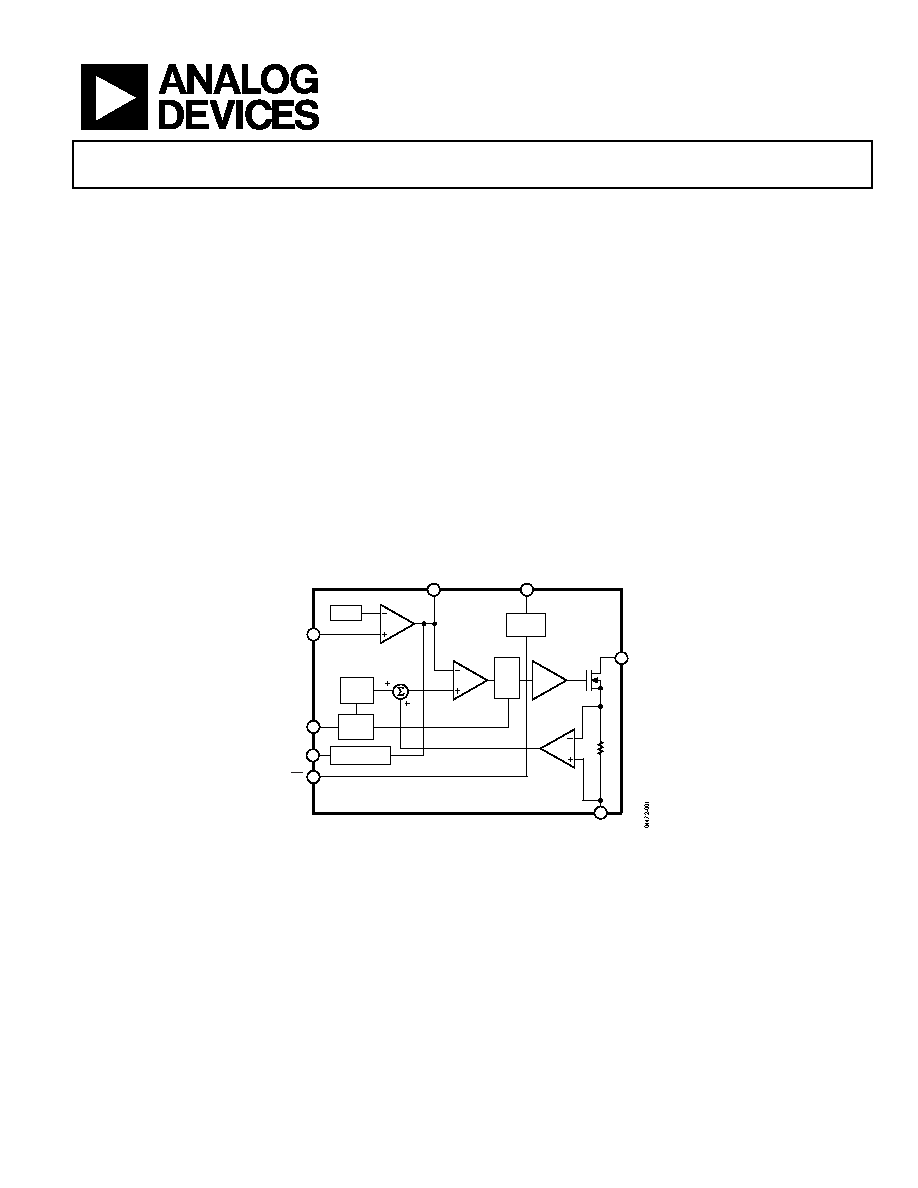

FUNCTIONAL BLOCK DIAGRAM

REF

RAMP

GEN

RT

DRIVER

CURRENT

SENSE

AMPLIFIER

COMP

SW

FB

IN

COMPARATOR

ERROR

AMP

GND

BIAS

SD

OSC

ADP1610

Q

S

R

F/F

2

7

3

5

4

1

6

8

SOFT START

SS

Figure 1.
