ADL5304
Data Sheet
Rev. A | Page 8 of 32
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
1p
10p
100p
1n
10n
100n
1μ
10μ 100μ 1m 10m
IDEN CURRENT (A)
1mA
100µA
10µA
1µA
100nA
10nA
1nA
100pA

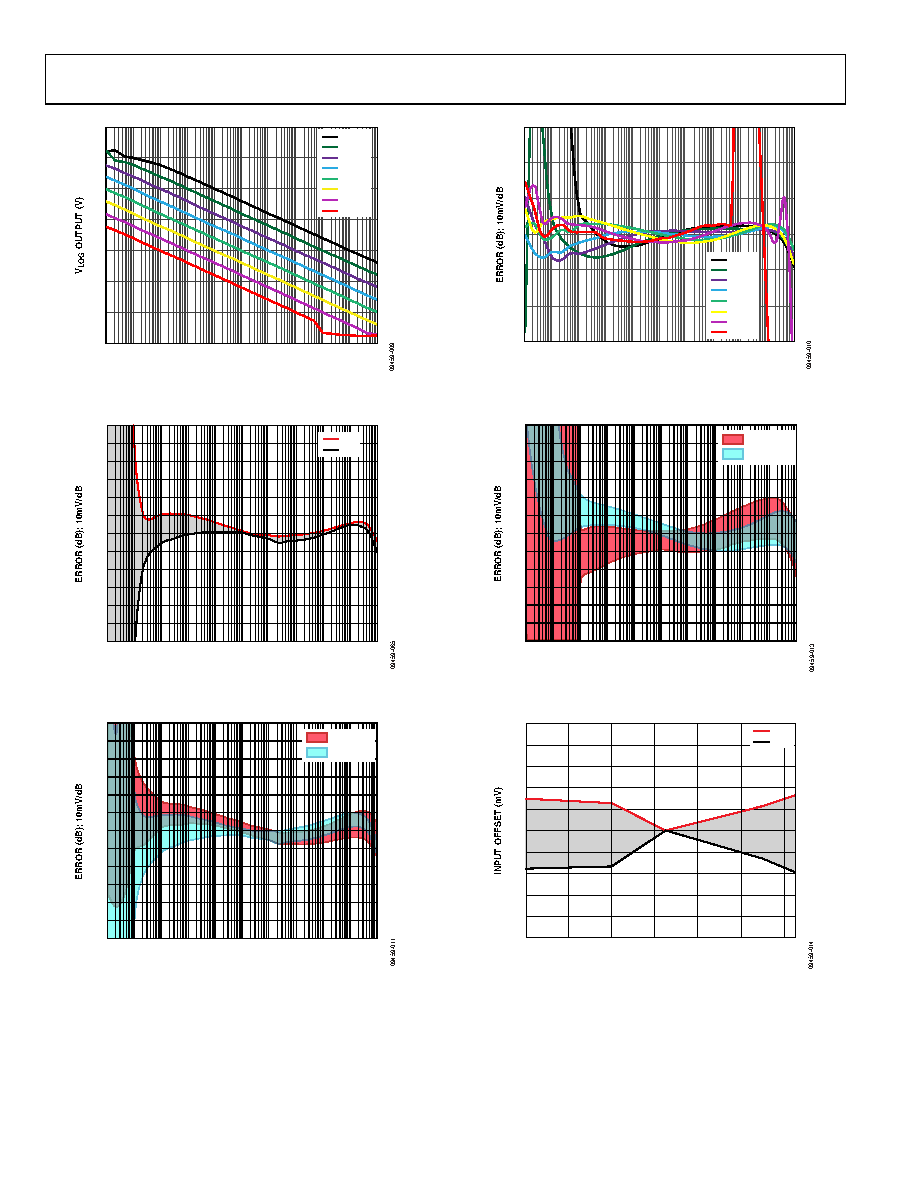

Figure 9. VLOG vs. IDEN for Multiple Values of INUM
(Decade Steps from 100 pA to 1 mA)
3.0
2.0
1.0
0
–1.0
–2.0
2.5
1.5
0.5
–0.5
–1.5
–2.5
–3.0
1p
10p
100p
1n
10n
100n
1μ
10μ 100μ 1m 10m
INUM (A)
+3σ
–3σ
Figure 10. Law Conformance Error Distribution vs. INUM
(3 σ Either Side of Mean)
3.0
2.0
1.0
0
–1.0
–2.0
2.5
1.5
0.5
–0.5
–1.5
–2.5
–3.0
1p
10p
100p
1n
10n
100n
1μ
10μ 100μ 1m 10m
INUM (A)
±3σ 70°C
±
3σ 0°C
Figure 11. Law Conformance Error Distribution vs. INUM for 0°C and 70°C
(3 σ Either Side of Mean)
3
2
1
0
–1
–2
–3
1p
10p
100p
1n
10n
100n
1μ
10μ 100μ 1m 10m
IDEN CURRENT (A)
1mA
100µA
10µA
1µA
100nA
10nA
1nA
100pA
Figure 12. Law Conformance Error vs. IDEN for Multiple Values of INUM
(Decade Steps from 100 pA to 1 mA)
3.0
2.0
1.0
0
–1.0
–2.0
2.5
1.5
0.5
–0.5
–1.5
–2.5
–3.0
1p
10p
100p
1n
10n
100n
1μ
10μ 100μ 1m 10m
INUM (A)
±3σ +85°C
±
3σ –40°C
Figure 13. Law Conformance Error Distribution vs. INUM for −40°C and +85°C
(3 σ Either Side of Mean)
5
–5
–4
–3
–2
–1
0
1
2
3
4
–40
80
60
40
20
0
–20
TEMPERATURE (°C)
+3σ
–3σ
Figure 14. (VINUM − VSUM) vs. INUM for Multiple Temperatures
