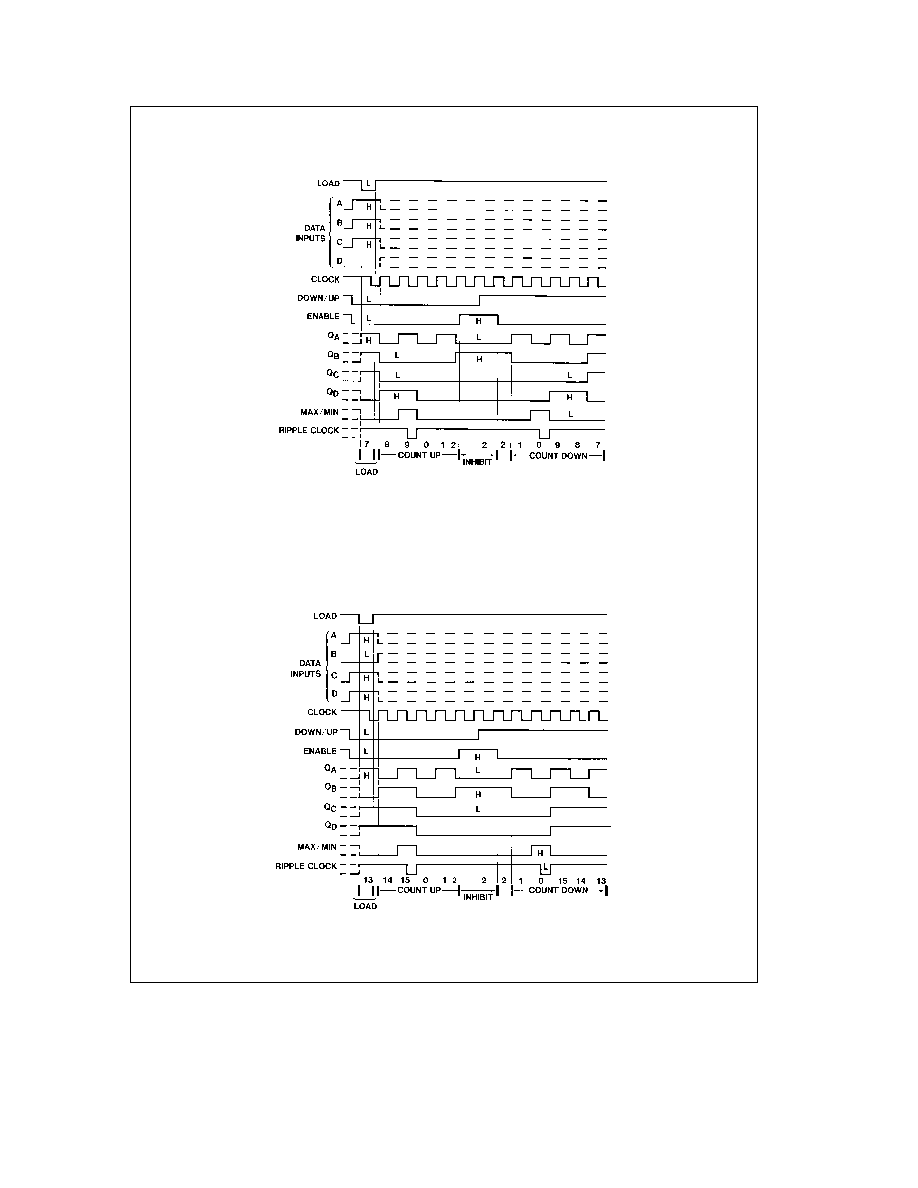

Timing Diagrams
’HC190 Synchronous Decade Counters
Typical Load Count and Inhibit Sequences
TLF5322 – 4
Sequence
(1) Load (preset) to BCD seven
(2) Count up to eight nine zero one and two
(3) Inhibit
(4) Count down to one zero nine eight and seven
’HC191 Synchronous Binary Counters
Typical Load Count and Inhibit Sequence
TLF5322 – 5
Sequence
(1) Load (preset) to binary thirteen
(2) Count up to fourteen fifteen zero one and two
(3) Inhibit
(4) Count down to one zero fifteen fourteen and thirteen
