TAI-TECH

P2

1. Features

1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels

2. Metallization on ferrite core results in excellent shock resistance and damage-free durability

3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)

4. 30% higher current rating than conventional nductors of equal size

5. Takes up less PCB real estate and save more power

6. Operating temperature :-40~+125℃ (Including self - temperature rise)

2. Applications

1. LED Lighting

2. Next-generation mobile devices with multifunction such as mobile TV and digital movie cameras

3. Flat-screen TVs, blue-ray disc recorders, set top box

4. Notebooks, desktop computers, servers, graphic cards cards

5. Portable gaming devices, personal navigation systems, personal multimedia devices

6. Automotive systems

7. Telecomm base stations

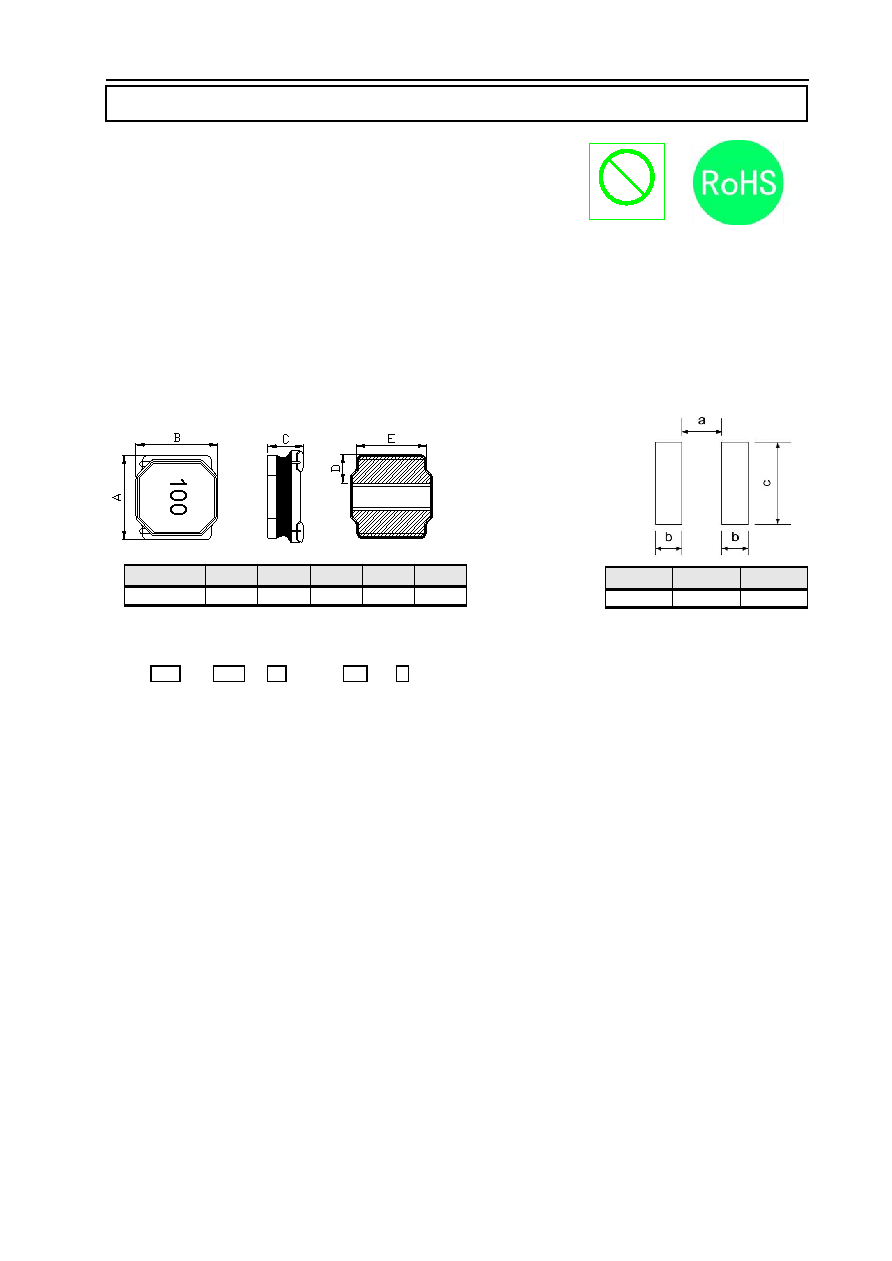

3. Dimension

4. Part Numbering

HPC4030NF-Series

HPC

4030

NF

-

100

M

A

B

C

D

E

A: Series

B: Dimension

A/B*C

C: Type

D: Inductance

1R0=1.00uH,100=10uH,101=100uH,102=1000uH

E: Inductance Tolerance

K=±10%, L=±15%,M=±20%,Y=±30%.

marking direction cannot decide polarity. Color: Black, unidirectional.

magnetic shielding

.

SMD Power Inductor

Recommendend Land pattern

Series

*A(mm) *B(mm) C(mm) D(mm) E(mm)

HPC4030NF 4.0±0.2 4.0±0.2 3.0Max. 1.35±0.3 3.4±0.4

*Dimensions are not including the termination. For maximum overall dimensions

with ternmination , add 0.1mm.

Halogen-free

Halogen

a(mm)

b(mm)

c(mm)

1.3Typ

1.5Typ

3.7Typ

Note: 1. The above PCB layout reference only.

2. Recommend solder paste thickness at

0.12mm and above.
