MODEL: AD3V

AD3V SPECIFICATIONS

ES-1389 Rev.24 Page 8/9

https://www.m-system.co.jp/

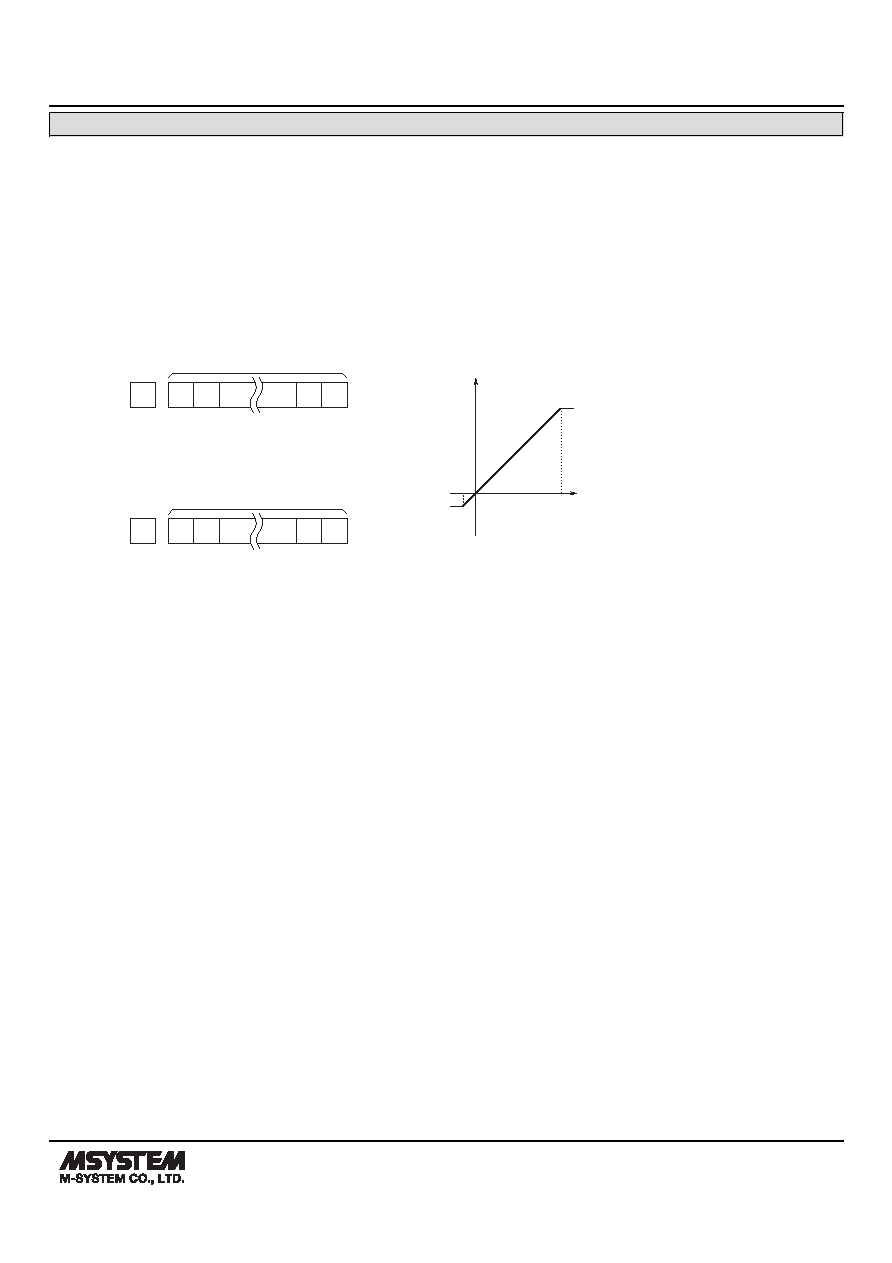

INPUT-OUTPUT RELATION EXAMPLES

• FS

-FS stands for -15 % of the input range, which is configured by ITEM 22, 0 % input voltage/current and ITEM 23, 100 % input

voltage/current. +FS stands for +115 % of the input range.

• OVF

When one of the following conditions is true, the digital output overflows (OVF).

1) When the input signal is out of the range between -FS and +FS.

2) When the display value (= output signal) exceeds the display range.

The display range differs according to output code. For example, in case of BCD with polarity, it is -9999 to 9999. Please refer

to the instruction manual for detail.

■ BCD, BINARY (WITH POLARITY)

MSB

POL

POLARITY

DATA

LSB

MSB

POL

UNUSED

DATA

LSB

■ OFFSET BINARY & TWO’S COMPLEMENT

–FS

OVF

0%

DIGITAL OUTPUT

+FS

ANALOG INPUT

OVF
