Crystal-less Two Output PCIe Clock Generator

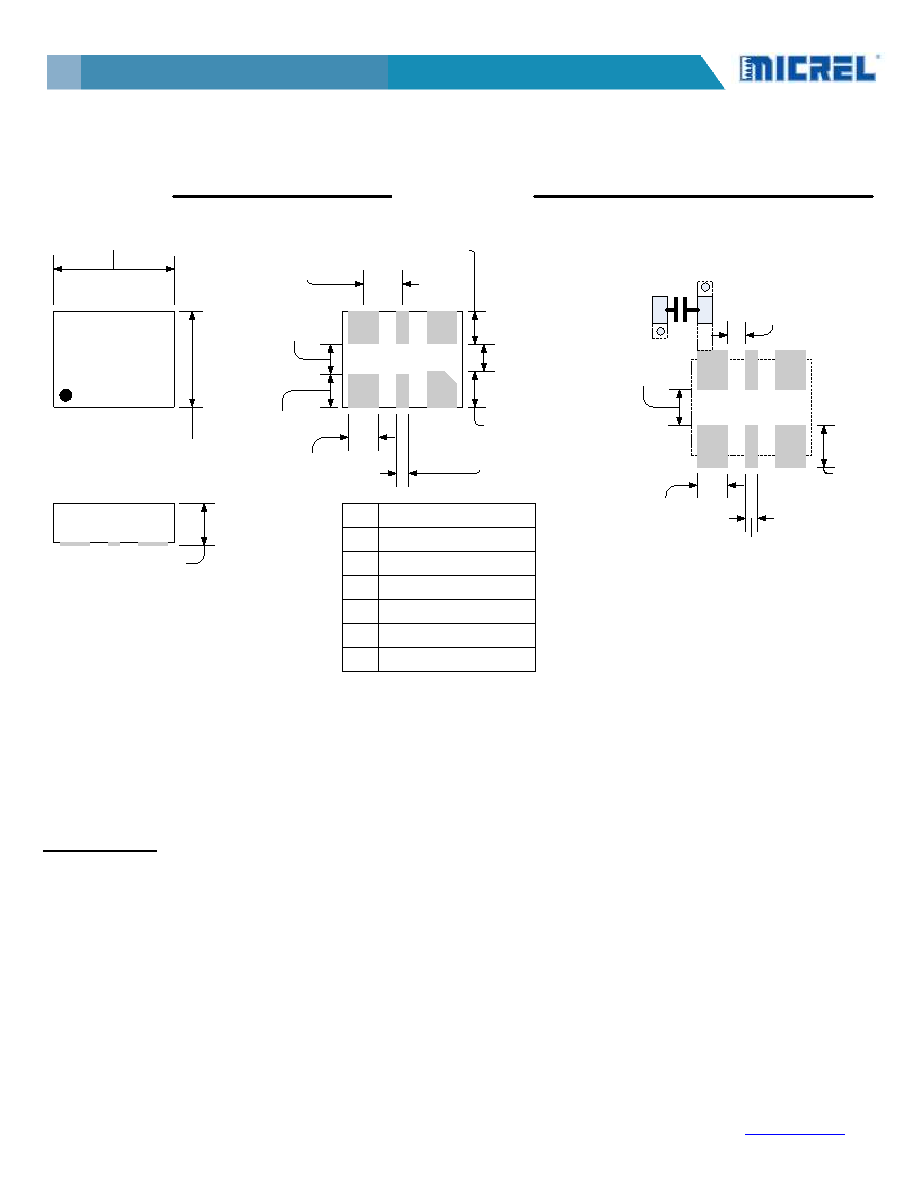

Package Dimensions

1

2

3

4

6

5

2.5±0.05 [0.098±0.002]

2.0±0.05 [0.079±0.002]

1

2

3

4

6

5

0.25±0.05 [0.099±0.002]

0.65±0.05 [0.026±0.002]

0.825 [0.032]

0.7±0.1 [0.079±0.002]

0.765±0.1

0.535 REF

0.6 REF

0.7±0.1 [0.079±0.002]

0.85±0.05

0.25±0.05 [0.099±0.002]

0.65±0.05 [0.026±0.002]

0.85

0.7 REF

1

2

3

4

5

6

0.375

Via to

Power Trace

Via to Ground

Plane

No.

Pin Terminal

1

Enable

2

N/C

3

Ground

4

5

CLK1

6

VDD

CLK0

EXTERNAL DIMENSIONS

Units: mm [ inches]

RECOMMENDED SOLDER PAD LAYOUT

Units: mm [ inches]
