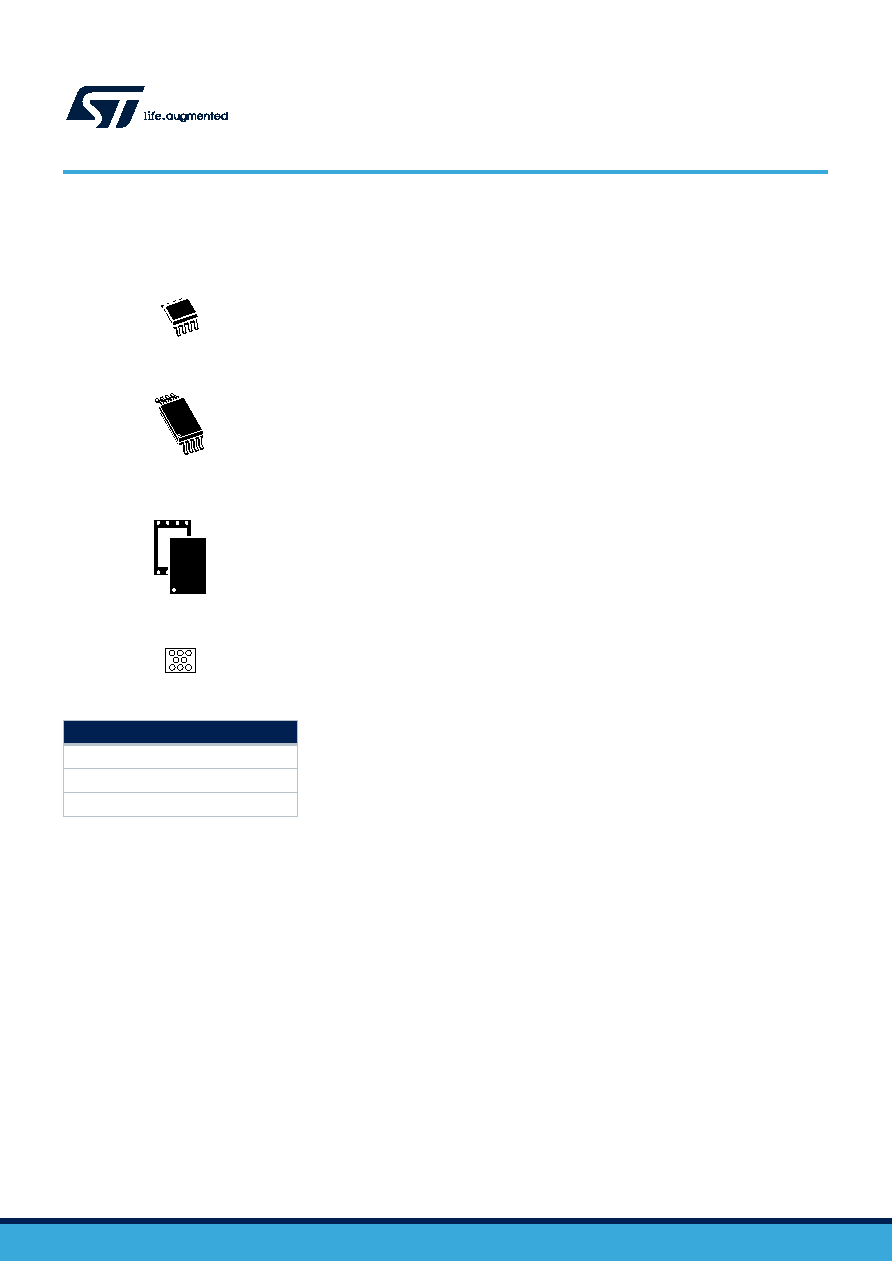

SO8N

(150 mil width)

TSSOP8

(169 mil width)

UFDFPN8 (DFN8)

(2 x 3 mm)

WLSCP8

(1.289 x 1.376 mm)

Features

•

Compatible with the serial peripheral interface (SPI) bus

•

Memory array

–

256-Kbit (32 Kbytes) of EEPROM

–

Page size: 64 bytes

–

Additional write lockable page (Identification page)

•

Write time

–

Byte Write within 5 ms

–

Page Write within 5 ms

•

Write protect

–

quarter array

–

half array

–

whole memory array

•

High-speed clock: 20 MHz

•

Single supply voltage:

–

2.5 V to 5.5 V for M95256-W

–

1.8 V to 5.5 V for M95256-R

–

1.7 V to 5.5 V for M95256-DF

•

Operating temperature range: from -40 °C up to +85 °C

•

Enhanced ESD protection

•

More than 4 million Write cycles

•

More than 200-year data retention

•

Packages

–

SO8N (ECOPACK2)

–

TSSOP8 (ECOPACK2)

–

UFDFPN8 (ECOPACK2)

–

WLCSP8 (ECOPACK2)

Product status link

M95256-DF

M95256-R

M95256-W

256-Kbit serial SPI bus EEPROM with high-speed clock

M95256-W M95256-R M95256-DF

Datasheet

DS4712 - Rev 22 - September 2021

For further information contact your local STMicroelectronics sales office.

www.st.com
