Typical characteristics
LD1585C series
16/25
6

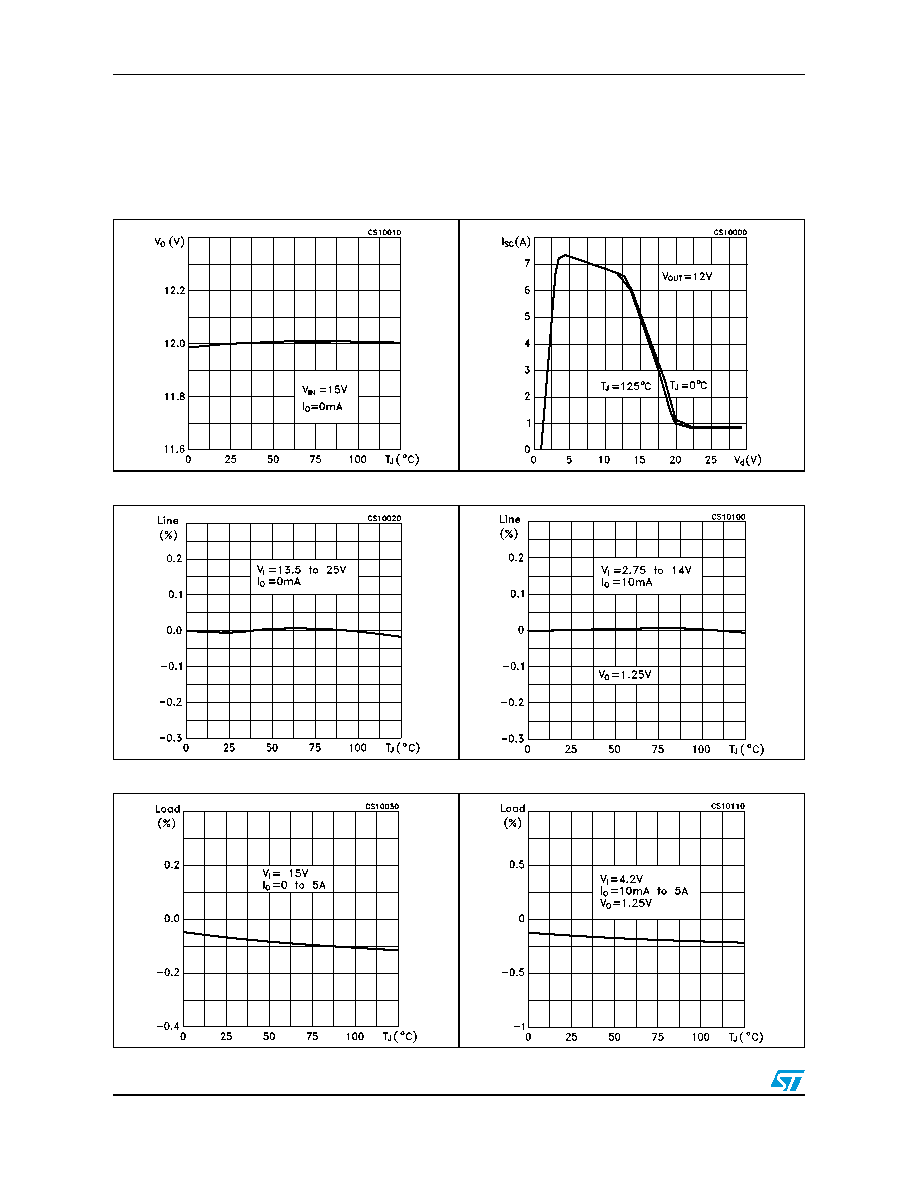

Typical characteristics
(unless otherwise specified TJ=25°C, CI=CO=10µF tant.)
Figure 4.
Output voltage vs temperature
Figure 5.
Short circuit current vs dropout
voltage
Figure 6.
Line regulation vs temperature
Figure 7.
Line regulation vs temperature
Figure 8.
Load regulation vs temperature
Figure 9.
Load regulation vs temperature
