LD1585C series
Typical characteristics
19/25

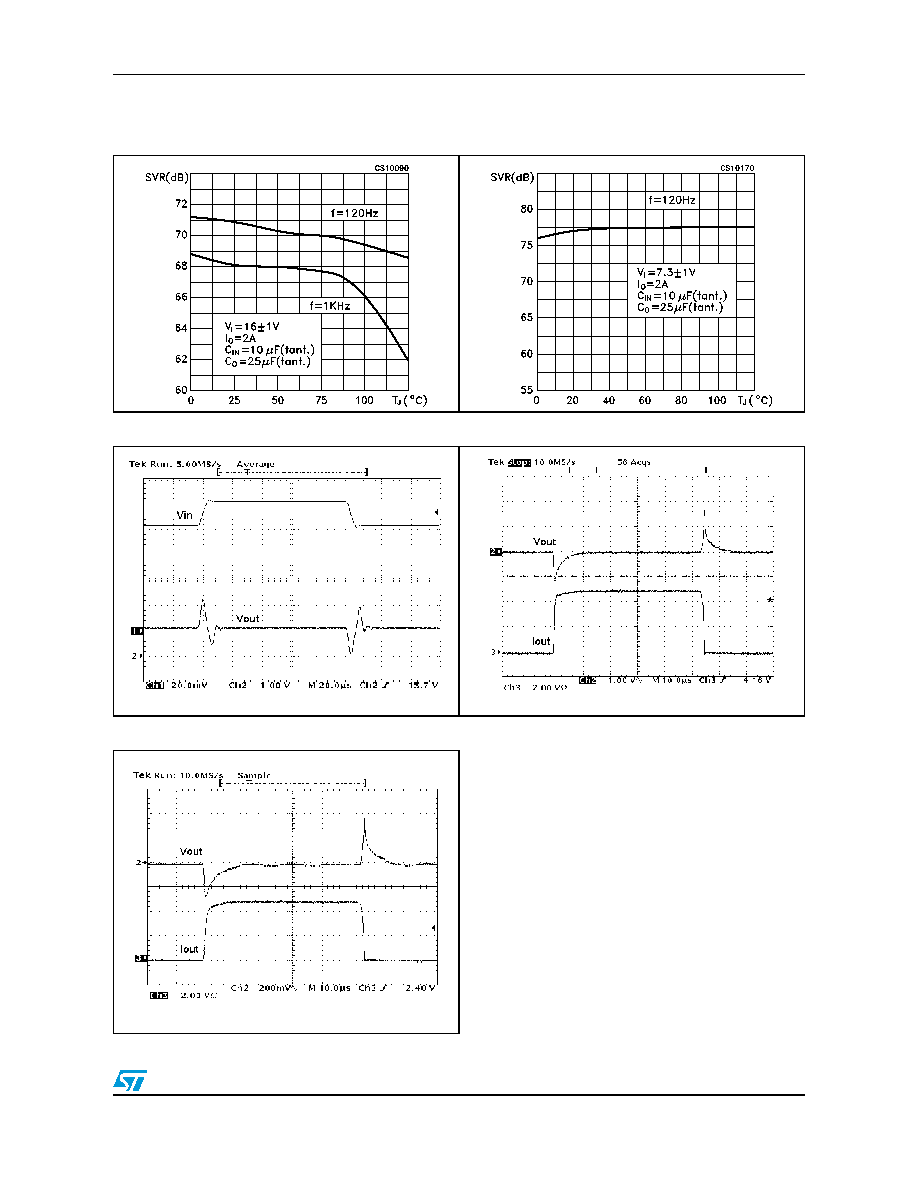

Figure 22.
Supply voltage rejection vs
temperature
Figure 23.
Supply voltage rejection vs
temperature
Figure 24.
Line transient
Figure 25.
Load transient
VI=15 to 16V, IO=200mA, CI = 1µF(tant), CO=10µF(tant)
VI=15 V, IO=0.1 to 5 A, CI = 10µF(tant), CO=10µF(tant)
Figure 26.
Load transient
VI=7 V, IO=0.1 to 5 A, CI = 10µF(tant), CO=10µF(tant)
