37 / 54 page

DS6638 Rev 36

37/54

M24C64-W M24C64-R M24C64-F M24C64-DF

Package information

9.3

TSSOP8 package information

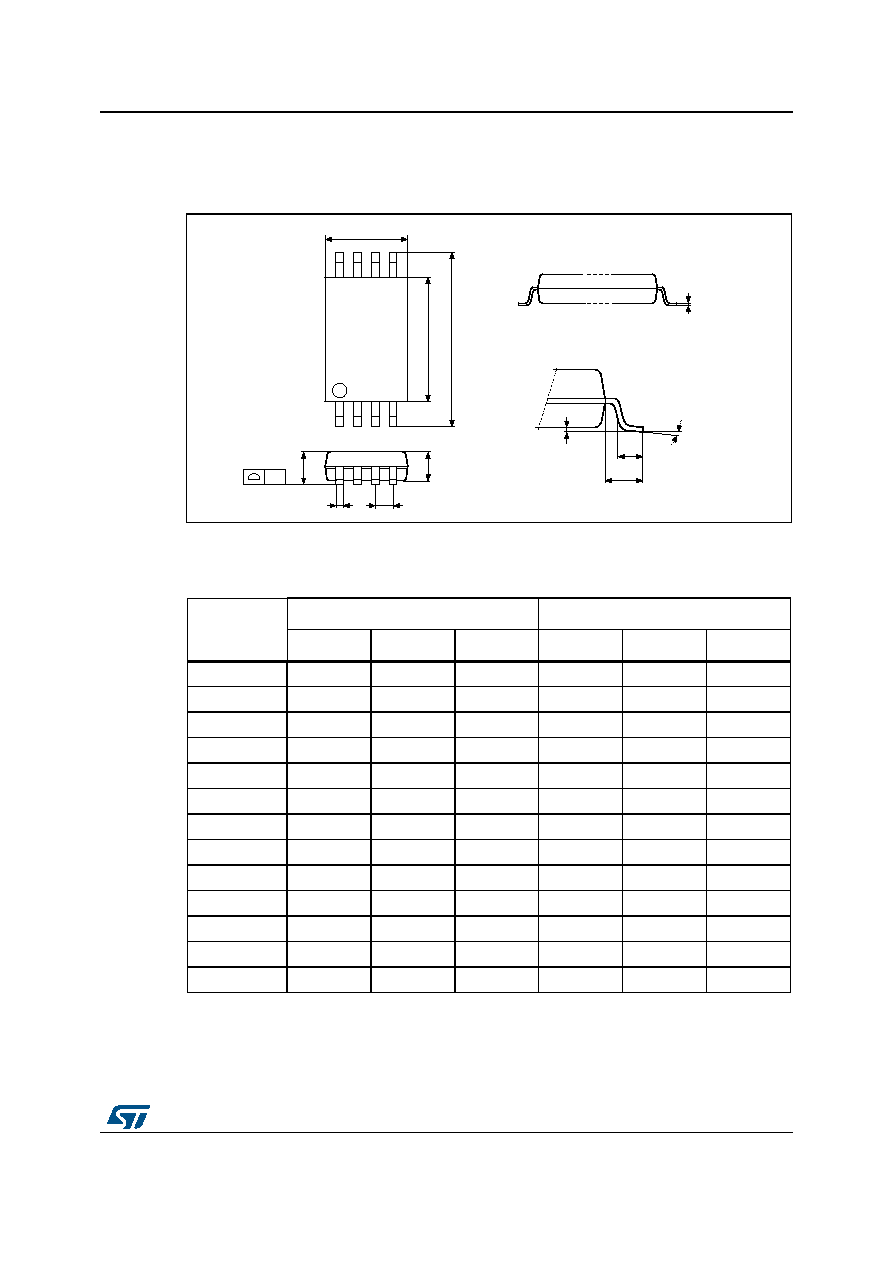

Figure 21.TSSOP8 – 3x4.4 mm, 0.65 mm pitch, 8-lead thin shrink small outline,

package outline

1. Drawing is not to scale.

Table 23. TSSOP8 – 3 x 4.4 mm, 0.65 mm pitch, 8-lead thin shrink small outline,

package mechanical data

Symbol

millimeters

inches(1)

1. Values in inches are converted from mm and rounded to four decimal digits.

Min.

Typ.

Max.

Min.

Typ.

Max.

1.200

0.0472

0.050

0.150

0.0020

0.0059

0.800

1.000

1.050

0.0315

0.0394

0.0413

0.190

0.300

0.0075

0.0118

0.090

0.200

0.0035

0.0079

0.100

0.0039

2.900

3.000

3.100

0.1142

0.1181

0.1220

0.650

0.0256

6.200

6.400

6.600

0.2441

0.2520

0.2598

4.300

4.400

4.500

0.1693

0.1732

0.1772

0.450

0.600

0.750

0.0177

0.0236

0.0295

1.000

0.0394

0°

8°

0°

8°
