Package information

M24C64-W M24C64-R M24C64-F M24C64-DF

38/54

DS6638 Rev 36

9.4

SO8N package information

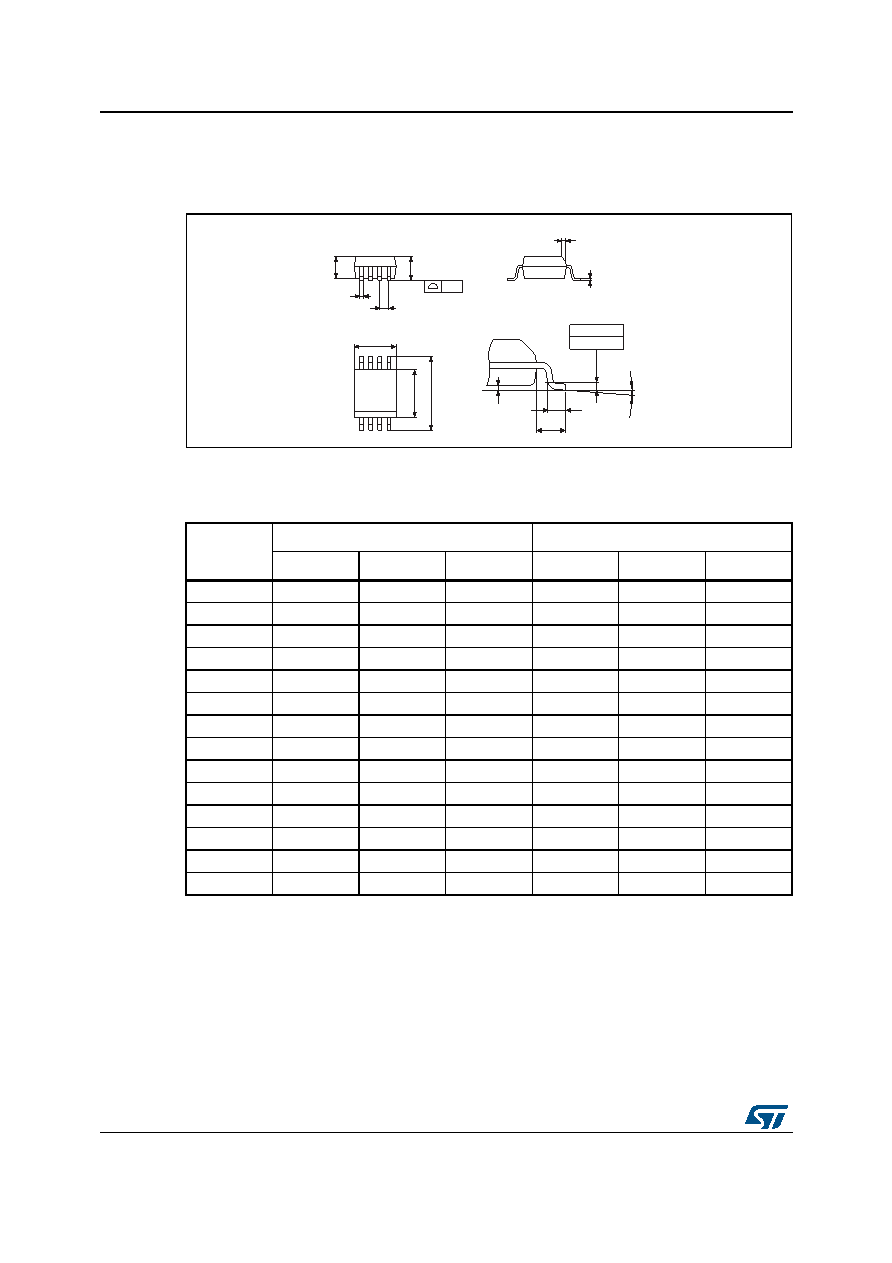

Figure 22. SO8N – 3.9x4.9 mm, 8-lead plastic small outline, 150 mils body width,

package outline

1. Drawing is not to scale.

Table 24. SO8N – 3.9x4.9 mm, 8-lead plastic small outline, 150 mils body width,

package mechanical data

Symbol

millimeters

inches(1)

1. Values in inches are converted from mm and rounded to four decimal digits.

Min.

Typ.

Max.

Min.

Typ.

Max.

1.750

0.0689

0.100

0.250

0.0039

0.0098

1.250

0.0492

0.280

0.480

0.0110

0.0189

0.170

0.230

0.0067

0.0091

4.800

4.900

5.000

0.1890

0.1929

0.1969

5.800

6.000

6.200

0.2283

0.2362

0.2441

3.800

3.900

4.000

0.1496

0.1535

0.1575

1.270

0.0500

0.250

0.500

0.0098

0.0197

0°

8°

0°

8°

0.400

1.270

0.0157

0.0500

1.040

0.0409

ccc

0.100

0.0039
