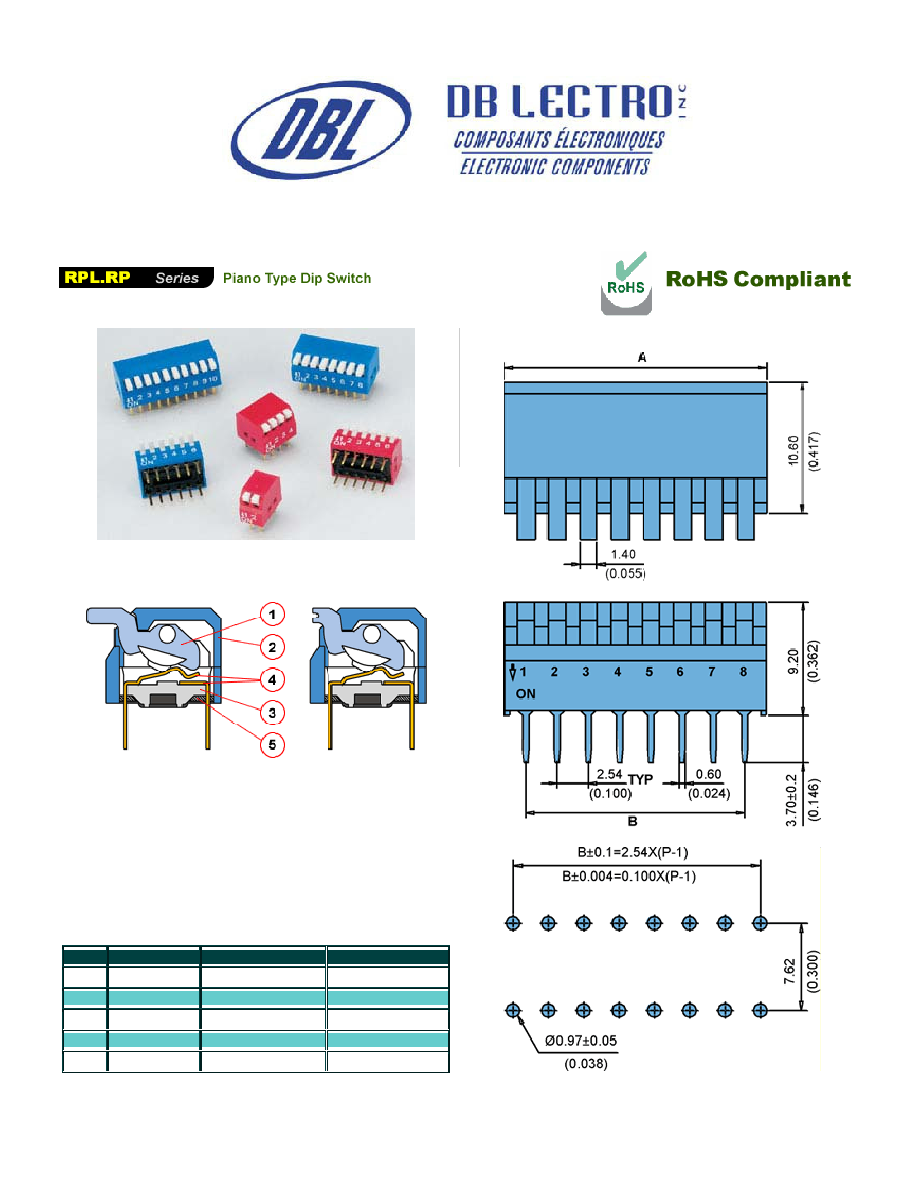

RPL & RP CONSTRUCTION

RPL series

RP series

1.

Terminal plating by gold gives excellent results when

soldering.

2.

RPL series (raised actuator) and RP series (recessed

actuator)

3.

Low contact resistance, and self-clean on contact area.

4.

Double contacts offer high reliability.

5.

All materials are UL94V-0 grade fire retardant plastics.

ITEM

Description

Materials

Treatment

1

Actuator

UL94V-0 PBT

White

2

Cover

UL94V-0 PBT

Blue, Red, Black

3

Base

UL94V-0 PBT

Black

4

Terminal

Phosphor bronze

Gold Plating

5

Potting

Epoxy

Black

P.C.B. LAYOUT
