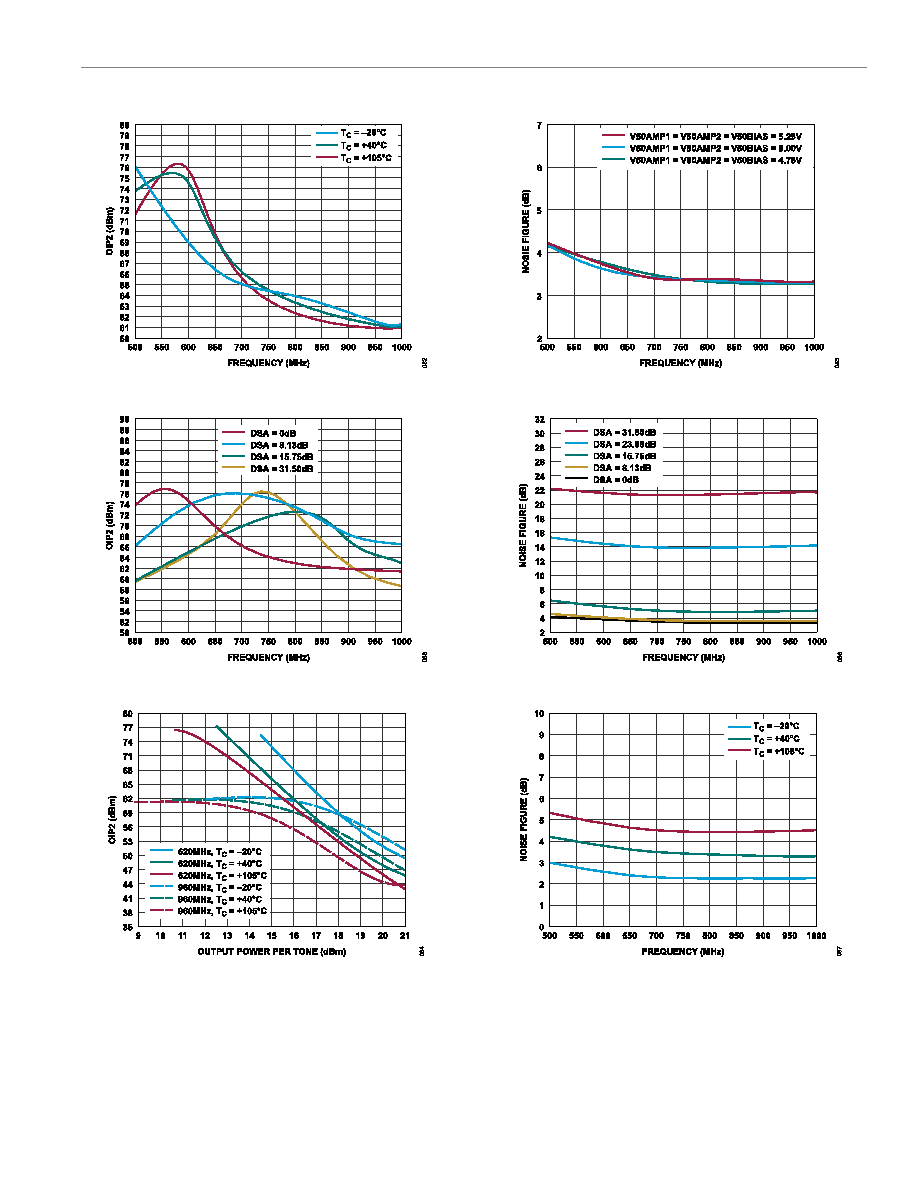

background image
Data Sheet
ADL6337
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. E | 13 of 53
Figure 24. OIP2 vs. Frequency for Various Temperatures
Figure 25. OIP2 vs. Frequency at Various DSA Values
Figure 26. OIP2 vs. Output Power per Tone for Various Temperatures at 620
MHz and 960 MHz
Figure 27. Noise Figure vs. Frequency for Various Supplies
Figure 28. Noise Figure vs. Frequency at Various DSA Values
Figure 29. Noise Figure vs. Frequency for Various Temperatures
