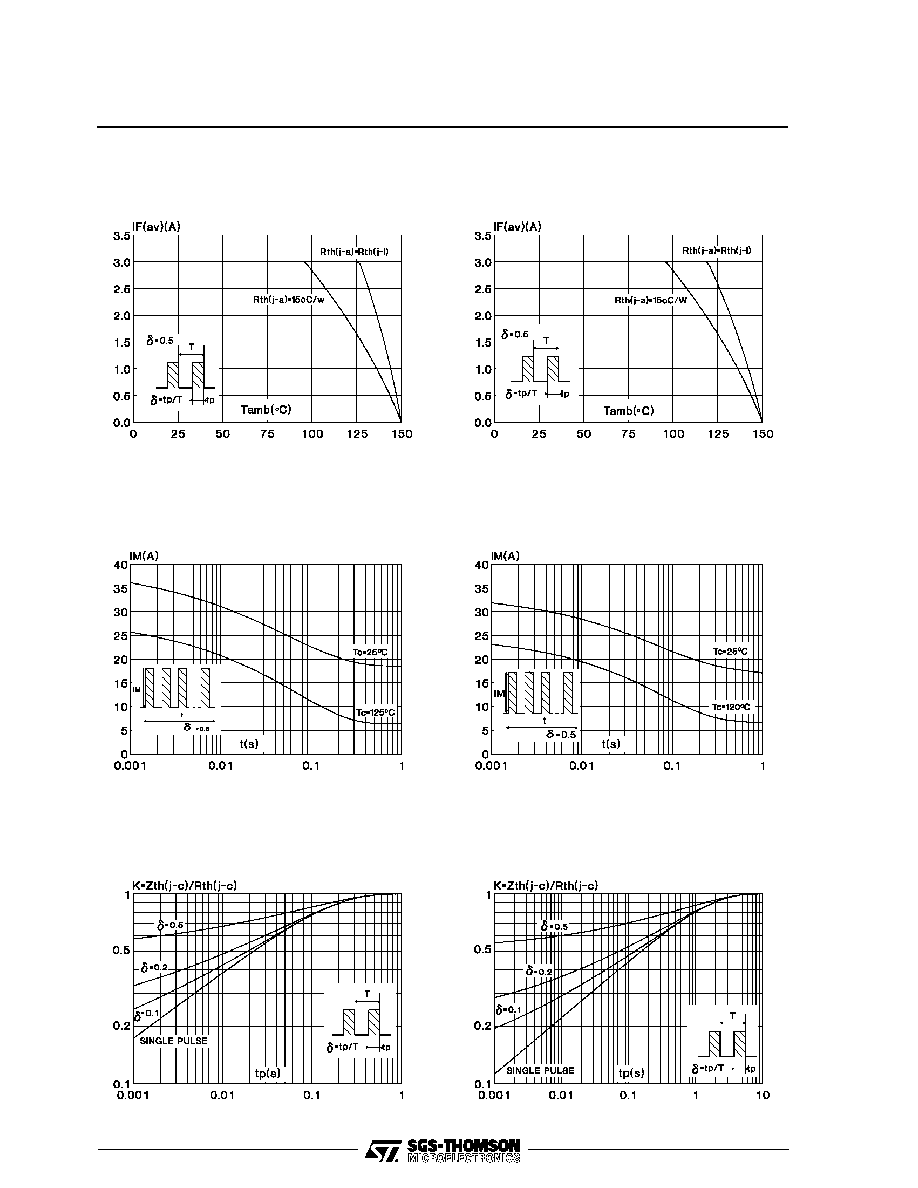

Fig.3 : Average current versus ambient temperature.

(duty cycle : 0.5) (TO220AC)

Fig.5 : Non repetitive surge peak forward current versus

overload duration.

(Maximum values) (TO220AC)

Fig.6 : Non repetitive surge peak forward current versus

overload duration.

(Maximum values) (ISOWATT220AC)

Fig.4 : Average current versus ambient temperature.

(duty cycle : 0.5) (ISOWATT220AC)

Fig.8 : Relative variation of thermal transient impedance

junction to case versus pulse duration.

(ISOWATT220AC)

Fig.7 : Relative variation of thermal transient impedance

junction to case versus pulse duration.

(TO220AC)

STPR310D/F / STPR320D/F

3/6
