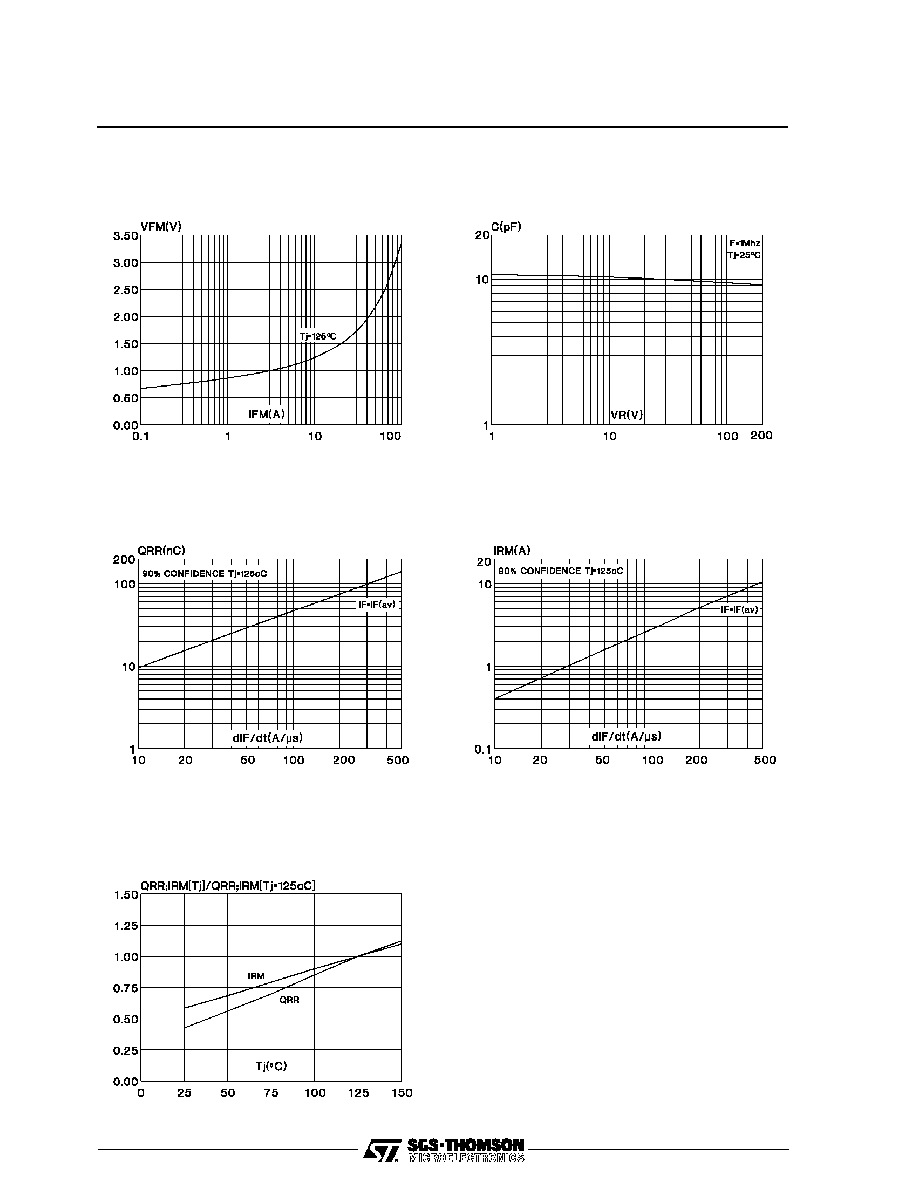

Fig.9 : Forward voltage drop versus forward current.

(Maximum values)

Fig.10 : Junction capacitance versus reverse voltage

applied. (Typical values)

Fig.11 : Recovery charge versus dIF/dt.

Fig.12 : Peak reverse current versus dIF/dt.

Fig.13 : Dynamic parameters versus junction tempera-

ture.

STPR310D/F / STPR320D/F
