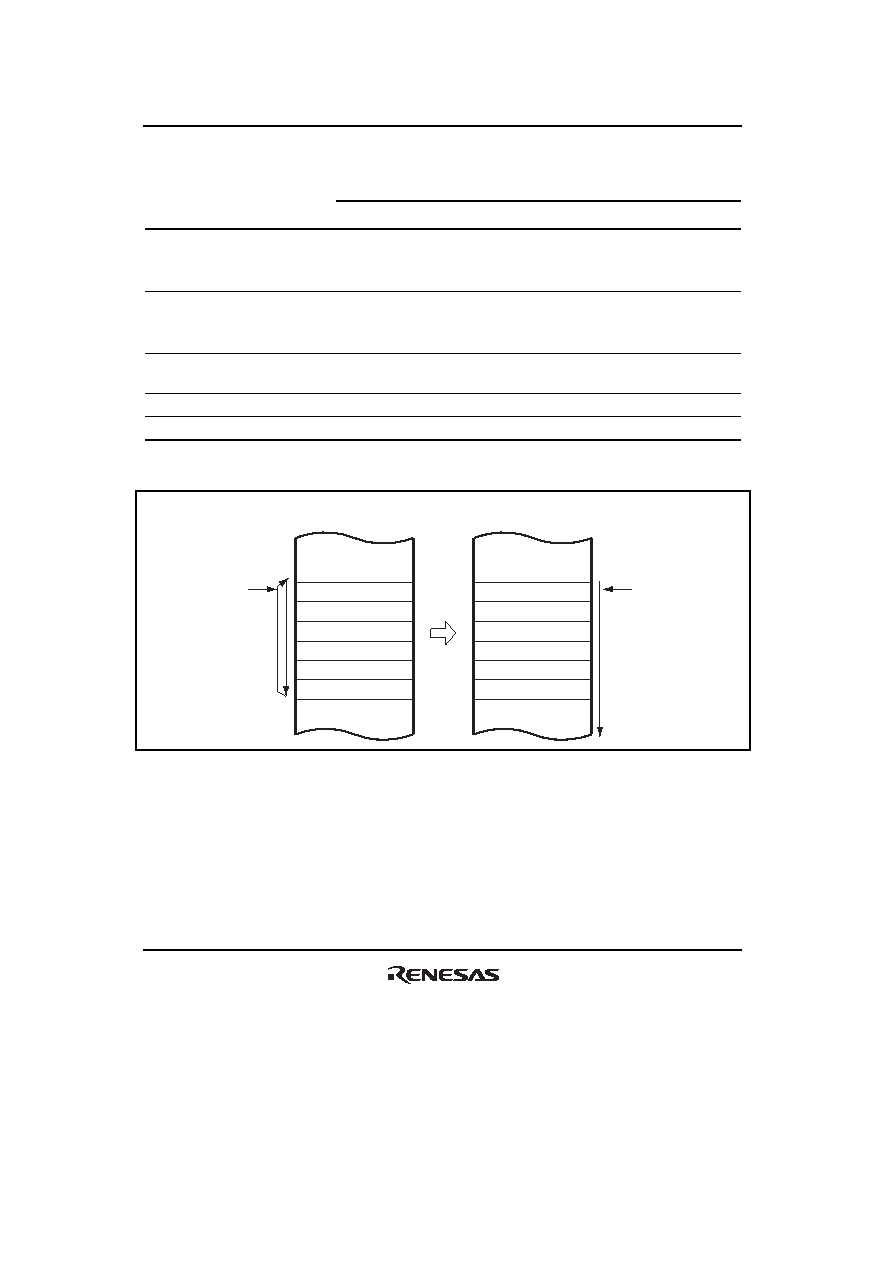

Section 8 Data Transfer Controller (DTC)
Rev.1.00 Jun. 07, 2006 Page 416 of 1102
REJ09B0294-0100
Table 8.7
Register Function in Repeat Transfer Mode
Written Back Value
Register Function
CRAL is not 1
CRAL is 1
SAR
Source address
Incremented/decremented/fixed
*
DTS =0: Incremented/
decremented/fixed*
DTS = 1: SAR initial value
DAR
Destination address Incremented/decremented/fixed
*
DTS = 0: DAR initial value
DTS =1: Incremented/
decremented/fixed*
CRAH
Transfer count
storage
CRAH
CRAH
CRAL
Transfer count A
CRAL
− 1
CRAH
CRB
Transfer count B
Not updated
Not updated
Note:
*
Transfer information writeback is skipped.
SAR
Transfer source data area
(specified as repeat area)
DAR
Transfer
Transfer destination data area
Figure 8.8 Memory Map in Repeat Transfer Mode
(When Transfer Source is Specified as Repeat Area)
