Section 12 8-Bit Timers (TMR)
Rev.1.00 Jun. 07, 2006 Page 631 of 1102
REJ09B0294-0100
12.8
Usage Notes
12.8.1
Notes on Setting Cycle
If the compare match is selected for counter clear, TCNT is cleared at the last state in the cycle in
which the values of TCNT and TCOR match. TCNT updates the counter value at this last state.
Therefore, the counter frequency is obtained by the following formula.
f =
φ / (N + 1 )
f:
Counter frequency
φ: Operating frequency
N: TCOR value
12.8.2
Conflict between TCNT Write and Counter Clear
If a counter clear signal is generated during the T
2 state of a TCNT write cycle, the clear takes
priority and the write is not performed as shown in figure 12.15.
P
φ
Address
TCNT address
Internal write signal
Counter clear signal
TCNT
N
H'00
T
1
T
2
TCNT write cycle by CPU

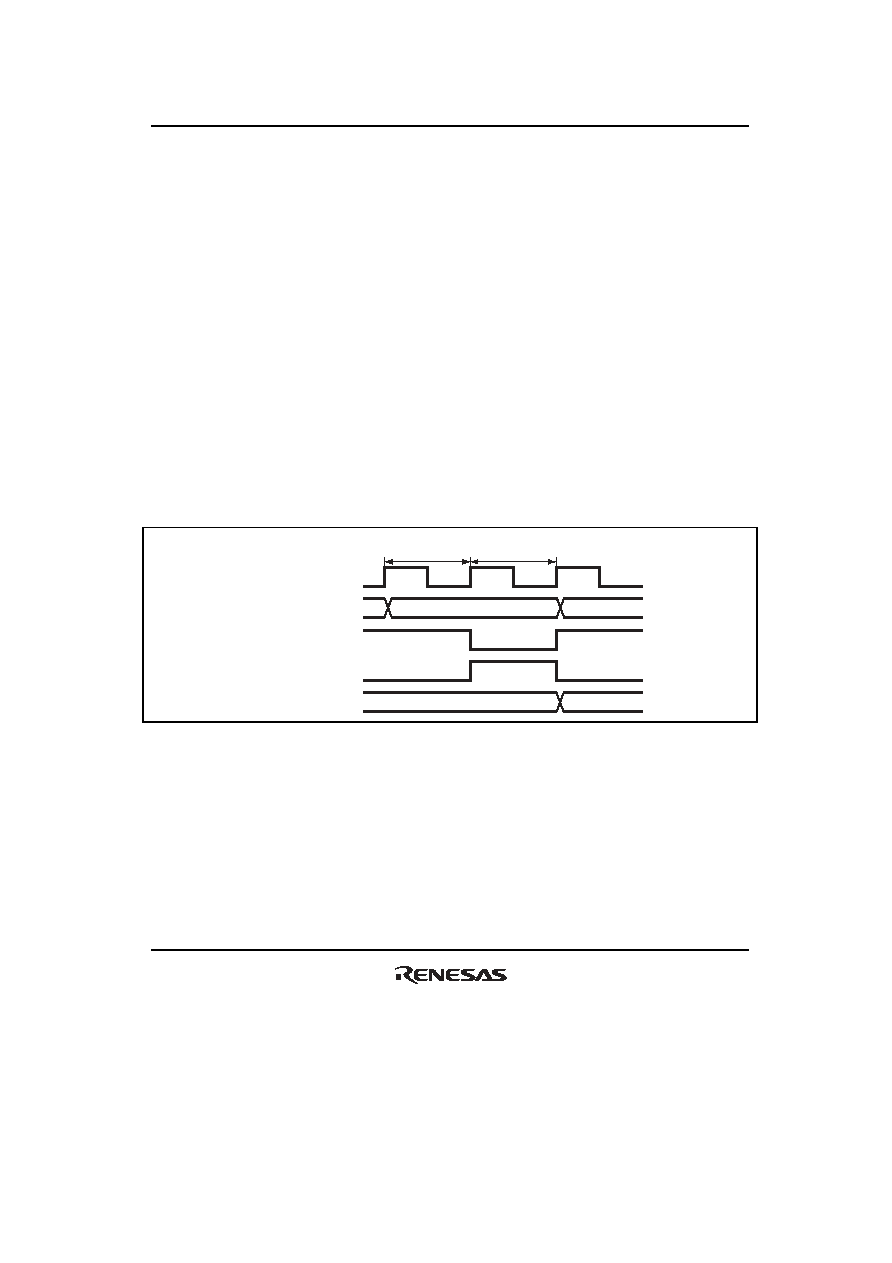

Figure 12.15 Conflict between TCNT Write and Clear
