MCP6V01/2/3

DS22058C-page 8

Note: Unless otherwise indicated, TA = +25°C, VDD = +1.8V to 5.5V, VSS = GND, VCM =VDD/3, VOUT =VDD/2,

VL =VDD/2, RL =20kΩ to VL, CL = 60 pF, and CS = GND.

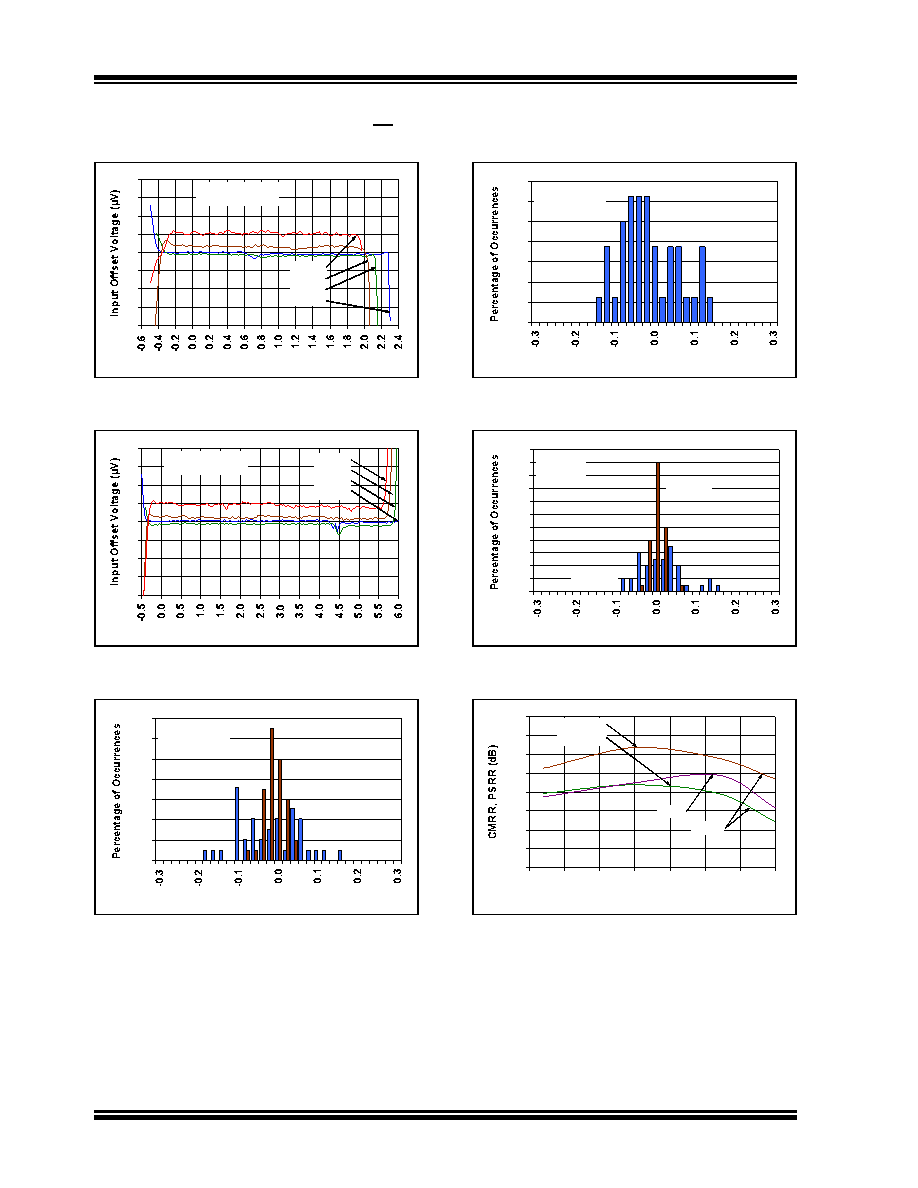

FIGURE 2-7:

Input Offset Voltage vs.

Common Mode Voltage with VDD =1.8V.

FIGURE 2-8:

Input Offset Voltage vs.

Common Mode Voltage with VDD =5.5V.

FIGURE 2-9:

CMRR.

FIGURE 2-10:

PSRR.

FIGURE 2-11:

DC Open-Loop Gain.

FIGURE 2-12:

CMRR and PSRR vs.

Ambient Temperature.

-4

-3

-2

-1

Input Common Mode Voltage (V)

VDD = 1.8V

Representative Part

+125°C

+85°C

+25°C

-40°C

-4

-3

-2

-1

Input Common Mode Voltage (V)

VDD = 5.5V

Representative Part

+125°C

+85°C

+25°C

-40°C

10%

15%

20%

25%

30%

35%

1/CMRR (µV/V)

39 Samples

TA = +25°C

Soldered on PCB

VDD = 1.8V

VDD = 5.5V

10%

12%

14%

1/PSRR (µV/V)

40 Samples

TA = +25°C

Soldered on PCB

10%

15%

20%

25%

30%

35%

40%

45%

50%

55%

1/AOL (µV/V)

40 Samples

TA = +25°C

VDD = 1.8V

VDD = 5.5V

120

125

130

135

140

145

150

155

160

-50

-25

100

125

Ambient Temperature (°C)

PSRR

CMRR

VDD = 5.5V

VDD = 1.8V
