AP7335

300mA, Low Quiescent Current, Fast Transient

Low Dropout Linear Regulator

AP7335

Document number: DS32259 Rev. 1 - 2

3 of 18

www.diodes.com

July 2010

© Diodes Incorporated

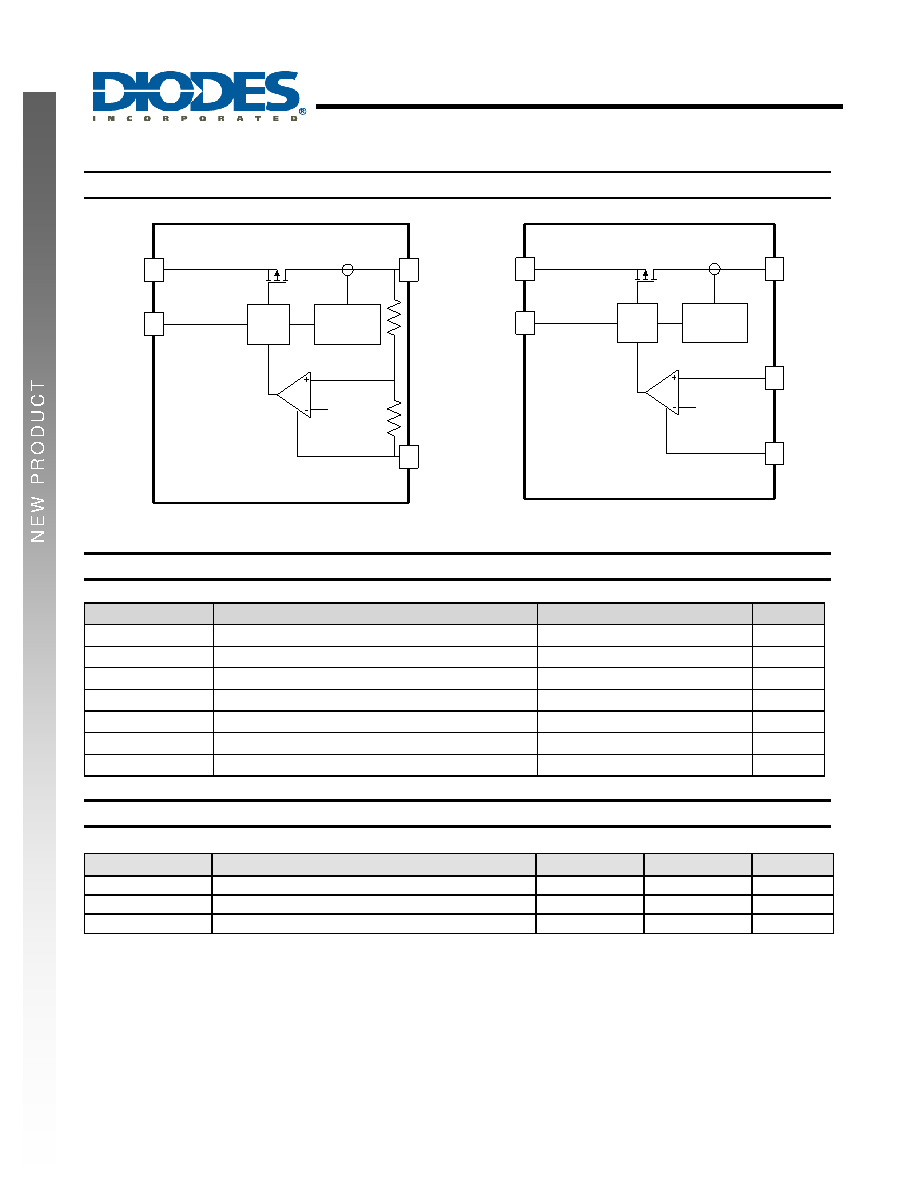

Functional Block Diagram

IN

EN

GND

OUT

Gate

Driver

0.8V

Current Limit

and Thermal

Shutdown

Fixed Version

R

R

IN

EN

GND

ADJ

OUT

Gate

Driver

0.8V

Current Limit

and Thermal

Shutdown

Adjustable Version

Absolute Maximum Ratings

Symbol

Parameter

Ratings

Unit

ESD HBM

Human Body Model ESD Protection

2000

V

ESD MM

Machine Model ESD Protection

200

V

Input Voltage

6.5

V

OUT, EN Voltage

V

Continuous Load Current per Channel

Internal Limited

Storage Temperature Range

-65 to 150

°C

Maximum Junction Temperature

150

°C

Recommended Operating Conditions

Symbol

Parameter

Min

Max

Unit

Input voltage

2

6

V

Output Current (Note 2)

0

300

mA

Operating Ambient Temperature

-40

85

°C

Notes:

2 The device maintains a stable, regulated output voltage without a load current.
