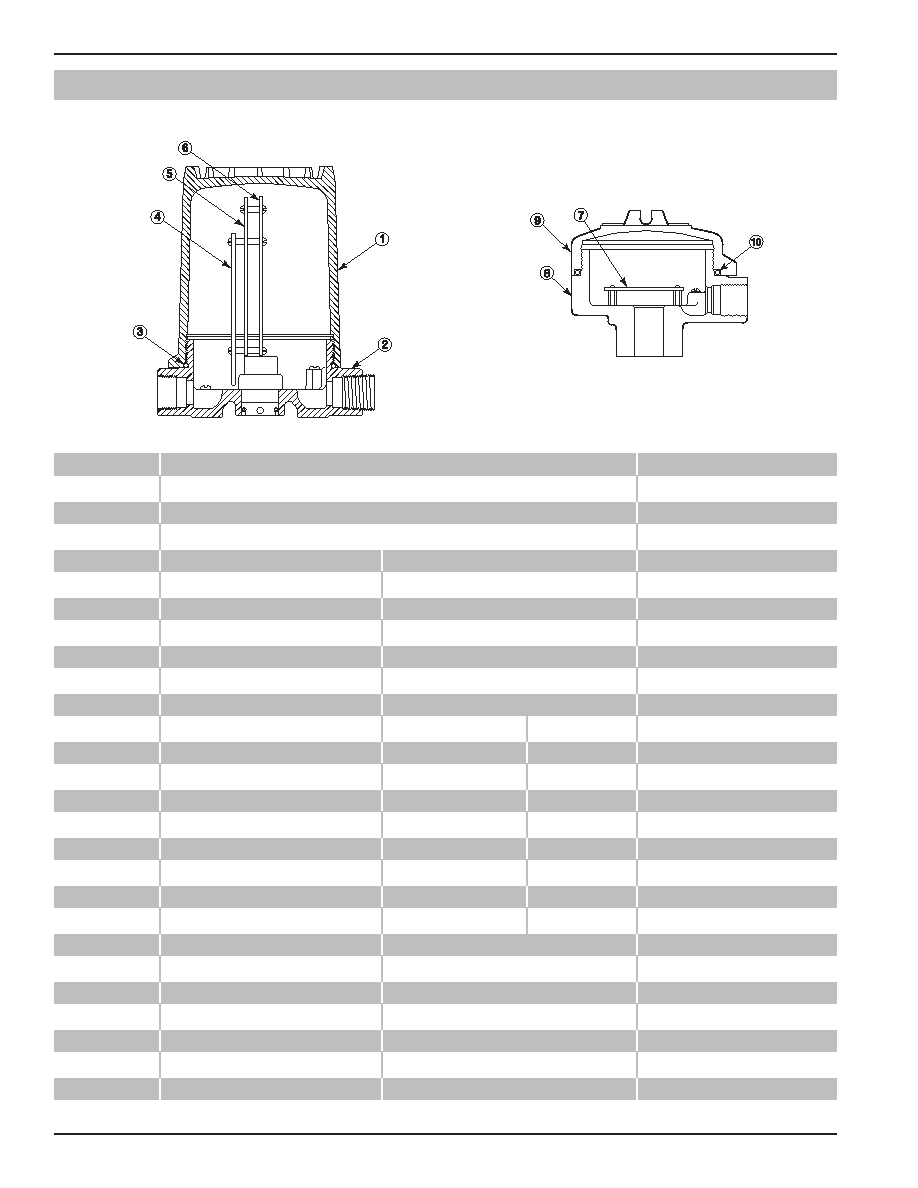

50-604 Kotron Model 804 Sentinel II RF Level Transmitter
27
3.4
Replacement Parts
Item
Description
Part Number
1
Cover
004-9174-007
2
Base
004-9188-004
3
O-Ring
012-2201-253
4
Daughterboard
Integral
Z30-2213-001
Integral I.S.
Z30-2213-002
Remote
Z30-2213-003
Remote I.S.
Z30-2213-004
5
Logic board
4–20
Z30-2211-001
RS-485
Z30-2211-002
4–20/RS-485
Z30-2211-003
6
Power supply board
120 VAC
0 relays
Z30-2212-003
2 relays
Z30-2212-002
4 relays
Z30-2212-001
240 VAC
0 relays
Z30-2212-006
2 relays
Z30-2212-005
4 relays
Z30-2212-004
24 VDC
0 relays
Z30-2212-009
2 relays
Z30-2212-008
4 relays
Z30-2212-007
7
KISO board
Explosion proof
Z30-2411-002
Intrinsically safe
Z30-9005-001
8
Remote housing base
Aluminum
004-9104-001
316 SS
004-9140-001
9
Remote housing cover
Aluminum
004-9105-001
316 SS
004-9142-001
10
Remote housing O-ring
012-2101-345
