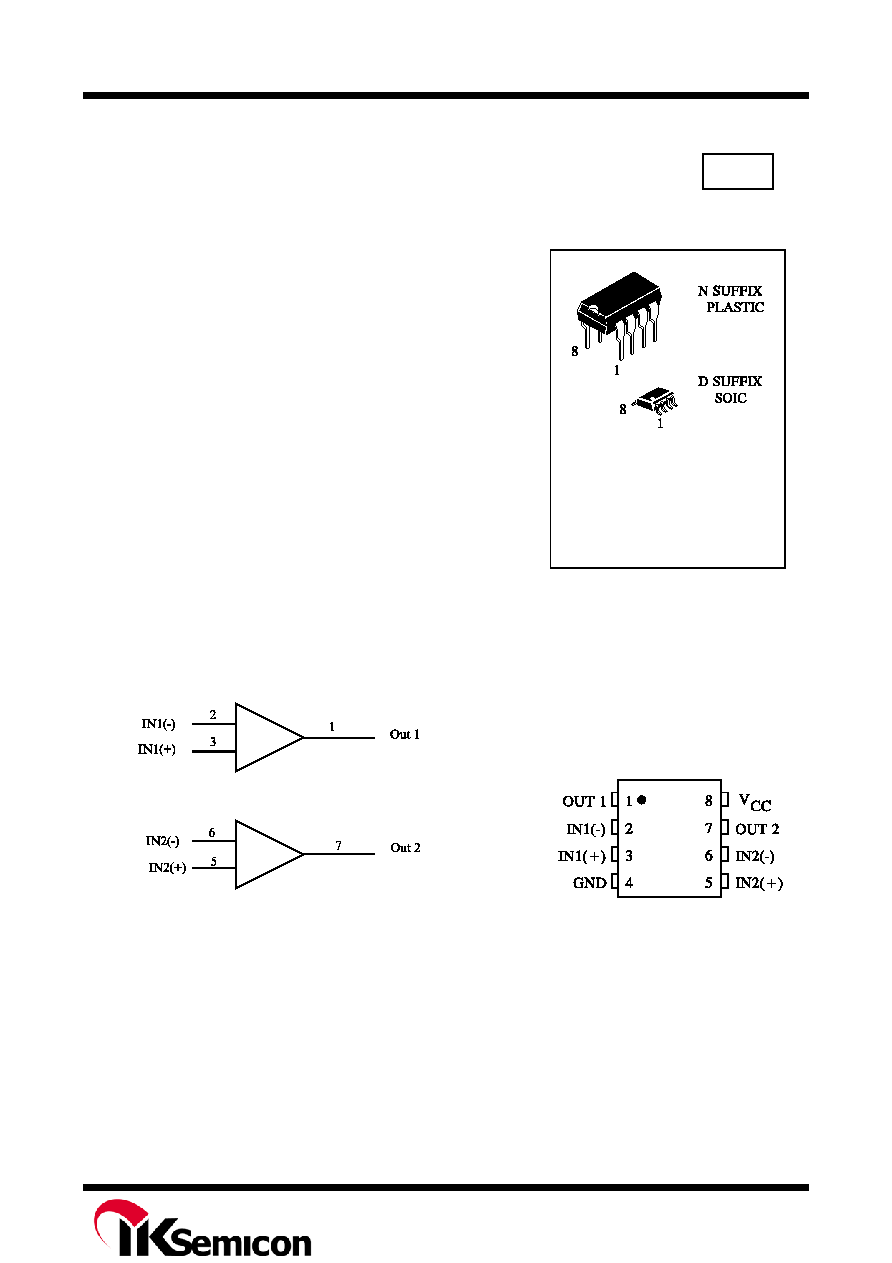

TECHNI CAL DATA

January 2011, Ver.03

Low Power Low Offset Voltage Dual

Comparators

The IL393 consists of two independent precision

voltage comparators with an offset voltage specification

as low as 2.0 mV max for two comparators which were

designed specifically to operate from a single power

supply over a wide range of voltages.

Application areas include limit comparators, simple

analog to digital converters; pulse, squarewave and

time delay generators; wide range VCO; MOS clock

timers; multivibrators and high voltage digital logic

gates.

•

Single or Split Supply Operation

•

Low Input Bias Current

•

Low Input Offset Current

•

Input Common Mode Voltage Range to Gnd

•

Low Output Saturation Voltage

•

TTL and CMOS Compatible

IL393

ORDERING INFORMATION

IL393N Plastic

IL393D SOIC

TA = -40° to 85° C for all

packages.

LOGIC DIAGRAM

PIN 8 = VCC

PIN 4 = GND

PIN ASSIGNMENT
