DocID024620 Rev 3
19/39
LED2472G
Digital blocks

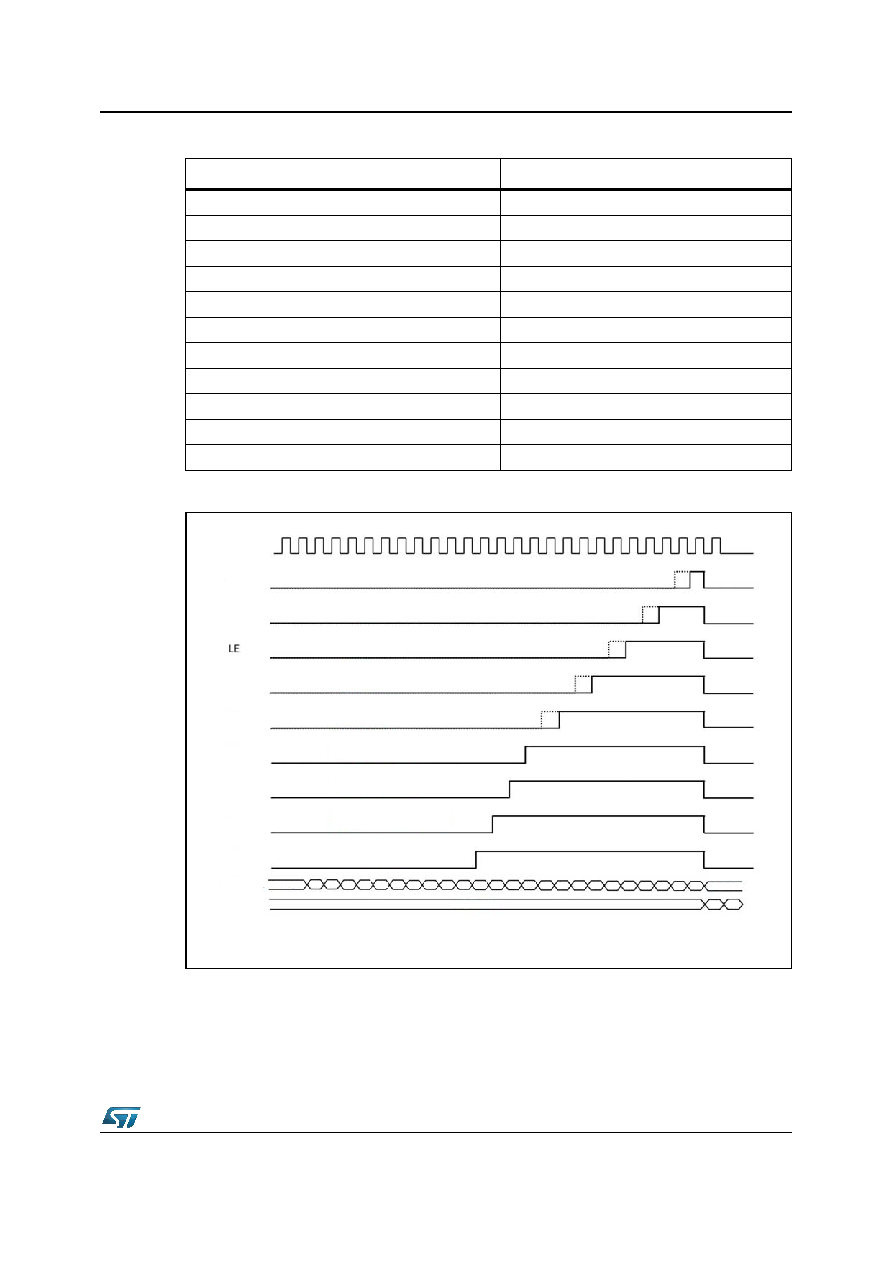

Figure 9. Digital key timing diagram
8.2
Configuration register
The configuration register is used to enable or disable some device features, to program
some parameters and to change other settings. Access to this register (read or write) is
Table 7. Digital keys summary
#CLK rising edges with the LE asserted
Description
1-2
Data latch
3-4
Write configuration register
5-6
Read configuration register
7-8
Write gain
9-10
Read gain
11
Open detection
12
Short detection
13
Open/short detection
14
Thermal alert reading
15
Reserved
16
Reserved
