Electrical characteristics

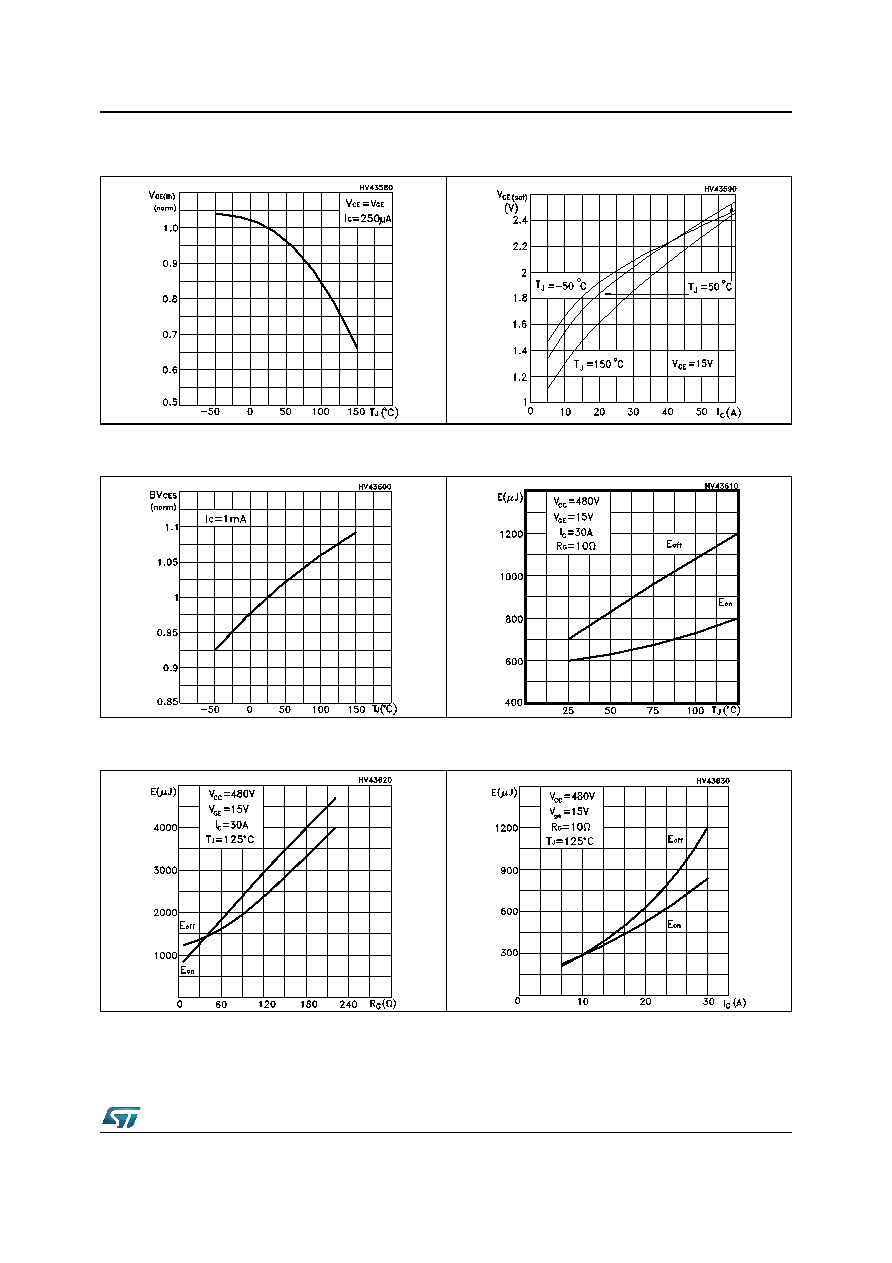

Figure 8. Normalized gate threshold voltage vs.
temperature
Figure 9. Collector-emitter on voltage vs.
collector current
Figure 10. Normalized breakdown voltage vs.
temperature
Figure 11. Switching losses vs. temperature
Figure 12. Switching losses vs. gate resistance
Figure 13. Switching losses vs. collector
current
