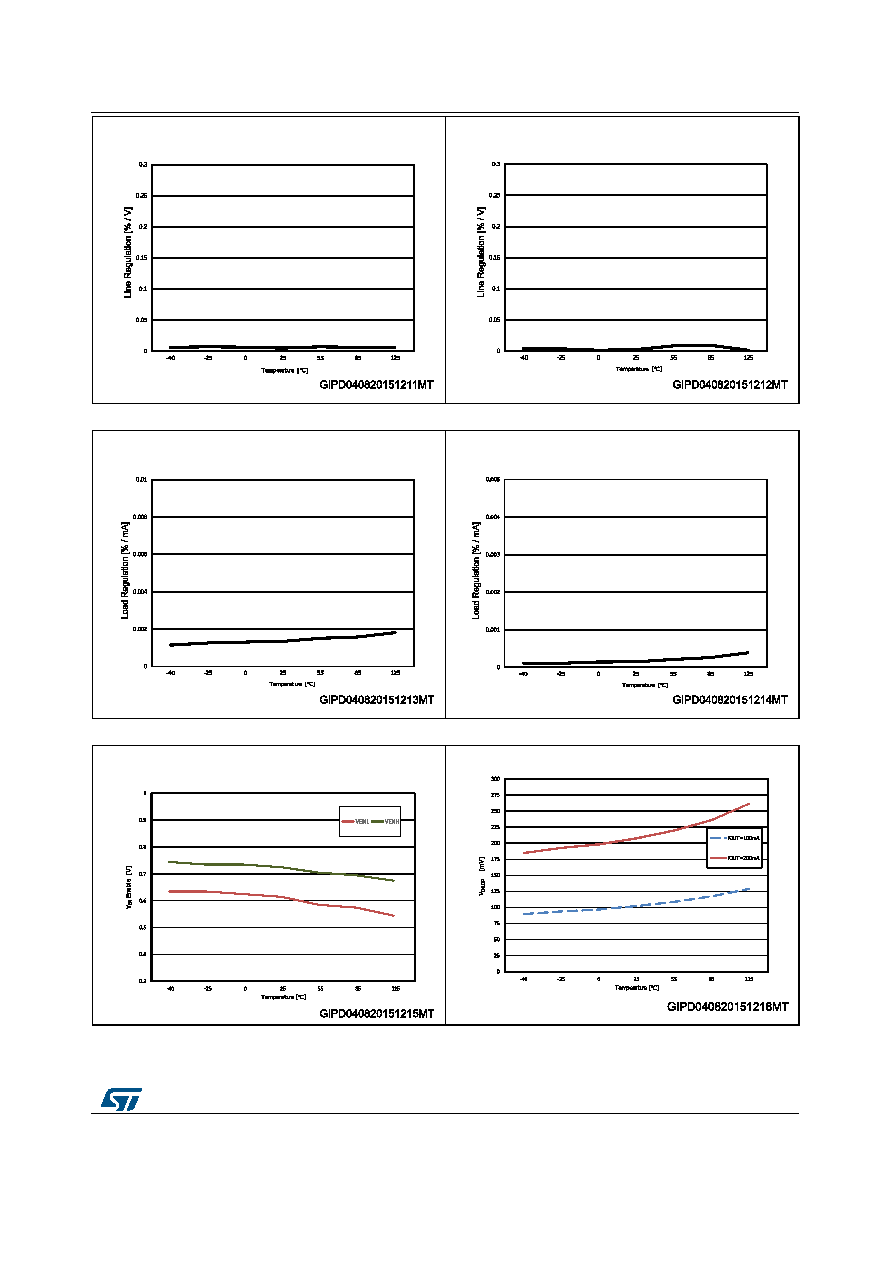

background image
LDK320
Typical characteristics
DocID028460 Rev 1
11/25
Figure 9: Line regulation vs temperature (VIN = 4.3 to
18 V, VOUT = 3.3 V, IOUT = 1 mA)
Figure 10: Line regulation vs temperature (VIN = 2.5
to 18 V, VOUT = VADJ, IOUT = 1 mA)
Figure 11: Load regulation vs temperature
(VIN = 4.3 V, VOUT = 3.3 V, IOUT = 1 to 200 mA)
Figure 12: Load regulation vs temperature
(VIN = 2.5 V, VOUT = VADJ, IOUT = 1 to 200 mA)
Figure 13: Enable thresholds vs temperature
(IOUT = 1 mA)
Figure 14: Dropout voltage vs temperature
