LDK320
Typical application
DocID028460 Rev 1
5/25
3
Typical application

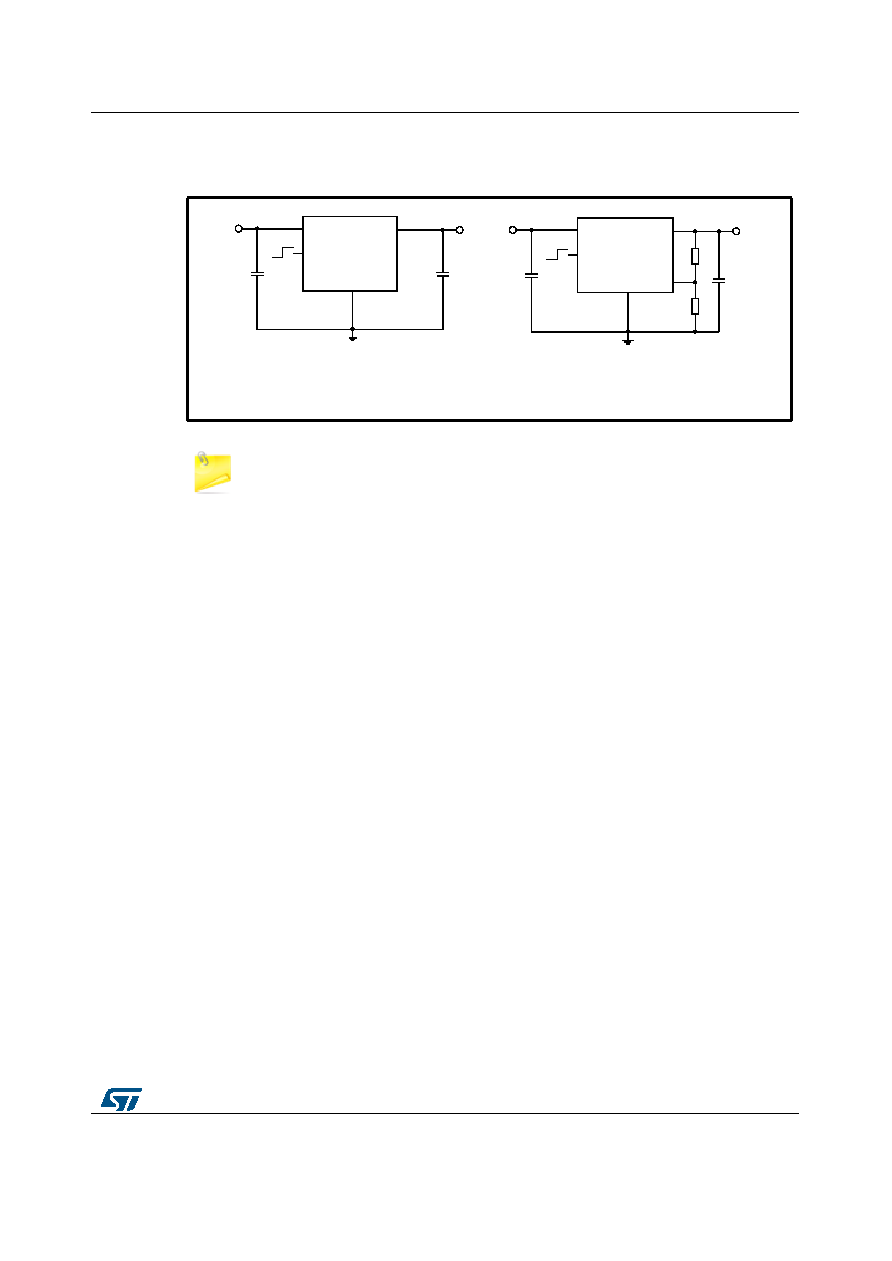

Figure 4: Typical application circuits
Adjustable version and enable pin are not available on SOT-89 package.
V
IN
G ND
V
I
E N
C
IN
V
O
V
OUT
C
OUT
L DK 320
OFF
O N
1 µ F
1 µF
1µF
1µF
V
IN
G ND
V
I
E N
C
IN
ADJ
V
O
V
OUT
C
OUT
R
1
R
2
L DK 320
O FF
O N
Fix ed output voltage vers ion
Adjustable output voltage vers ion
V O=V AD J (1+R1/R2)
GIPD030820151358MT
