LM20154
SNVS531G – OCTOBER 2007 – REVISED MARCH 2013
www.ti.com

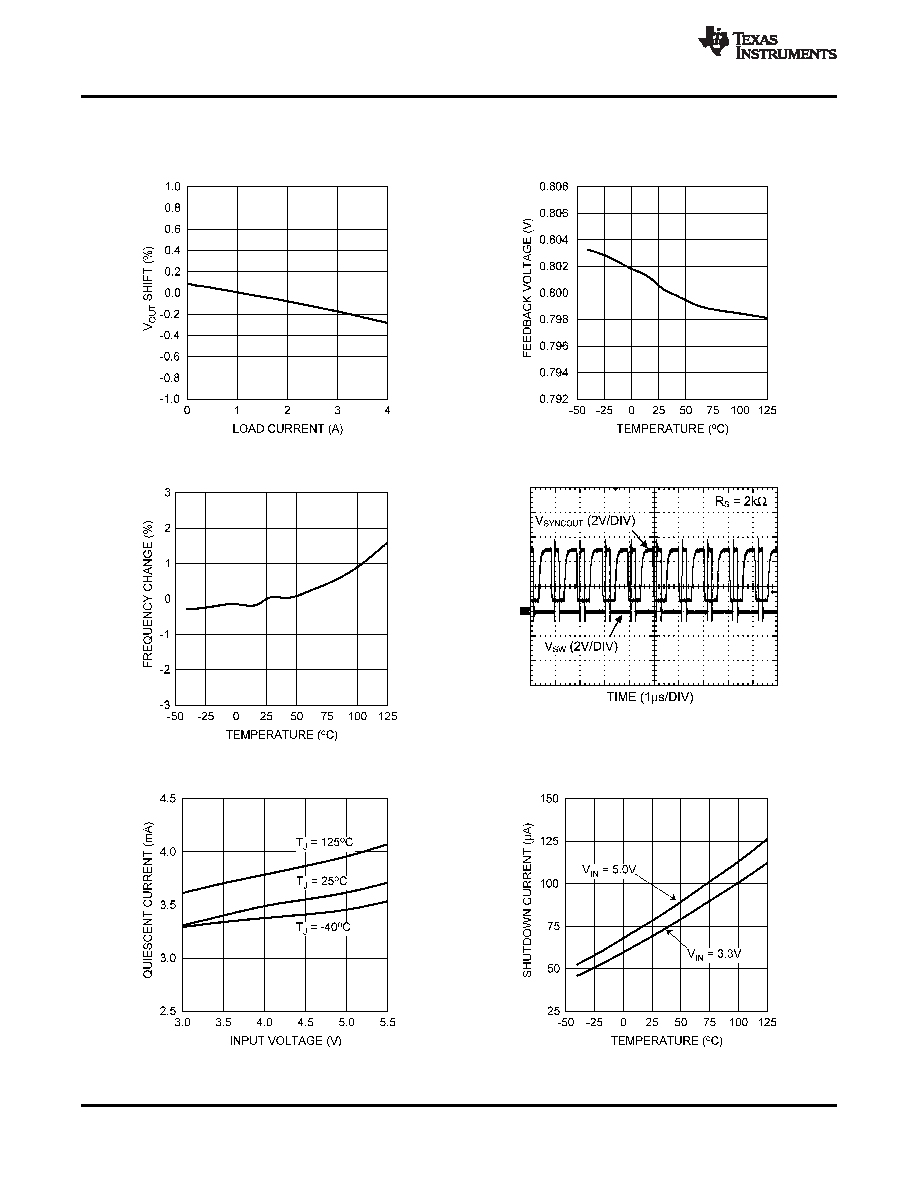

TYPICAL PERFORMANCE CHARACTERISTICS (continued)
Unless otherwise specified: CIN = COUT = 100 µF, L = 1.0 µH (Coilcraft MSS1038), VIN = 5V, VOUT = 1.2V, RLOAD = 1.2Ω, TA =
25°C for efficiency curves, loop gain plots and waveforms, and TJ = 25°C for all others.
Load Regulation
Feedback Pin Voltage vs. Temperature
Figure 8.
Figure 9.
Switching Frequency vs. Temperature
Synchronization Output
Figure 10.
Figure 11.
Quiescent Current vs. VIN (Not Switching)
Shutdown Current vs. Temperature
Figure 12.
Figure 13.
6
Submit Documentation Feedback
Copyright © 2007–2013, Texas Instruments Incorporated
Product Folder Links: LM20154
