DocID027290 Rev 1
23/34
AN4635
Power consumption comparison
33

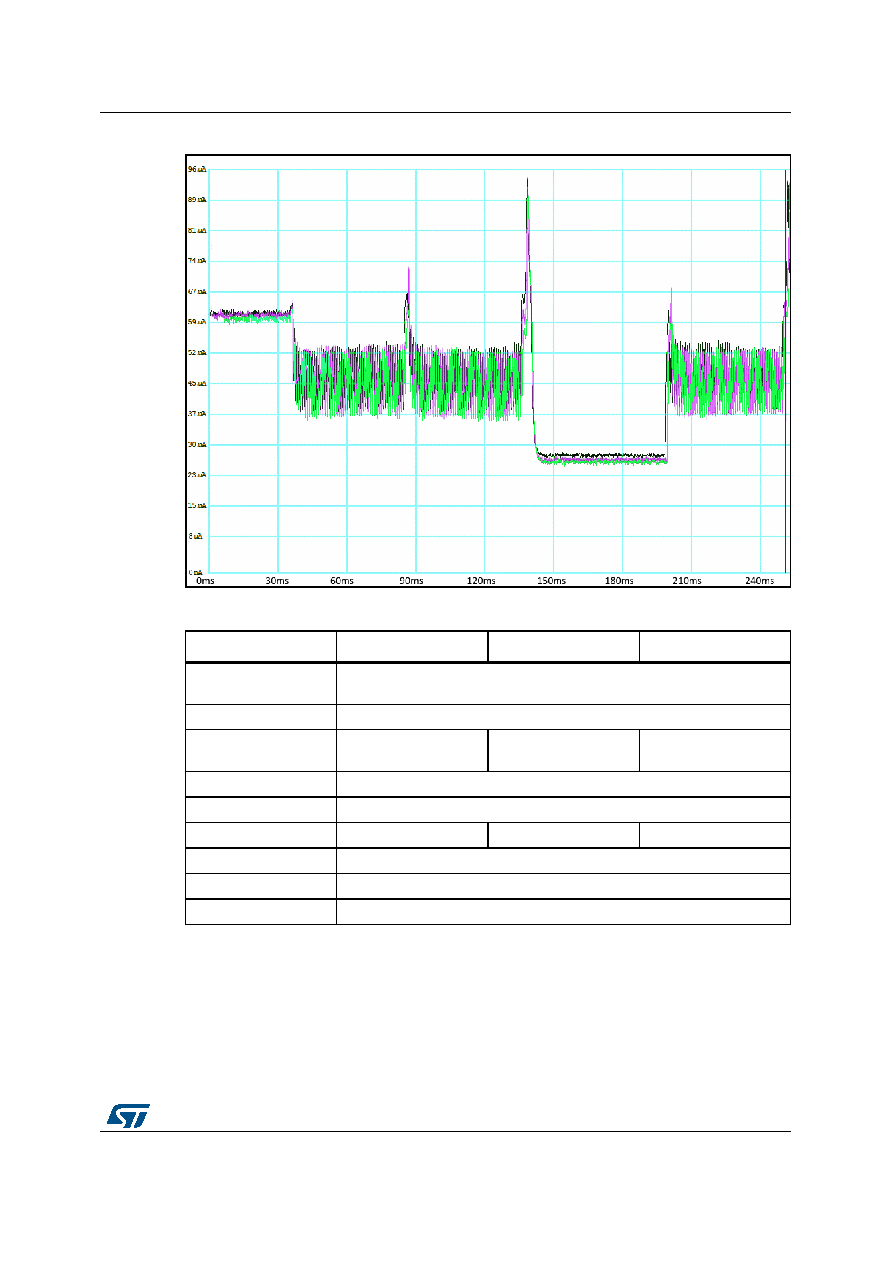

Figure 8. Three different settings of peripheral clock divider
The power trace of the DMA operated example is different from the interrupt or blocking
mode code execution. There is a peak in half of the transmission, caused by the half
message interrupt. Then for half of the reply data reception the core stays in Sleep mode, it
is only active during the second half. Different arrangement is of course possible.
Table 10. Configurations - Clock divider
Curve in Figure 8
Black
Purple
Green
Idle mode between
transmissions
Stop
JTAG interface
OFF
Current average
over phases 2, 3 and 4
9.42 µA
9.16 µA
9.08 µA
Clock
250 kHz MSI
Voltage regulator
Range 3
AHB/APB ratio
1/1
1/4
1/8
ULP/FWU
+/+
Baud rate
9600
SW used
DMA operation (Com DMA)
