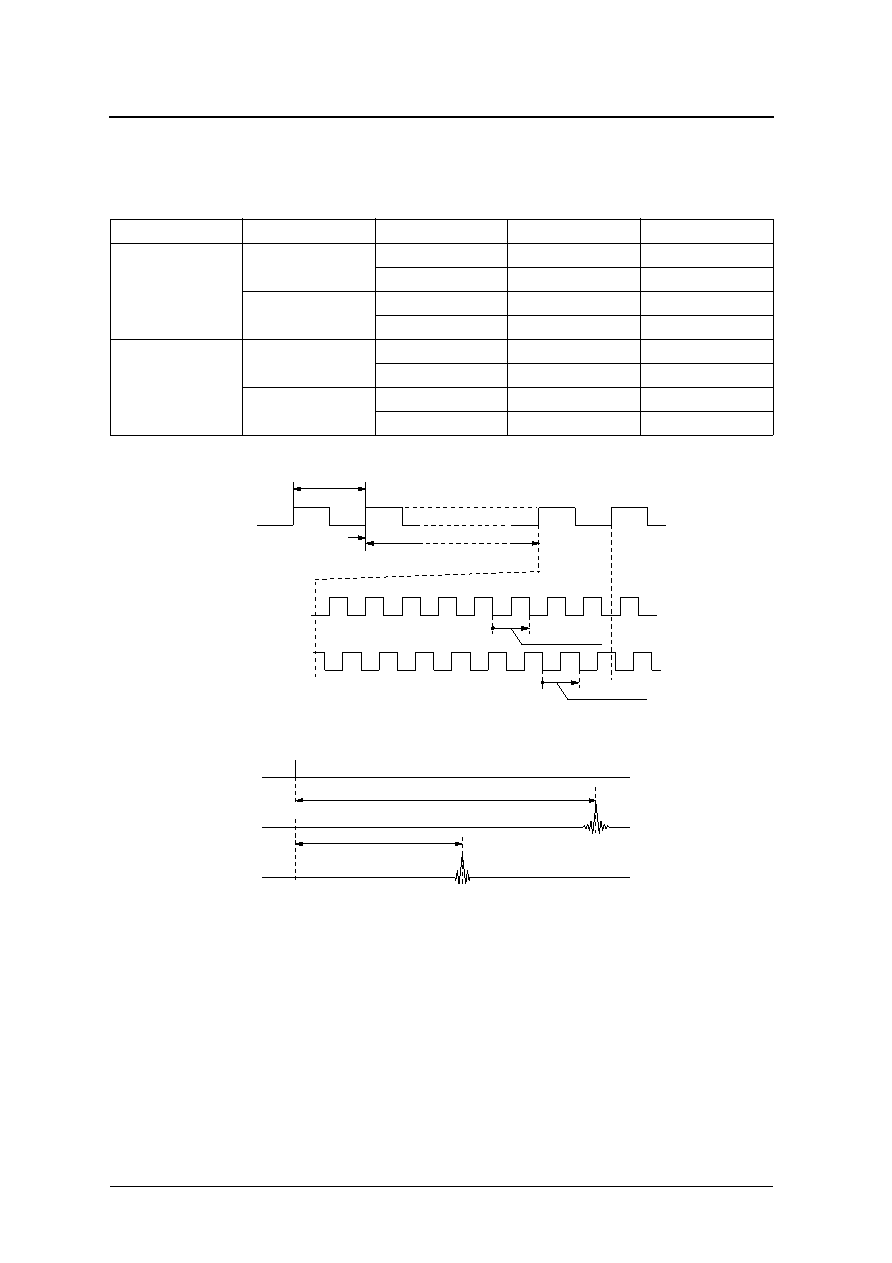

21 / 24 page  SM5843A ×1 NIPPON PRECISION CIRCUITS—21 Data Input to Output Delay Timing This is the digital filter arithmetic computation time from the completion of data input at rate fs (tINPUT) on the rising edge of LRCI to the start of data output at rate 8fs (tOUTPUT) on the falling edge of WCKO. Filter response CKSLN SYNCN Mode tOUTPUT − tINPUT Filter response 1 LOW (256fs) LOW After reset + sync mode 44.625/fs HIGH Jitter-free mode 44.25/fs − 45.0/fs HIGH (384fs) LOW After reset + sync mode 44.75/fs HIGH Jitter-free mode 44.375/fs − 45.125/fs Filter response 2 LOW (256fs) LOW After reset + sync mode 25.625/fs HIGH Jitter-free mode 25.25/fs − 26.0/fs HIGH (384fs) LOW After reset + sync mode 25.75/fs HIGH Jitter-free mode 25.375/fs − 26.125/fs Figure 12. Delay timing (SYNCN = LOW) Figure 13. Delay timing (SYNCN = CKSLN = LOW) 44/fs(Filter Response 1) 25/fs(Filter Response 2) 1/fs Serial data Input tINPUT tOUTPUT Serial data output tOUTPUT Serial data output WCKO (256fs) WCKO (384fs) LRCI tOUTPUT tOUTPUT 44.625/fs (Filter Response 1) 25.625/fs (Filter Response 2) tINPUT tINPUT |
|
|
