STLC2410B
14/20

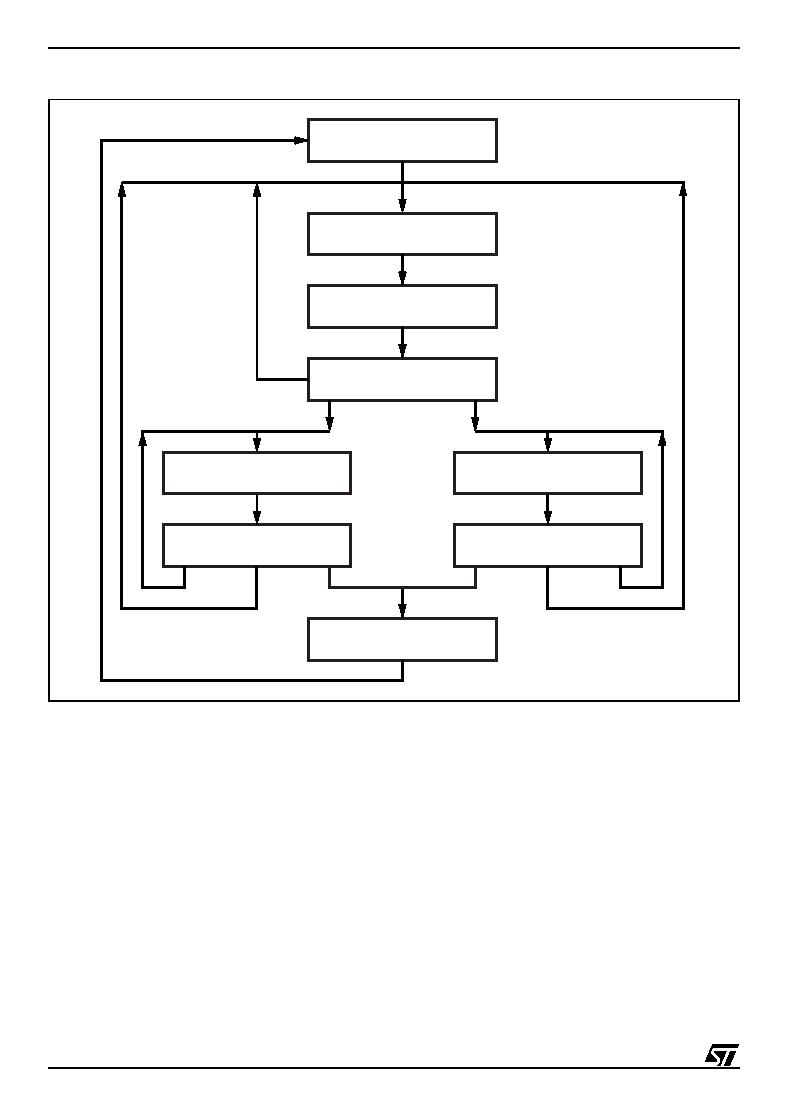

Figure 3. I2C BUS master flow diagram
7.4 USB Interface
The USB interface is compliant with the USB 2.0 full speed specification. Max throughput on the USB in-
terface is 12 Mbit/s.
Figure 4 gives an overview of the main components needed for supporting the USB interface, as specified
in the Bluetooth® Core Specification ( Part H:2). For clarity, the serial interface (including the UART Trans-
port Layer) is also shown.
IDLE
SEND START
SEND ADDR
RECEIVE
ACKNOWLEDGE
RECEIVE DATA
SEND
ACKNOWLEDGE
SEND STOP
SEND DATA
RECEIVE
ACKNOWLEDGE
STA
STA
STA
STA
RX
RX
TX
STP
STP
TX
TX DATA
RX DATA
D02TL554
