DocID026217 Rev 1
37/72
STLED524
Detailed description

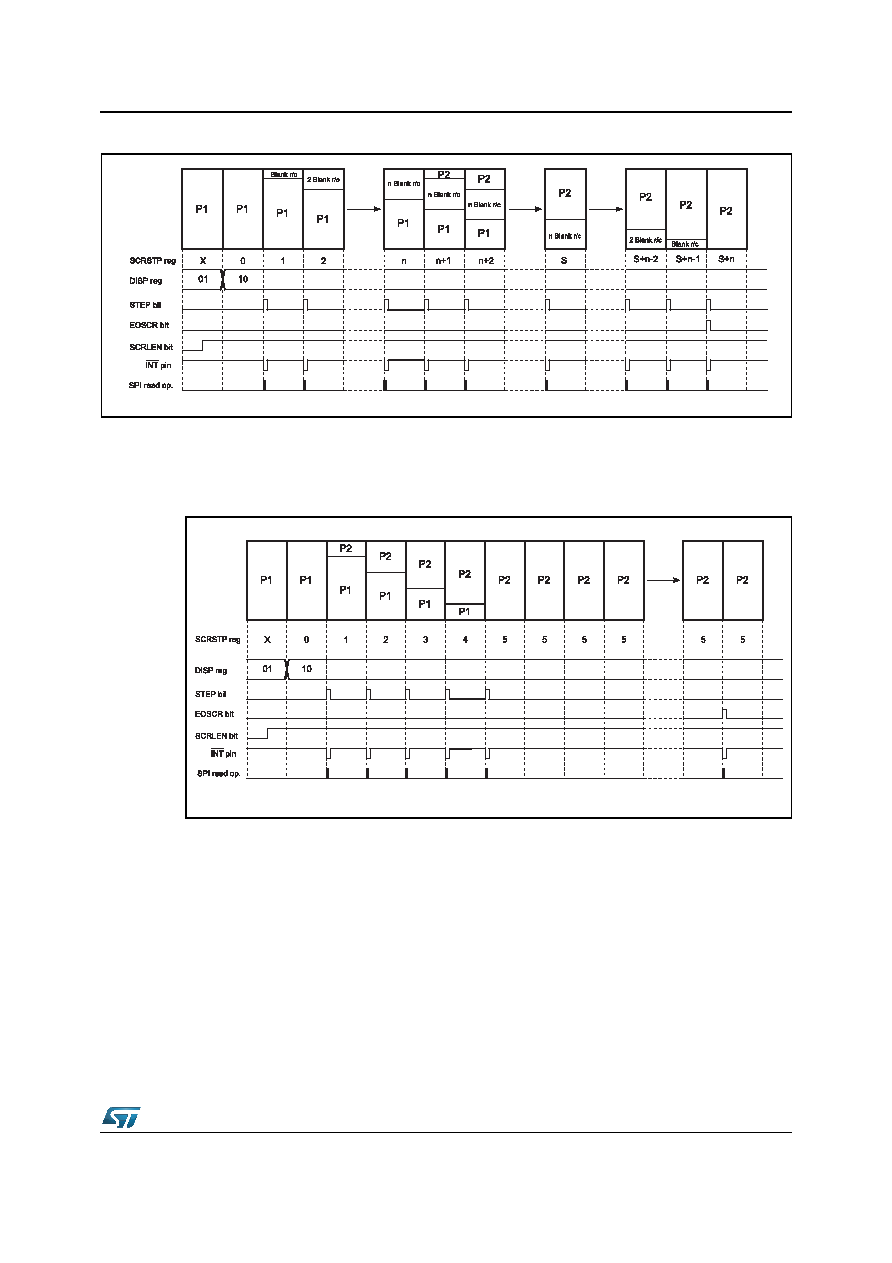

Figure 10. Scroll operation with blank row/column insertion enabled
Figure 11 shows a scroll operation example when wait cycle is enabled. When P2 pattern is
visible, the wait counter starts. EOSCR interrupt is generated, when the wait counter
reaches the value set by scroll control register 3.
Figure 11. Scroll operation with enabled wait cycle
All three examples above show the scroll operation during the which P1 pattern is replaced
by P2 pattern, but the behavior described in these examples is also valid for all other cases
stated in Table 44.
GIPG210314956LM
GIPG2103141000LM
