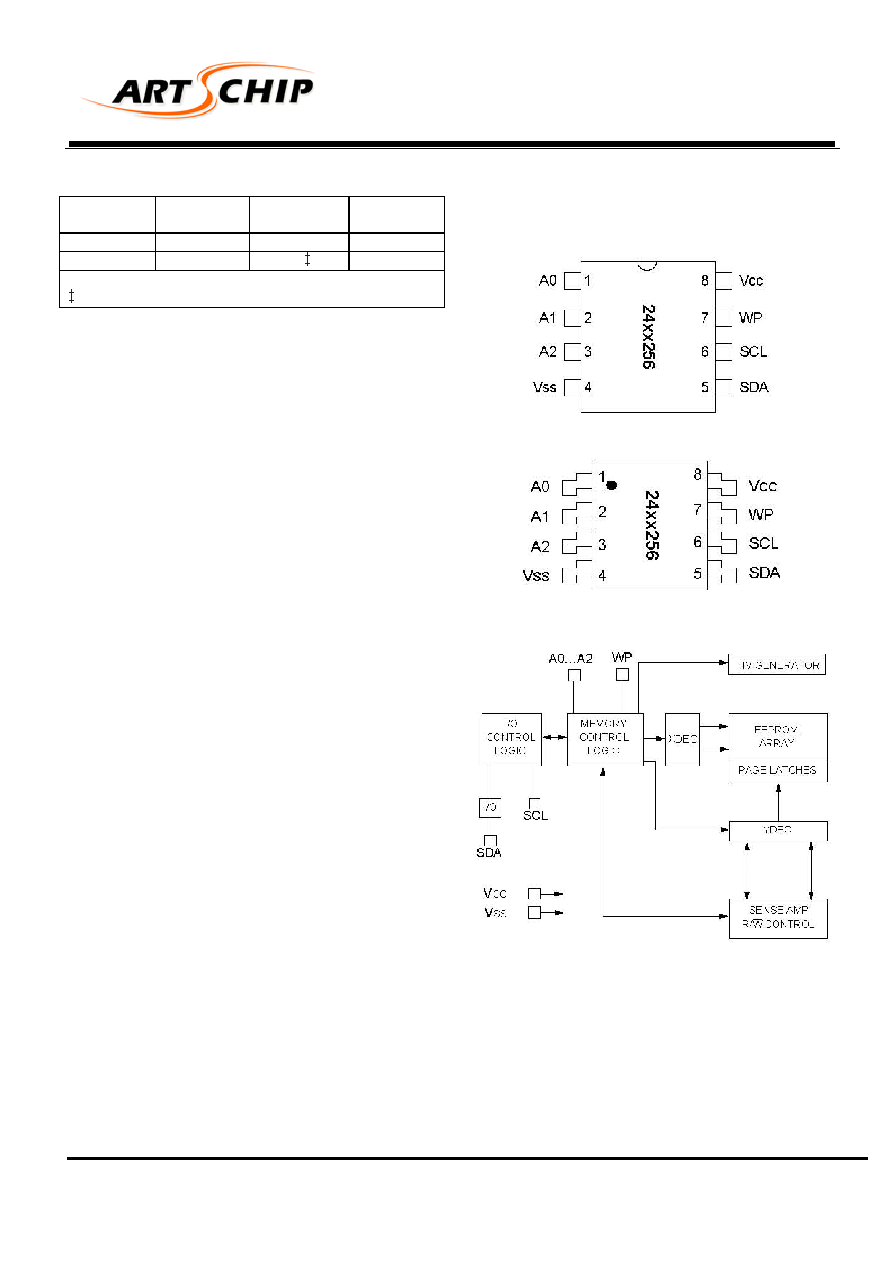

24LC256

256K I

2CTM CMOS Serial EEPROM

www.artschip.com

1

DEVICE SELECTION TABLE

Part

Number

VCC

Range

Max Clock

Frequency

Temp

Ranges

24AA256

1.8-5.5V

400kHz†

I

24LC256

1.8-5.5V

400kHz

I,E

† 100kHz for Vcc < 2.5V.

100kHz for E temperature range.

FEATURES

Low power CMOS technology

-Maximum write current 3mA at 5.5V

-Maximum read current 400µA at 5.5V

-Standby current 100nA typical at 5.5V

2-wire serial interface bus, I

2C compatible

Cascadable for up to eight devices

Self-timed ERASE/WRITE cycle

64-byte page-write mode available

5 ms max write-cycle time

Hardware write protect for entire array

Schmitt trigger inputs for noise suppression

100,000 erase/write cycles guaranteed

Electrostatic discharge protection > 4000V

Data retention > 200 years

8-pin PDIP and SOIC (208 mil) packages

Temperature ranges:

-Industrial (I): -40℃ to +85℃

-Automotive (E): -40℃ to +125℃

DESCRIPTION

The Artschip technology Inc. 24AA256/24LC256 (24xx256*) is

a 32K x 8 (256k bit) Serial Electrically Erasable PROM,

capable of operation across a broad voltage range (1.8V to

5.5V). it has been developed for advanced, low power

applications such as personal communications or data

acquisition. This device also has a page-write capability of up

to 64 bytes of data. This device is capable of both random and

sequential reads up to the 256k boundary. Functional address

lines allow up to eight devices on the same bus, for up to 2

Mbit address space. This device is available in the standard

8-pin plastic DIP, and 8-pin SOIC (208 mil) packages.

PACKAGE TYPE

PDIP

SOIC

BLOCK DIAGRAM
