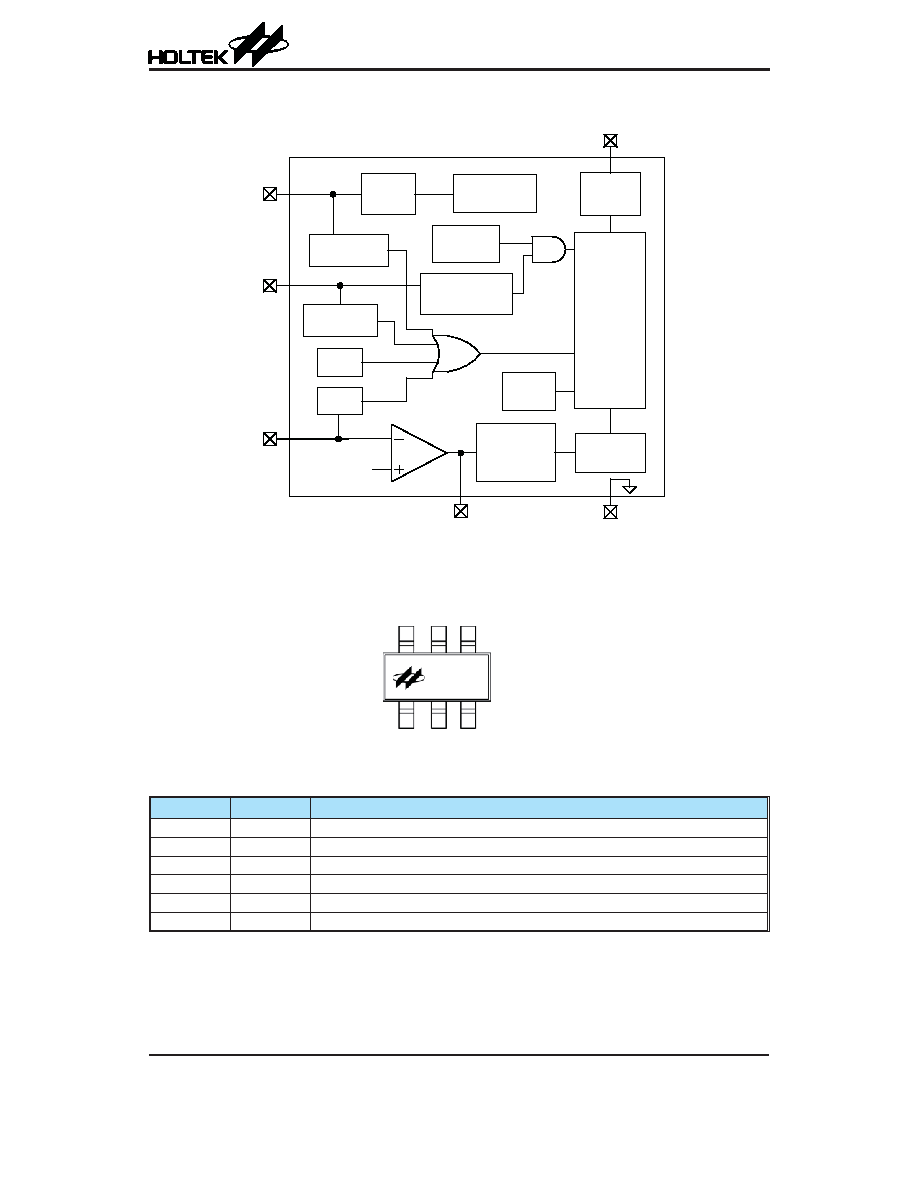

2 / 12 page ![]() Rev. 1.30 2 June 26, 2015 HT7L4811 Block Diagram 0.2V CS COMP ZCD Starter Min Off Time DRV EA PWM Generator OCP ZCD Comparator UVLO VCC Reference & Bias ZCD OVP OTP Logic Control Driver LEB GND VCC OVP Pin Assignment COMP CS ZCD DRV GND Top View SOT23-6 VCC L4811 Pin Description Pin No. Symbol Description 1 VCC Power supply pin 2 GND Ground pin 3 DRV Gate drive output for driving external power MOSFETs 4 ZCD Zero-current detect pin 5 CS Current sense pin. A resistor is connected to sense the MOSFET current. 6 COMP Loop compensation pin. A capacitor is placed between COMP and GND. |
|
|
