ADL5385

Data Sheet

Rev. D | Page 22 of 24

Component

Description

Default Value

LO_IP SMA, R10, R11, R13,

R15, R32, R34, R43, C40, T1, T2

Single-ended LO input at LOIP.

R11, R13, R34, R43, C40 = 0 Ω,

R10, R15, R32 = open, T1, T2 = open

LO_IN SMA, R10, R11, R13, R15,

R32, R34, R43, C40, T1, T2

Optional single-ended LO input at LOIN.

R10, R11, R15, R32, R43 = 0 Ω,

R13, R34, C40 = open, T1, T2 = open

LO_IP SMA, LO_IN SMA, R10,

R11, R13, R15, R32, R34, R43,

C40, T1, T2

Optional differential LO input.

R11, R15, R32, R34, R43, C40 = 0 Ω,

R10, R13 = open, T1, T2 = open

LO_IP SMA, R10, R11, R13,

R15, R32, R34, R43, C40, T1, T2

Optional differential LO driving with balun (T1or T2) at LOIP.

R13, R34, C40 = 0 Ω,

R10, R11, R15, R32, R43 = open,

T1 = TC1-1-43A+, T2 = TC1-1-13M+

C31

AC-coupling capacitor connects ADL5385 VOUT to

RF_OUT RF connector or to ADL5601 RF input.

C31 = 0.1 μF

C47

AC-coupling capacitor connects ADL5601 RFOUT to

AMP_OUT connector.

C47 = 0.1 μF

R40

Resistor connects ADL5385 VOUT to RF_OUT SMA. To

check ADL5385 performance itself, insert a 0 Ω at R40 and

open R25. To check ADL5601 performance itself, insert a

0 Ω at R40 and be inserted 0.1 μF on R25, open C31.

R40 = open

R25

Resistor connects ADL5385 VOUT to ADL5601 RFIN.

R25 = 0 Ω

RTEMP

Resistor connects ADL5385 TEMP to TEMP test clip lead.

RTEMP = 200 Ω

DC bias inductor.

L8 = 470 nH

C3, C4, C5, C6, C8, C9, C11,

C43, C44, C45

Power supply bypassing capacitors.

C3 = 10 μF,

C4, C6, C8 = 0.1 μF, C5, C9, C11 = 100 pF,

C43 = 1 μF, C44 = 1.2 nF, C45 = 68 pF

Resistor to share power supply between the ADL5385 and

the ADL5601. To turn on the ADL5601 with the power

supply on VP1, install a 0 Ω resistor in this location.

R8 = open

ADL5385 quadrature modulator.

ADL5385

SOT-89 RF/IF gain block.

ADL5601

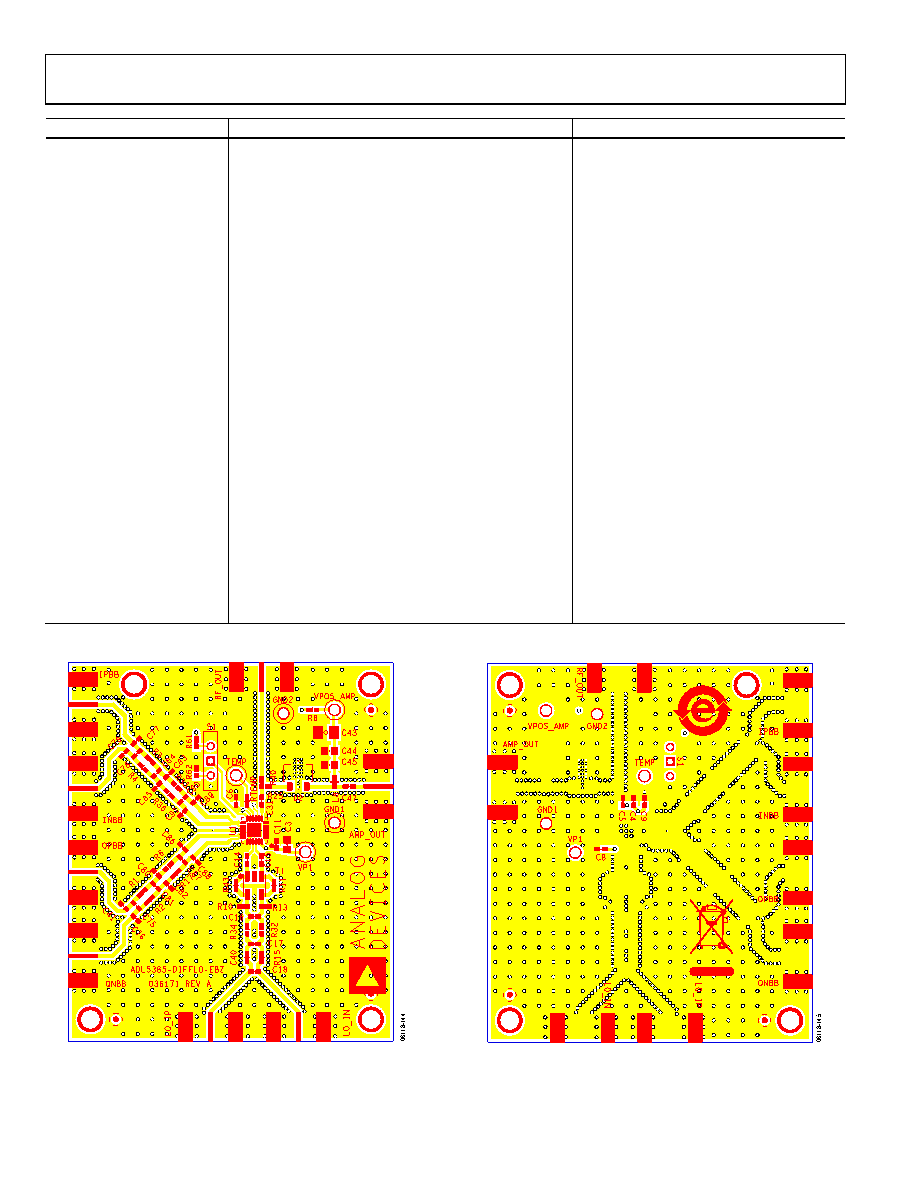

Figure 44. Layout of ADL5385-DIFFLO-EBZ, Top View

Figure 45. Layout of ADL5385-DIFFLO-EBZ, Bottom View
