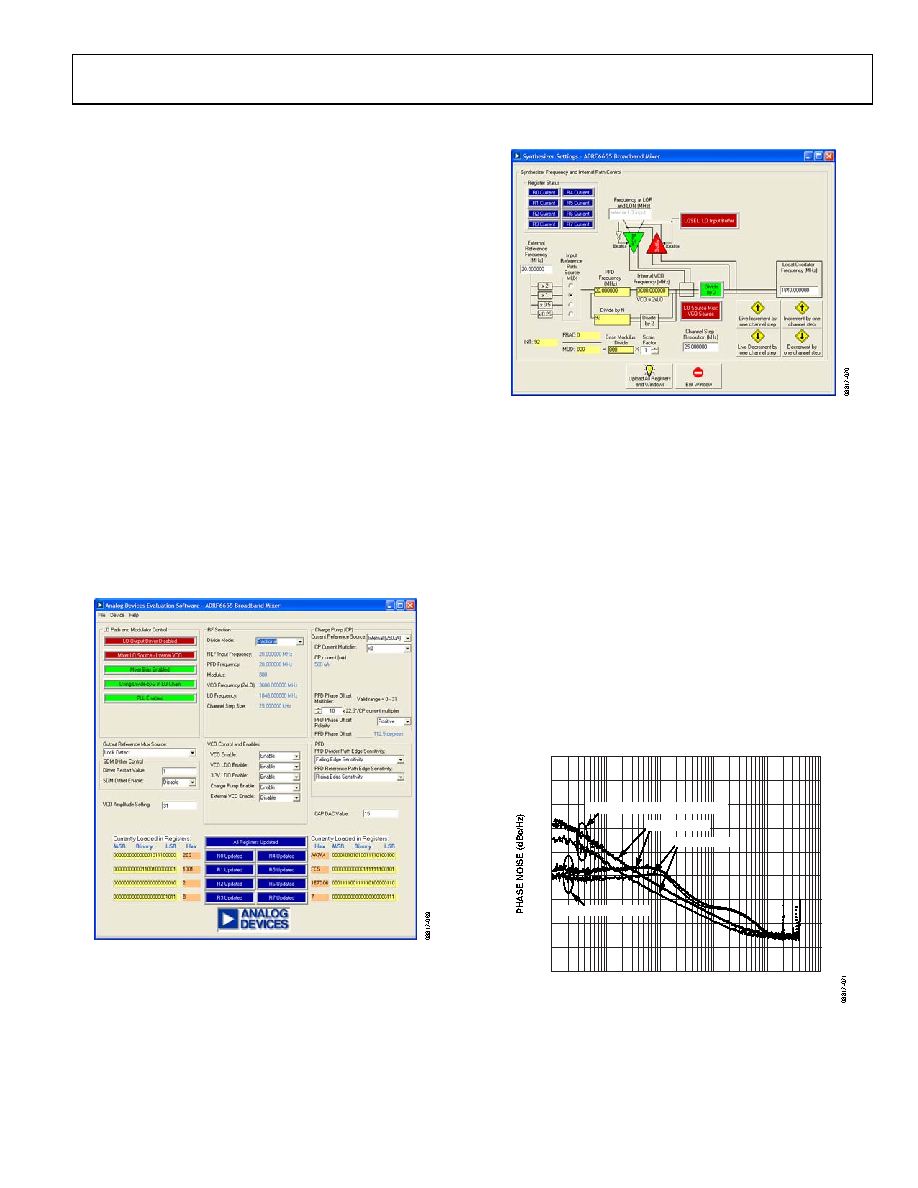

23 / 44 page  ADRF6655 Rev. 0 | Page 23 of 44 ADRF6655 CONTROL SOFTWARE The ADRF6655 can be controlled from most PCs that include a parallel port output interface. A USB adapter board is also available from Analog Devices, Inc., to allow for control from PCs that do not have an accessible parallel port. The USB adapter evaluation documentation and ordering information can be found at www.analog.com by searching for EVAL-ADF4XXXZ-USB. The basic user interfaces are depicted in Figure 66 and Figure 67. After launching the software, the user is prompted to select a device from the ADRF product family. Upon selecting the ADRF6655, the main control interface should appear as shown in Figure 66. The main control interface allows the user to configure the device for various modes of operation. The internal synthesizer is controlled by clicking on any of the numeric values listed in the RF Section . Attempting to program the REF Input Frequency, the PFD Frequency, the VCO Frequency [2×LO], or other values in the RF section launches the Synthesizer Settings— ADRF6655 Broadband Mixer control module depicted in Figure 67. From the Synthesizer Settings control interface, the user can enter the desired Local Oscillator Frequency (MHz), Channel Step Resolution (kHz) , and External Reference Frequency (MHz) . The user can also enable the LO output buffer and divider options from this menu. After setting the desired values, it is important to click Upload All Registers and Windows for the new settings to take effect. Figure 66. ADRF6655 Software Control Interface Figure 67. ADRF6655 Synthesizer Settings User Interface PLL LOOP FILTER DESIGN Designing the external loop filter, which connects between the charge pump output and VCO tuning control pin, is easy with the help of ADIsimPLL. ADIsimPLL is a free software application available from Analog Devices for designing PLL loop filters. Several passive filter topologies are support in ADIsimPLL along with the necessary component placements on the evaluation board. When designing a PLL loop filter, it is important to consider settling time and phase noise requirements. Figure 68 provides measured phase noise performance for a typical fast and slow loop filter design. Note that the wider loop filter offers better close-in phase noise but degraded phase noise at greater offset frequencies. The narrow 1.5 kHz loop filter design provides the best phase noise at 100 kHz and 1 MHz carrier offsets but with the penalty of decreased frequency settling time and poorer close-in performance. –180 –160 –140 –120 –100 –80 –60 –40 –20 0 1k 10k 100k 1M 10M 100M OFFSET FREQUENCY (Hz) ADRF6655 1.5kHz LOOP FILTER 67kHz LOOP FILTER LO = 1100Hz LO = 2275MHz Figure 68. Phase Noise with Different Loop Filters |
|
